 Posted - December 11 2011 : 3:39:42 PM
|

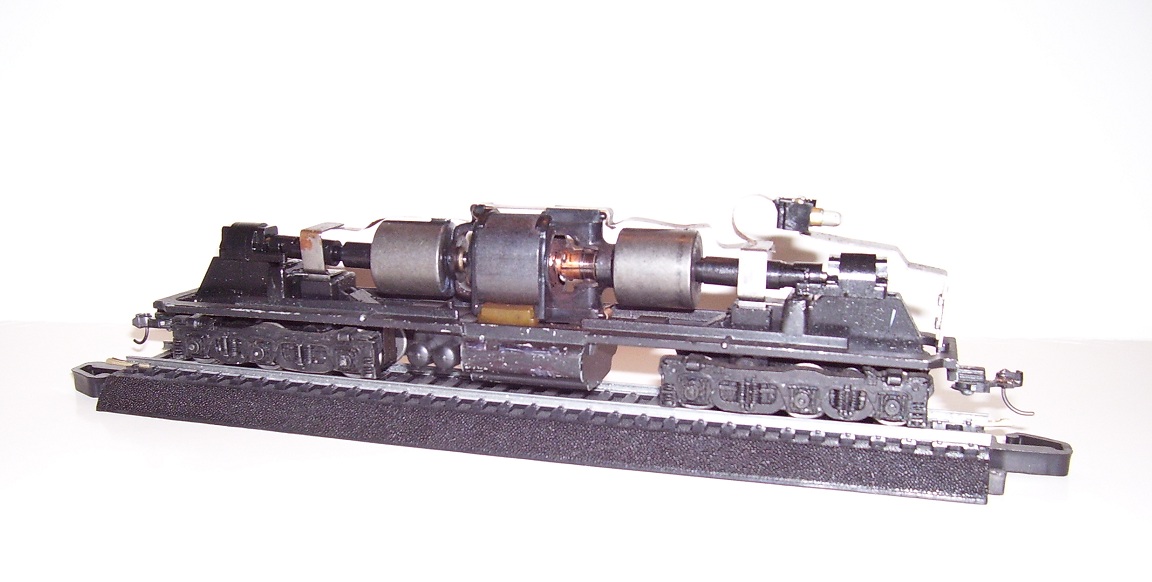

I posted the loco with the shell on in LotW but I thought the old motor and the huge flywheeles were interesting.
Alco Fan
|
Country:  USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - December 11 2011 : 4:16:45 PM
|

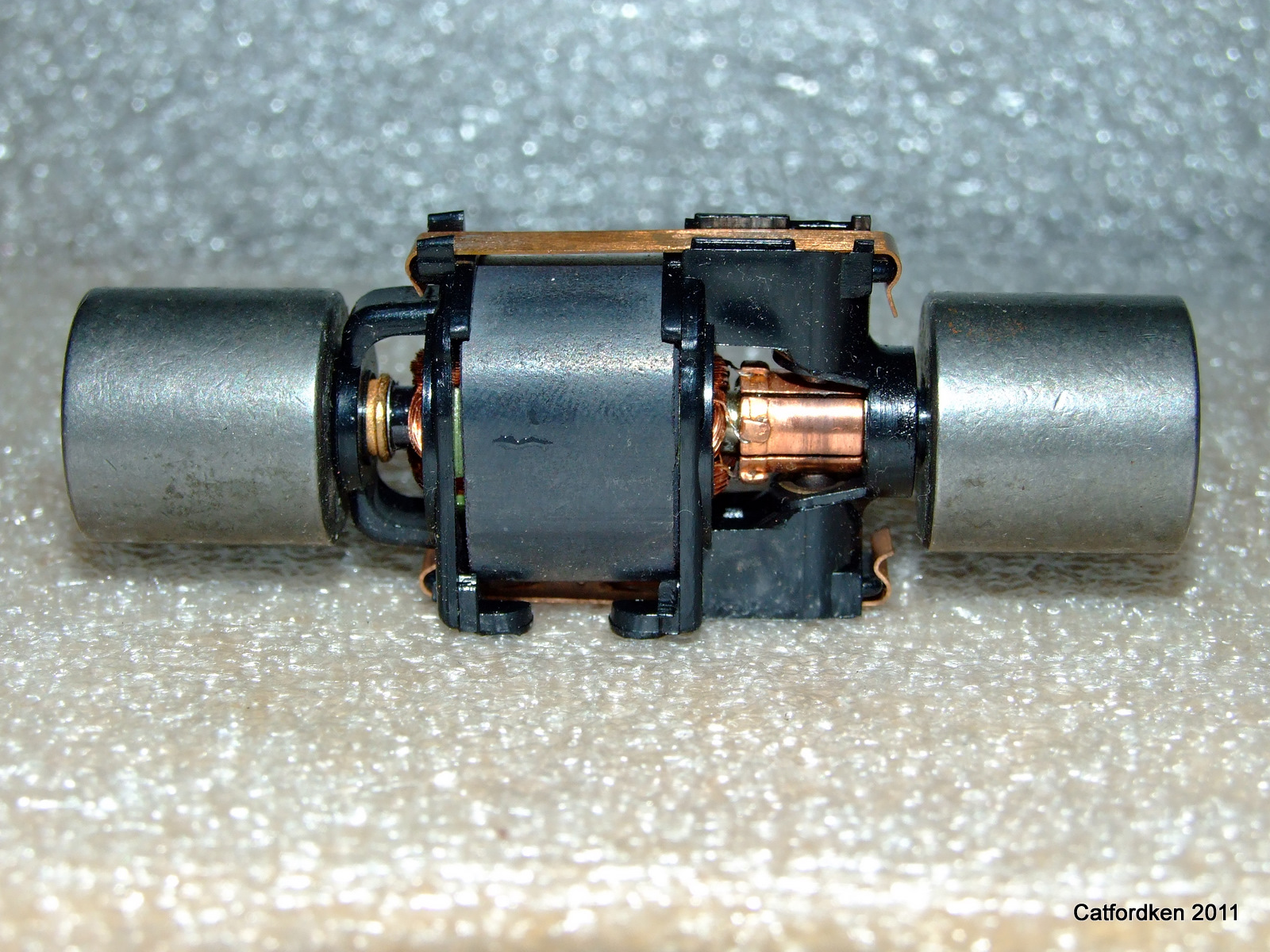

they are fair motors,but later version is much smoother in my opinion,i took this one out of a pa1 it was very stiff, ken
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - December 11 2011 : 7:49:10 PM
|
If I wanted to get better electrical pick-up how do I solder wires to the trucks. It ran good at the shop but is erratic on the layout
Alco Fan
|
|
Country: USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - December 11 2011 : 7:55:57 PM
|
hi i always follow this guide ken
http://www.mcor-nmra.org/Publications/Articles/Athearn_TuneUp.html
only use this diagram with above link
/tyco/forum/uploaded/catfordken/20111211195807_AthearnTuneUp023.gif
Edited by - catfordken on December 11 2011 8:16:52 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - December 11 2011 : 8:28:39 PM
|
I will say that the gold can motors from the 70's are better then the solid magent motor. Or try a A-Line motor.The gold can motor should easily adapt. After the wiring job is done, better lighting and DCC is plausible. Model Railroader had an article in the DCC Corner talking of this new wiring schematic, adding LED's with a custom made light holder and adding a DCC chip.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: December 13 2025
|
Alert Moderator
|
|
|
|
Posted - December 11 2011 : 8:54:43 PM
|
Before I checked back I soldered one wire to the front truck tower lead and one from the same point to the rear one. It worked right away but stalled and the short indicator came on.
Ken and Justin thanks for your help.
The original Athearn conntact runs from the top of the motor to the front and rear trucks. I see the diagram but wonder why the 2 wire method won't work too?
What am I missing in my thinking?
Alco Fan
Edited by - Alco Fan on December 12 2011 8:02:32 PM
|
|
