 Posted - October 05 2011 : 7:43:09 PM
|
Hi All,

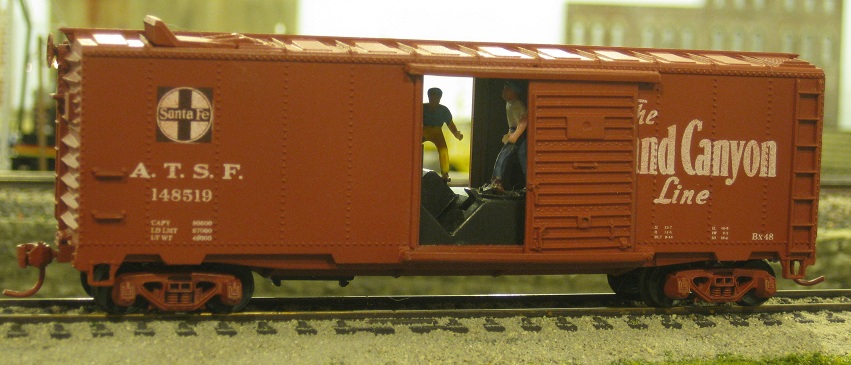

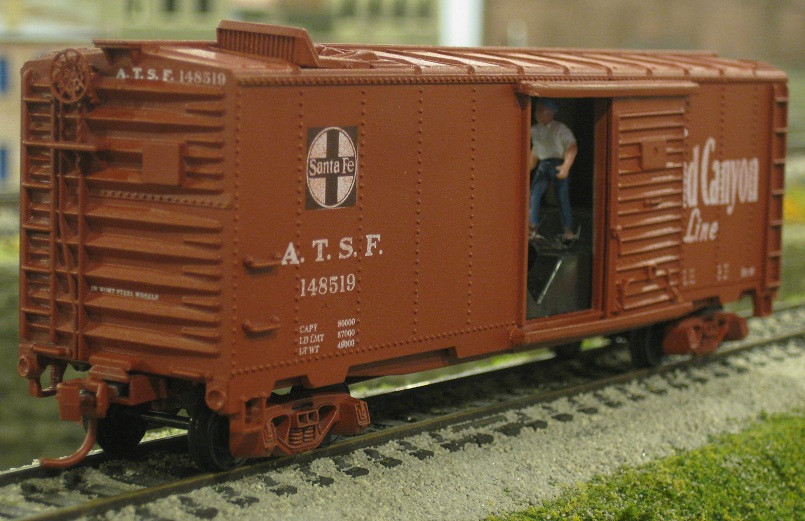

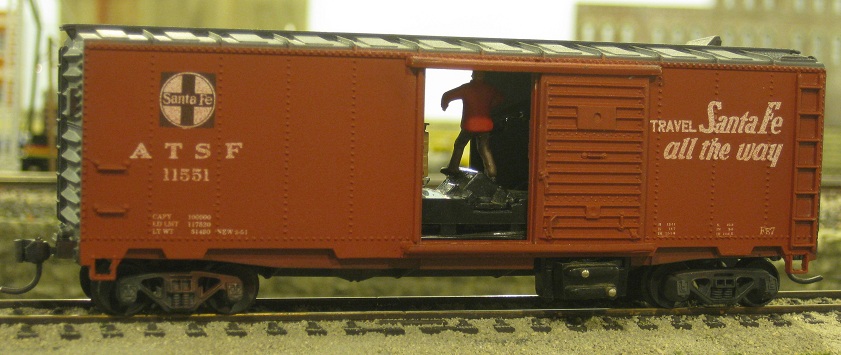

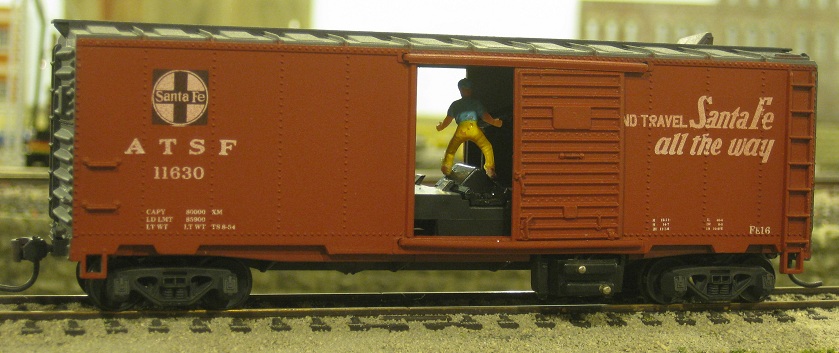

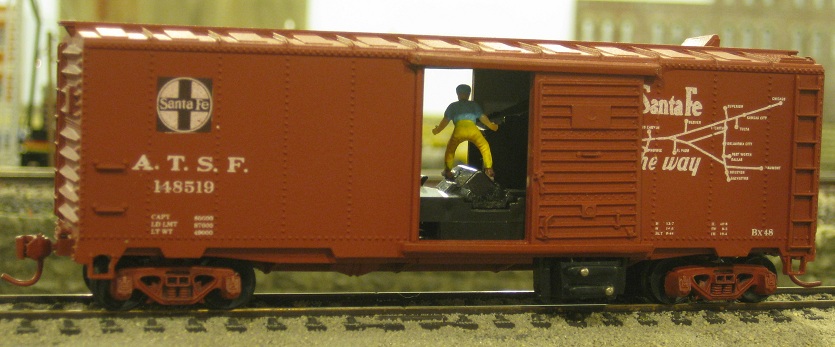

I just finished repainting these Tyco Operating box cars for the Santa Fe. To decorate these cars I used Acuflex Paint, Microscale Decals, and Ajax style brake wheels from Kadee. The mechanisms in two of the cars kept sticking so I removed the swiveling figure to improve operating reliability, in the figures place I installed crate stacks. As you all probably know, Tyco had the doors of these cars glued open at the factory causing crazed plastic behind the doors. To fix this damage I used an X-acto chisel blade and some plastic putty to smooth out the pitting left by the glue. Finally I used small drill bits to open up the stirrups on the corners of each of these cars. In the end I think this project turned out quite well, what do you think?
Proudly keeping Tyco Pluggers out of landfills since 2016
Edited by - Srenchin on October 05 2011 8:15:48 PM
|
Country:  USA ~
Posts: 820 ~
Member Since: December 26 2009 ~
Last Visit: February 25 2025
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 8:02:56 PM
|
They Look Pretty Darn Good! Well Done!
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 8:05:53 PM
|
Excellent!!! Definately a first. I've always liked that set of Santa Fe. Athearn had a release of those. Very cool.
Did you paint right over them or strip them down?
|
|
Country: USA ~
Posts: 1327 ~
Member Since: October 30 2005 ~
Last Visit: March 16 2025
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 8:16:04 PM
|
Excellent paint and decal work, looks flawless. I've never painted any rolling stock other than a few cabooses and this is a clever idea.
Alco Fan
|
|
Country: USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: September 17 2024
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 8:24:42 PM
|
Great job! I like that you put extra crates in the car.
- Thomas
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: March 24 2025
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 8:29:32 PM
|
Oh, I forgot to write about the paint prep work. sorry. I did strip these cars of there original paint and lettering. If I had not, the original lettering would show through the new paint. To clean the shells I used Scalecoat Paint Stripper, this stuff works really fast and does not attack the plastic. To help the process along I gently scrubbed the cars with old toothbrushes and Q-Tips until most of the paint was gone. As I stripped the paint I discovered that three of the cars were made from white plastic and two from red plastic, so after washing the shells in warm soap and water I sprayed the cars with Acuflex primer paint so that I could start with the same base color for all five shells.
Scott
Proudly keeping Tyco Pluggers out of landfills since 2016
|
|
Country: USA ~
Posts: 820 ~
Member Since: December 26 2009 ~
Last Visit: February 25 2025
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 8:42:22 PM
|
FLAWLESS. VICTORY.
Excellent work. This is another one of the many Tyco exclusives that I've often wondered about not being ever released in other roadnames; can only imagine "what if". I've even thought about cutting a hole in other pre-decorated shells and swapping the hatch over.
I love the pitting and marks left on the panels where the doors used to be glued; it's not unheard of to see similar damage in real life and it could pass for a fair bit of weathering and or shop repairs.
Good tip on drilling out the stirrups too. I have used sharpies to blacken the fill since I'm otherwise lazy when it comes to these.
Now you need to add the standard ATSF 40' release to "complete the set" ;)
|
|
Country: USA ~
Posts: 2798 ~
Member Since: September 17 2010 ~
Last Visit: July 22 2015
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 9:27:21 PM
|
I agree that the glue crazing on the car shells looks a like door scuff damage as seen on prototype cars. My main goal with the car body work was to make the crazing look less like melted plastic and more like dented and pitted steel. If you look closely at my pictures you can see the effect on my cars. My plan is to eventually weather these cars to enhance the beat up look, but for now I am going to enjoy these cars as they look now.
Proudly keeping Tyco Pluggers out of landfills since 2016
|
|
Country: USA ~
Posts: 820 ~
Member Since: December 26 2009 ~
Last Visit: February 25 2025
|
Alert Moderator
|
|
|
|
Posted - October 06 2011 : 12:23:50 AM
|
It looks almost real. Great job
Yardmaster 54
|
|
Country: USA ~
Posts: 277 ~
Member Since: October 01 2011 ~
Last Visit: July 29 2024
|
Alert Moderator
|
|
|
|
Posted - October 07 2011 : 7:08:25 PM
|
They look great! You did VERY nice paint and decal work
|
Country:  Canada ~
Posts: 3412 ~
Member Since: September 22 2006 ~
Last Visit: April 10 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2017 : 1:37:53 PM
|
I an selling all of these cars on eBay if anyone is interested. Bids end at 1900 hrs PST on November 5th 2017.
Click to the below link to find them....
https://www.ebay.com/sch/sren1970/m.html?_nkw=&_armrs=1&_ipg=&_from=
Proudly keeping Tyco Pluggers out of landfills since 2016
|
|
Country: USA ~
Posts: 820 ~
Member Since: December 26 2009 ~
Last Visit: February 25 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2017 : 3:16:24 PM
|
Ah, that explains why my boxcar has a crazed door, But wait, mine was Burlington, not Santa Fe.
sim-al2
Also since they cut track maintaince the trains had huge trouble making over the railroad by the end
純那
yeah
They did a Rock Island volountarily
|
|
Country: USA ~
Posts: 283 ~
Member Since: August 22 2016 ~
Last Visit: March 14 2019
|
Alert Moderator
|
|
|
|
 Posted - July 08 2022 : 03:54:55 AM
|
I enjoy my Burlington ones but this repaint project looks great.
|
|
