 Diesel Switcher gear replacement?
   All users can post NEW topics in this forum
   All users can reply to topics in this forum
 Printer Friendly
Author Previous Topic: Traction tires Topic Next Topic: tyco switches

CamdenLine
Little Six

Camden Line

Status: offline

 Posted - July 19 2010 :  11:30:14 PM Link directly to this topic  Show Profile  Add CamdenLine to Buddylist

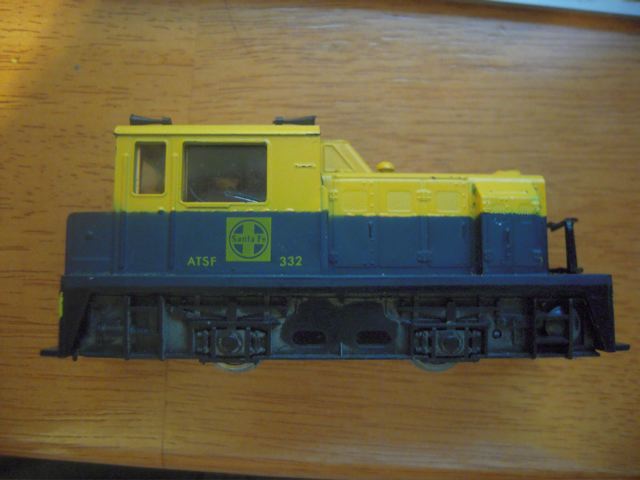

I finally found the second box of my old train stuff and was delighted to discover my little switcher. It has seen better times though. It was under eight feet of water back in the 1980s when our house was flooded. I took a look at the motor and it has rust and looks like hell but surprise surprise, it seems to run really well. Far better than the power torques in my other engines.

This one says made in Yugoslavia but there is no brand. I have seen similar if not identical ones from different companies so perhaps someone can set me straight on whether or not this is a Tyco.

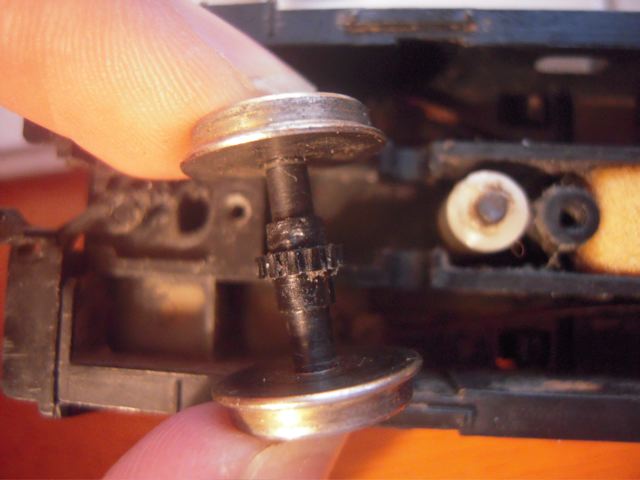

At any rate, here is the problem. The motor works, the worm gear turns but the wheels don't turn. I opened it up and it looks like the cheap plastic gears on the main axle are stripped. They no longer make contact with the worm gear.




Short of happening on another one of these at a garage sale is there a way to get a new gear on there? All I need is the axle with a working gear and I'm good to go.

~CamdenLine
 Country: USA  ~  Posts: 178  ~  Member Since: July 02 2010  ~  Last Visit: August 22 2023 Alert Moderator

AMC_Gremlin_GT
Big Boy



GremlinBL2

Status: offline

 Posted - July 20 2010 :  07:29:07 AM Link directly to this reply  Show Profile  Send AMC_Gremlin_GT an AOL message  Send AMC_Gremlin_GT a Yahoo! Message  Add AMC_Gremlin_GT to Buddylist
quote:
I finally found... my little switcher. This one says made in Yugoslavia but there is no brand.
is there a way to get a new gear on there? All I need is the axle with a working gear

~CamdenLine

Originally posted by CamdenLine - July 19 2010 :  11:30:14 PM



Usually it's an AHM if it's made in Yugoslavia. Look for a little triangle imprinted in the plastic, Tempo was one name associated with AHM, not sure how. I think you can buy replacement gears for them, you just pull the axles out of the long plastic gear axle, and press on the new one. I can check with my junk box buddy to see if he has any geared axles for it ( mostly likely he may ).

Jerry

" When life throws you bananas...it's easy to slip up"
 Country: USA  ~  Posts: 3974  ~  Member Since: January 04 2009  ~  Last Visit: January 11 2019 Alert Moderator  Go To Top Of Page

catfordken
Moderator




SREnglishGentlemanAvatar

Status: offline

 Posted - July 20 2010 :  08:01:01 AM Link directly to this reply  Show Profile  Send catfordken a Yahoo! Message  Add catfordken to Buddylist
hi that loco was made by mehano for lots of distributors,ahm,model power etc
http://www.hoseeker.net/modelpower/modelpowercatalog198%20pg04.jpg
 Country: United Kingdom  ~  Posts: 8294  ~  Member Since: September 28 2006  ~  Last Visit: October 20 2021 Alert Moderator  Go To Top Of Page

AF Kid
Mikado


JerseyCentralAvatar

Status: offline

 Posted - July 20 2010 :  1:49:54 PM Link directly to this reply  Show Profile  Add AF Kid to Buddylist
I have one of those also with the same problem. When they work, they run really well.
Edited by - AF Kid on July 20 2010 1:51:16 PM
 Country: USA  ~  Posts: 660  ~  Member Since: April 28 2010  ~  Last Visit: June 09 2025 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - July 21 2010 :  7:04:26 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
CL,

Boy that little MDT is a survivor. Those old Mehano motors are noisy as heck, but they're tough.

I have a spare geared axle in my junk box that's yours for the price of postage. They were common to all of the old Mehano diesels with a single power truck, like the C-Liner, BL-2, RS-2, etc. Make sure the worm is okay, because it was pretty common for them to split.

The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

CamdenLine
Little Six

Camden Line

Status: offline

 Posted - July 21 2010 :  9:48:10 PM Link directly to this reply  Show Profile  Add CamdenLine to Buddylist

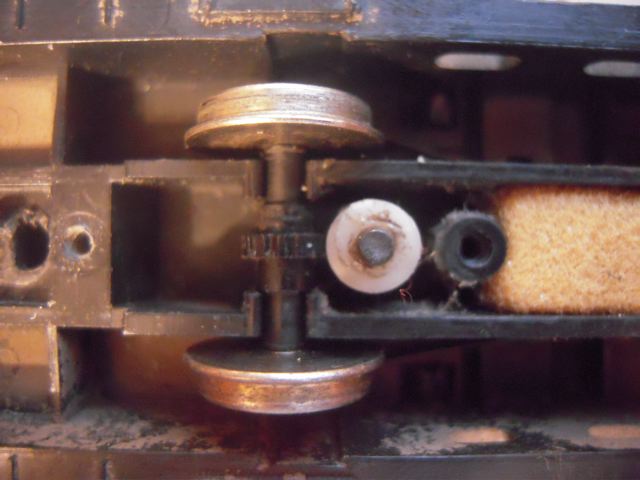

The worm looks okay. Would it be obvious if it is damaged?

~CamdenLine
 Country: USA  ~  Posts: 178  ~  Member Since: July 02 2010  ~  Last Visit: August 22 2023 Alert Moderator  Go To Top Of Page

AMC_Gremlin_GT
Big Boy



GremlinBL2

Status: offline

 Posted - July 21 2010 :  11:04:00 PM Link directly to this reply  Show Profile  Send AMC_Gremlin_GT an AOL message  Send AMC_Gremlin_GT a Yahoo! Message  Add AMC_Gremlin_GT to Buddylist
quote:

I have a spare geared axle in my junk box that's yours for the price of postage. They were common to .... the C-Liner, BL-2, RS-2, etc.
Originally posted by NickelPlate759 - July 21 2010 :  7:04:26 PM



Oh, so it's the same axle as in the BL-2? I have about 20 of those, and at least one chassis is split in half for a failed custom job I bought. I'll have to check it out, to see if it's any good for spare for one of mine. Thanks for the info!

Jerry in Virginia

" When life throws you bananas...it's easy to slip up"
 Country: USA  ~  Posts: 3974  ~  Member Since: January 04 2009  ~  Last Visit: January 11 2019 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - July 22 2010 :  01:43:36 AM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Jerry, yes the plastic axle was used universally on AHM - Mehano diesels from the early 70's onward. The early C-Liners and BL-2's had a 5 pole motor, brass worm and axles, but I think they changed over to all plastic gearing around '71 or so.

CL, the split would probably be visible, and I don't see anything in the photo. It would also be easy to make it slip on the motor shaft. As long as the teeth aren't worn, it should be fine.

The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

CamdenLine
Little Six

Camden Line

Status: offline

 Posted - July 22 2010 :  07:55:41 AM Link directly to this reply  Show Profile  Add CamdenLine to Buddylist
Great news then. I'll be in touch about getting that spare.

~CamdenLine
 Country: USA  ~  Posts: 178  ~  Member Since: July 02 2010  ~  Last Visit: August 22 2023 Alert Moderator  Go To Top Of Page

AMC_Gremlin_GT
Big Boy



GremlinBL2

Status: offline

 Posted - July 22 2010 :  10:43:57 PM Link directly to this reply  Show Profile  Send AMC_Gremlin_GT an AOL message  Send AMC_Gremlin_GT a Yahoo! Message  Add AMC_Gremlin_GT to Buddylist

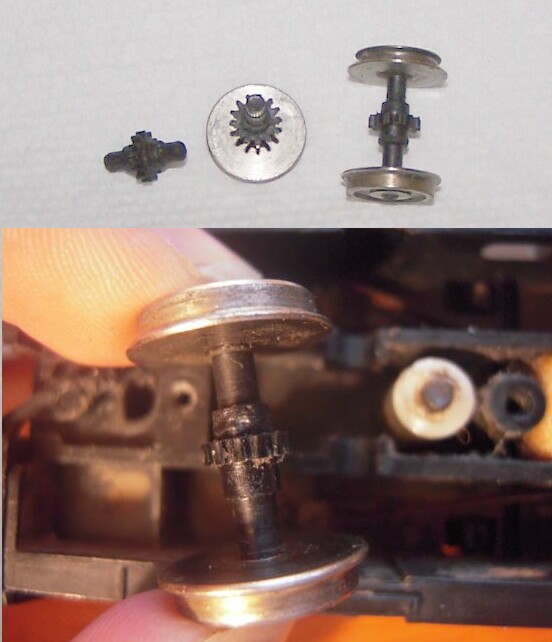

I dug out my damaged BL-2 motor frame tonight, the motor had fried,so it's toast. Took off the axle cover,and took out the two axles. Looks like the Hustler uses the two solid metal wheels, I have one with a traction tire, and one plastic one on the other. So if I combined the solid wheels off each axle, I could get single Hustler axle. Here's a pic of mine, the gears DO look better ( and deeper) than yours.



The BL-2 has a separate gear between the worm, it looks like they just loped off the outer axle shafts where the wheels go to make them. Nice use of resources.

Jerry

" When life throws you bananas...it's easy to slip up"
 Country: USA  ~  Posts: 3974  ~  Member Since: January 04 2009  ~  Last Visit: January 11 2019 Alert Moderator  Go To Top Of Page
