 Posted - February 09 2010 : 4:50:22 PM
|
any one know how they run,all wheel drive,has not arrived yet,got it cheap,ken
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 09 2010 : 11:04:34 PM
|
Hey Ken:
They used to be a favourite of mine but I don't have anything it fits in with... Mine is currently painted in the older BC Rail colours and is the Freight model... a "CF"
They ran pretty well.
-Gareth
"A is A"
-Aristotle
Law of Identification
Edited by - romcat on February 09 2010 11:14:40 PM
|
Country:  Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - February 09 2010 : 11:56:58 PM
|
I remember the ads for those, Ken. I think they were built around old Athearn drivetrains and GE U-Boat trucks, so it should run well.
The Tyco Depot
|
Country:  USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 08:58:31 AM
|
here it is stripped down ken
motor runs sweet,trucks are free,but when all connected,locks up,sure its the brass cog to trucks that is the problem,does not seem to mate right,box marked super drive
Edited by - catfordken on February 16 2010 10:24:56 AM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 10:42:51 AM
|
Bachmann had these too in Amtrak & The Rock Yes I want The Rock version
|
|
Country: USA ~
Posts: 15000 ~
Member Since: February 23 2009 ~
Last Visit: March 01 2026
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 10:59:34 AM
|
the early bachmann had a rubbish drive and not very good body,the new one is okay though ken
http://forum.atlasrr.com/forum/topic.asp?ARCHIVE=true&TOPIC_ID=41556
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 11:51:58 AM
|
changed brass cogs now runs sweet,don`t understand why thats answer for the stiffness,but it is,all thats left now is to clean the wheels and lube ken
Edited by - catfordken on February 16 2010 11:52:58 AM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 2:13:42 PM
|
The E-60-CP and the E-60-CF made by Amercian GK were all Athearn based in their drive. Both were good runners and pulled well.
toptrain
" It's a Heck of a Day " !!!
|
|
Country: USA ~
Posts: 7538 ~
Member Since: August 07 2008 ~
Last Visit: December 06 2025
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 2:16:22 PM
|
| nice one frank,love it,ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 2:19:25 PM
|

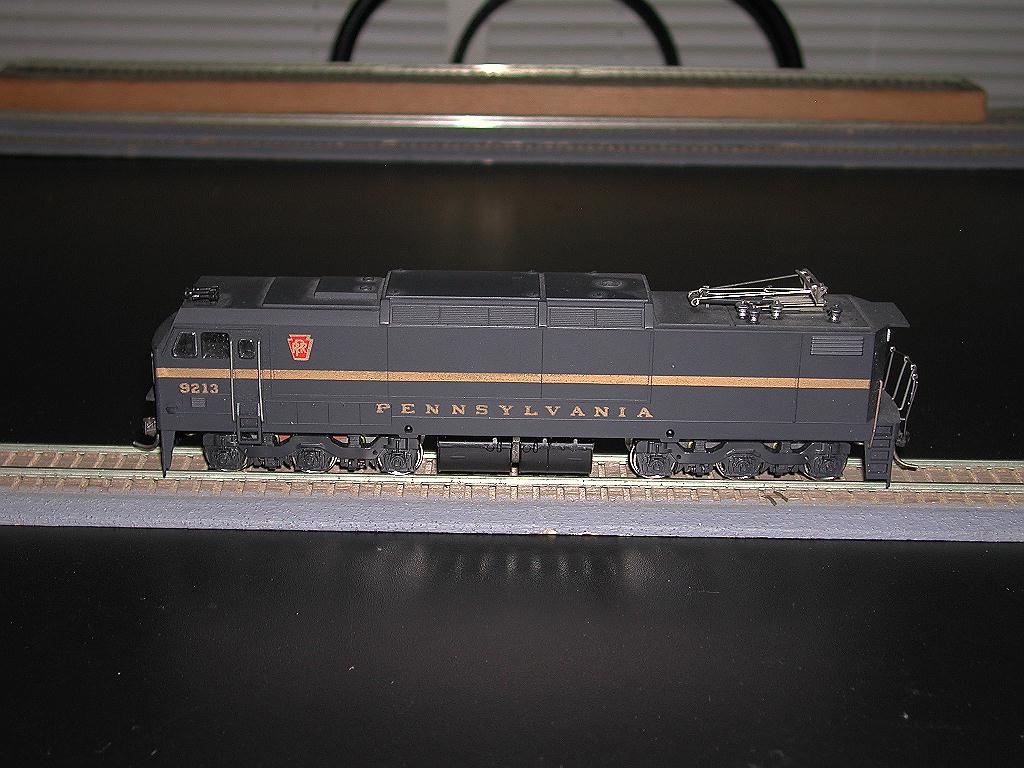

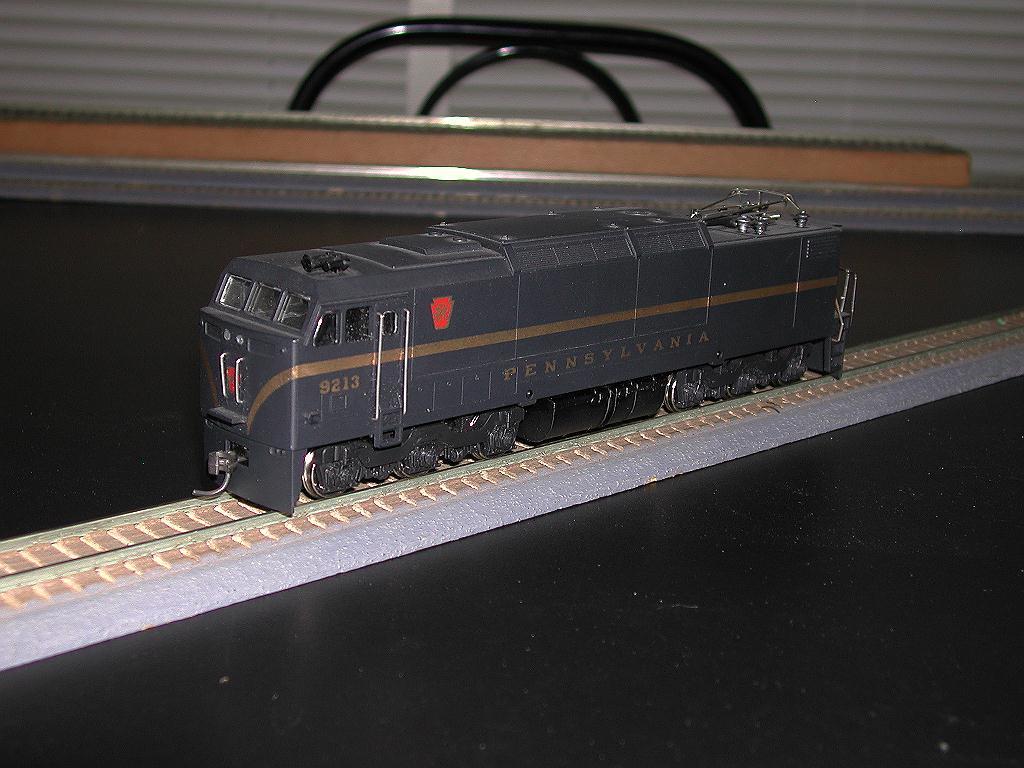

Here is the E 60 CF I painted for the Pennsy.
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on February 16 2010 2:20:41 PM
|
|
Country: USA ~
Posts: 7538 ~
Member Since: August 07 2008 ~
Last Visit: December 06 2025
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 2:35:28 PM
|
| now that i do like,its pennsy ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 16 2010 : 2:39:56 PM
|
| the chassis on the new jersey,is from what ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 17 2010 : 10:21:40 AM
|
Ken: The two are American GK so both are athearn .
frank
toptrain
" It's a Heck of a Day " !!!
|
|
Country: USA ~
Posts: 7538 ~
Member Since: August 07 2008 ~
Last Visit: December 06 2025
|
Alert Moderator
|
|
|
|
Posted - February 17 2010 : 11:14:51 AM
|
| hi frank your chassis on the new jersey is different,is it plastic,seems to have more detail ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 17 2010 : 1:49:19 PM
|

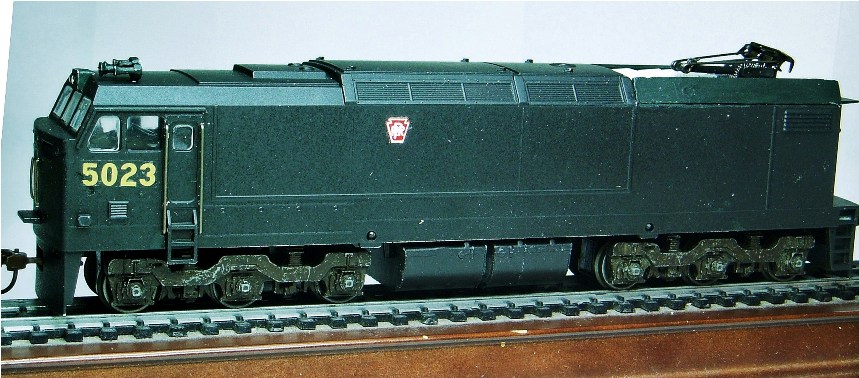

Hi Guys. Here the Walthers PRR E60CF. It was one of the: "What If The PRR was still Around Series".  Carl
Numquam Immoderatio Satis Est
(Too Much Is Never Enough )
|
|
Country: USA ~
Posts: 632 ~
Member Since: January 23 2006 ~
Last Visit: June 21 2020
|
Alert Moderator
|
|
|
|
Posted - February 17 2010 : 1:58:34 PM
|
ACCORDING TO MY RESEARCH,ATHEARN SUPPLIED THE DRIVE FOR AMERICAN GK,WHO INTERN SUPPLIED WALTHERS THE COMPLETED ITEM,WEIRD OR WHAT KEN
PS SORRY TYPED BEFORE I LOOKED CAPS ON SORRY
Edited by - catfordken on February 17 2010 2:01:00 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 17 2010 : 4:32:44 PM
|

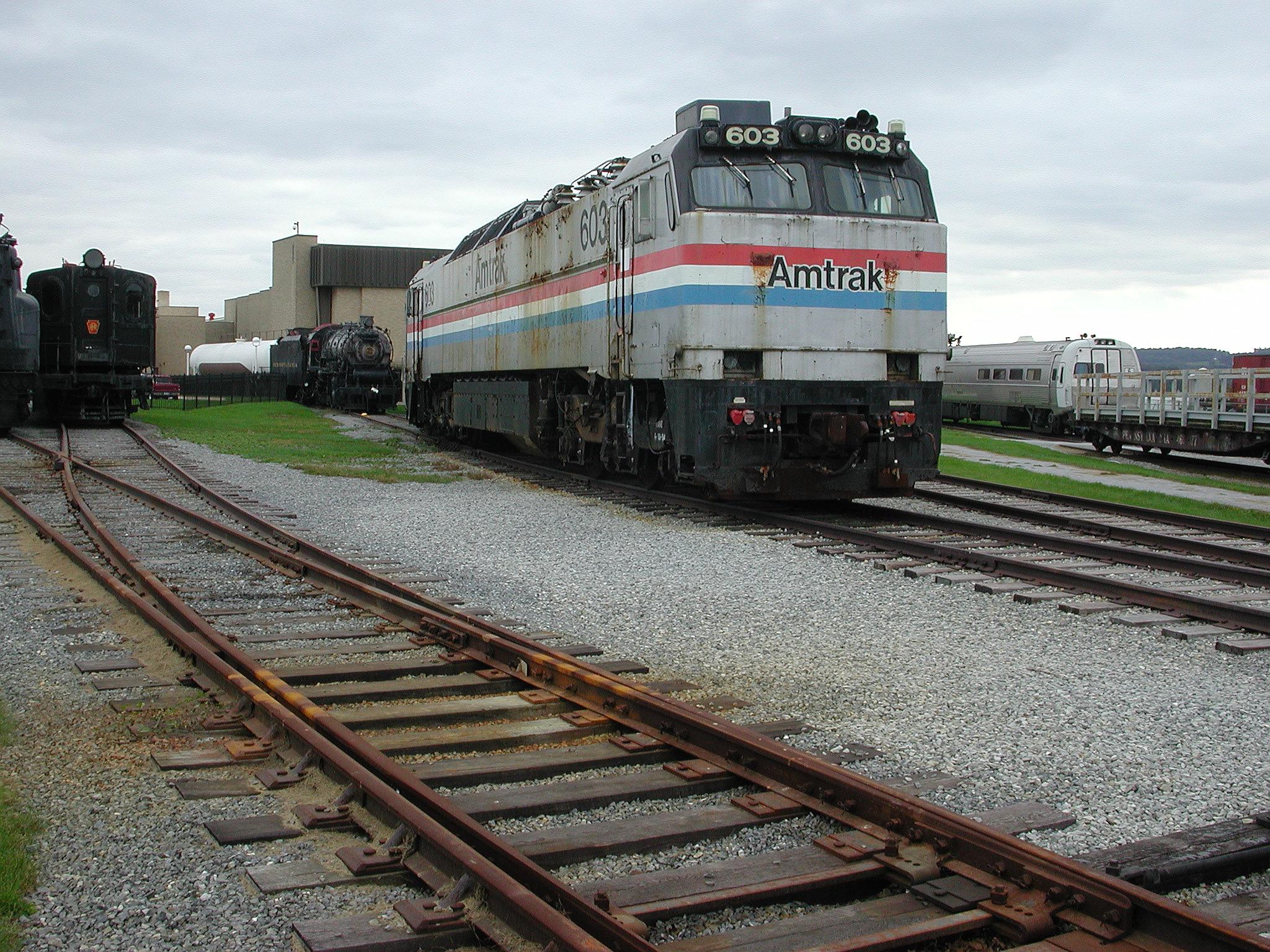

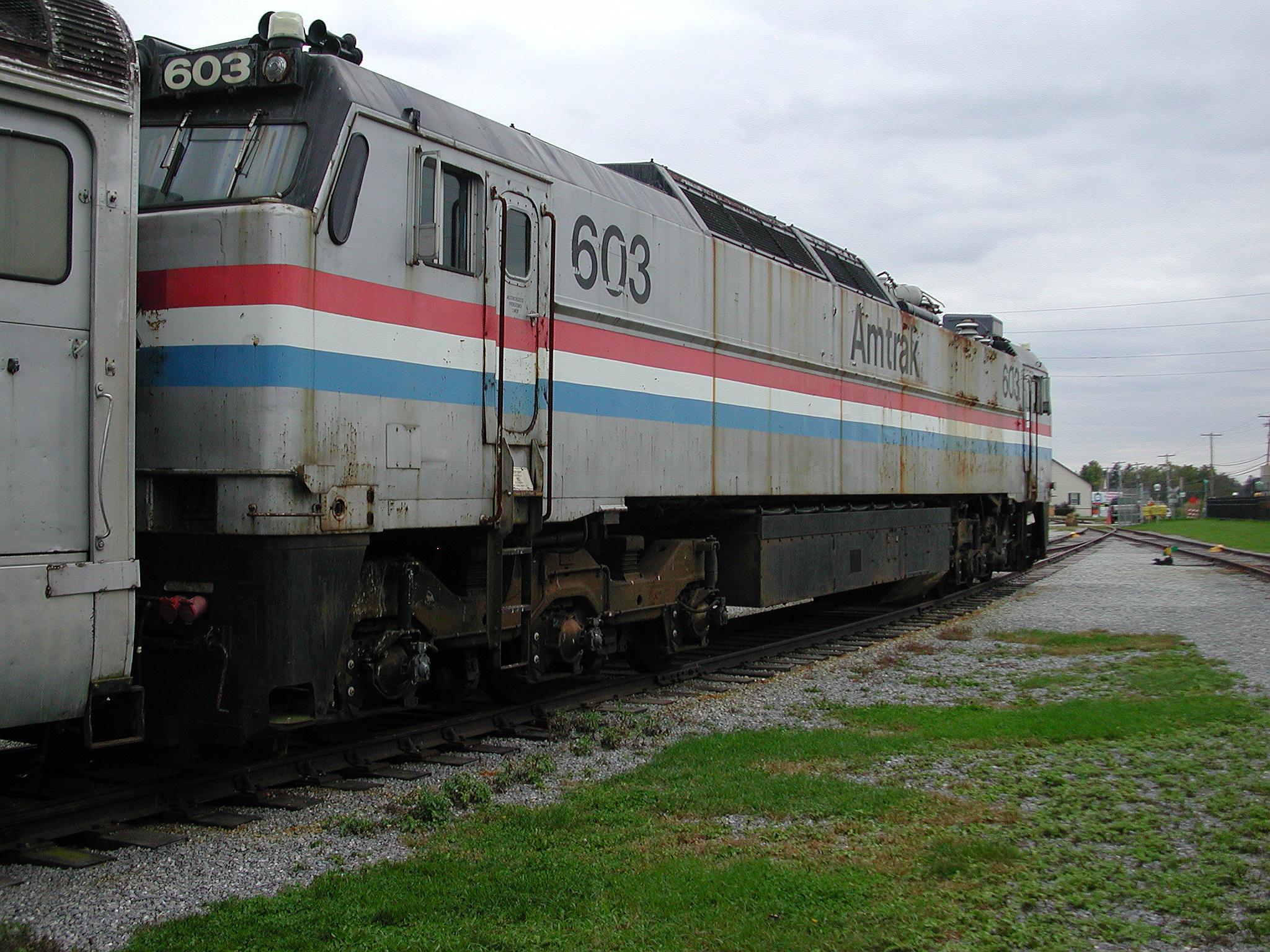

Here you go Ken. Here is a picture of one of the last surviving E60s.The other is A NJT like Frank's. I took this last October along with 180 Other pictures at The Railroad Museum of Pennsylvania. Amtrak Number 603 was originally #964.. Also here is a little Info On the Engine. Carl
When Amtrak started operations on May 1, 1971, it initially relied on an inherited and aging fleet of GG1 electric locomotives for its electrified passenger service. Looking to replace the GG1's, Amtrak ordered 26 new electric locomotives from General Electric of Erie, PA in 1973. These were classified as E60, were built between 1974 and 1976 and assigned road numbers between 950 and 976 (though later the 14 units remaining with Amtrak were re-numbered within the 600-621 range -- not all numbers being used).
This was Amtrak’s first new electric locomotive purchase and coincided with orders for new diesel-electrics from both General Electric and General Motors. The order was split between 15 class E60CP units with steam generators for older passenger equipment, and 11 E60CH units with newer Head-End Power (HEP) generators for the newly ordered Amfleet and rebuilt Heritage Fleet equipment.
The E60’s, like Amtrak’s first diesels, were based on existing locomotives designed for freight service. They feature a boxy, dual-cab car body and ride on a pair of three-axle trucks. Their as-built weight of 387,000 lbs. was more than double the optimum weight for passenger service and contributed to poor running during testing. The locomotives had a tendency to yaw sideways when accelerating, placing high stress on the rails. The Federal Railroad Administration refused to allow the E60’s to operate at the intended 120 mph after they derailed twice during testing.
After numerous refinements and additional tests, the locomotives entered passenger service at slightly reduced speeds. However, they encountered new problems when turning on the tight radius return loops at Sunnyside yard, New York. The locomotives had been designed for close coupling with passenger equipment…so close that the diaphragms on their coaches would sheer the headlights off of their nose. All headlights were subsequently moved above the cab windows.
By 1984, with the arrival of new AEM7 electrics, most of the E60 fleet went into storage (accompanying the GG1’s they were meant to replace). Ten units (958-963, 967, 971-973) were sold to New Jersey Transit in 1984. Two additional units, 966 and 968 were sold to the Navajo Mine Railroad (the current status of these locomotives is not known). The remainder of the fleet (then numbered between 600-612 and 620-621, with not all sequential numbers used) spent the next two decades in and out of storage lines, being reactivated during peak seasons or during the overhaul of AEM7’s. When returned to service, they were used mainly on heavy, long-distance trains (the Crescent, Silver Meteor, Broadway, etc.) and special movements including circus and mail trains, or maintenance of way runs. In 1998, some were upgraded to E60MA’s, to haul heavy long-distance trains between New York and Washington.
By 2003 only a handful of E60's remained on Amtrak. These were scheduled for overhaul and new cab-signal equipment to permit 120 mph running, comparable to the rest of Amtrak's fleet. None of these overhauls were fully completed when word was passed down to scrap the entire fleet.
No. 603, however, was literally within 24 hours of being tested for return to service when the final order to scrap was issued. The locomotive has been equipped with the new cab signal system, and is mechanically sound. It retains much of its original equipment and configuration.
No. 603 is believed to have been built in June 1976. Unlike those units delivered with steam heat, the 603 was never modified, retaining its original underbody. 603 also retains the original doors and windows, which had been replaced on several other units. For these reasons, this unit was selected for preservation at the Museum
Numquam Immoderatio Satis Est
(Too Much Is Never Enough )
Edited by - VintageHO on February 17 2010 4:37:19 PM
|
|
Country: USA ~
Posts: 632 ~
Member Since: January 23 2006 ~
Last Visit: June 21 2020
|
Alert Moderator
|
|
|
|
Posted - February 17 2010 : 5:18:12 PM
|
cheers carl,nice photos and info,many thanks ken
interesting link
http://www.railheadvideo.com/pix/modeling/bne60.htm
Edited by - catfordken on February 17 2010 7:31:38 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - February 21 2010 : 7:27:20 PM
|
[quote]hi frank your chassis on the new jersey is different,is it plastic,seems to have more detail
Ken: what I had gotten was a unbuilt kit. I forget the road name but the trucks are what came it. Someone could have swapped it before I got it. I bought it years after it went out of production. The trucks look like they belong on a Alco PA.
frank
toptrain
" It's a Heck of a Day " !!!
|
|
Country: USA ~
Posts: 7538 ~
Member Since: August 07 2008 ~
Last Visit: December 06 2025
|
Alert Moderator
|
|
|
|
Posted - February 22 2010 : 3:25:23 PM
|
Man - I had a nice post all set, but it didn't work.
The double-cab E60CP (Electric, 6000 HP, C-C trucks, HEP generator for Passenger operations) and the single-cab E60CF (Electric, 6000 HP, C-C trucks, Freight) models were produced in the early to mid 1980s by American GK, an independent startup company.
Of the prototype locomotives, only three railroads purchased the GE E60 series - Amtrak (E60CP), Black Mesa and Lake Powell (E60CF), and the Nacionales de Mexico (I forget which one). Some of the NdeM locos wond up on the BM&LP and I believe are still in operation.
The American GK model uses their own shell on Athearn frames. The Athearn "Jet 500" motor is used, along with Athearn driveline components and trucks.
There seems to be some variation in trucks and frames. The Amtrak E60CP shown above uses the Athearn F45/SDP40/SD45 frame with Athearn's U28C/U30C/U33C trucks. The Jersey Central model shown uses the same frame with Athearn's EMD Flexicoil trucks from their SD9. The PRR models use the Athearn GE C-C trucks with Athearn's SD9 frame (look at the fuel tanks).
Kris Carver-Seaboyer
Modelling the Grafton Terminal Railway, set in New Brunswick, Canada in the 1978-1984 time frame
|
|
Country: Canada ~
Posts: 166 ~
Member Since: October 28 2009 ~
Last Visit: February 25 2022
|
Alert Moderator
|
|
|
|
Posted - September 29 2011 : 7:15:43 PM
|
Im An Electric Kind Of Guy. I Like AEM7s Thought. Or My Favorite, ALP46s. NJT Is Smart. Buying Good Engines, Not Ones Made In China They Are Made In Germany.
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2011 : 6:07:46 PM
|
GREAT!!! pick-up Ken!! In peak season, they can easily fetch $80 - $100.
They run as good as any flywheel drive Athearn. I have a few of my own.

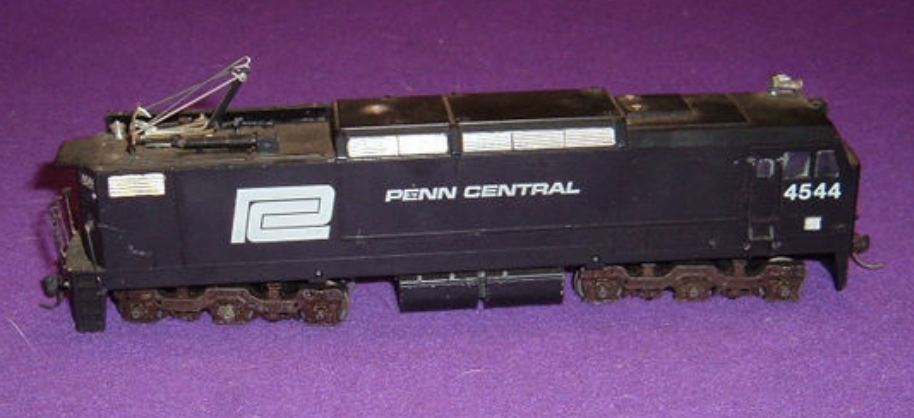

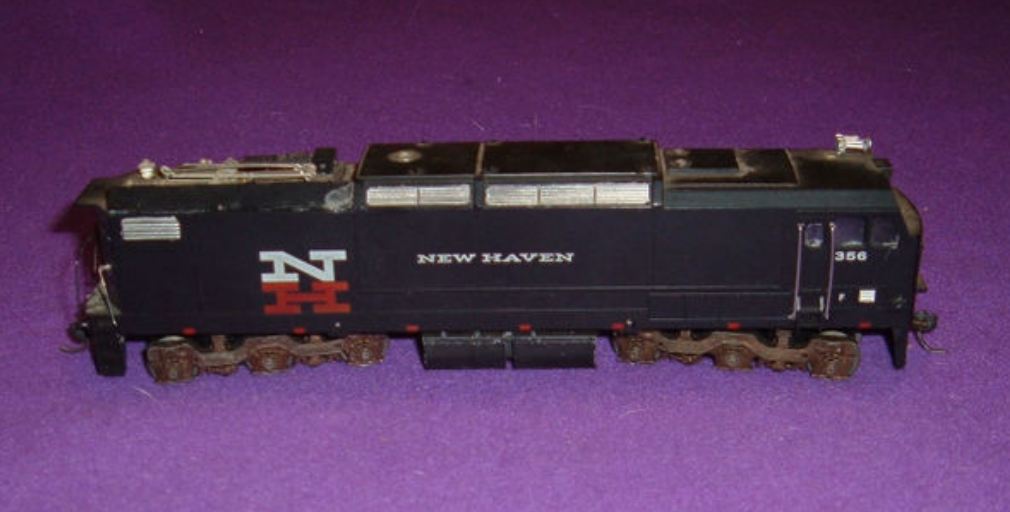

Just picked these two E60CF's up last week for a combined ~$80 incl s/h:
Both good buys considering how rare they are. I plan on swapping the PC shell for the middle NH shell in this pic:
Have only ever seen 4 of the New haven E60CF's and I own 3 of them. I lost a ~$70 bid on one this past Summer. New haven never had any of these, but since I am a self-described New Haven Fanatic, I have to get them when I can.
Now back to the madness which is my life!
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - September 30 2011 : 6:14:02 PM
|
I Want A PC One! Would You Sell?
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2011 : 6:32:37 PM
|
Oh I just looked at a Trains Mag & the Deseret & Black Mesa Repainted a few of their locos in a new paint scheme
|
|
Country: USA ~
Posts: 15000 ~
Member Since: February 23 2009 ~
Last Visit: March 01 2026
|
Alert Moderator
|
|
|
|
Posted - September 30 2011 : 7:23:33 PM
|
quote:I Want A PC One! Would You Sell?
Originally posted by CNVIATyco - September 30 2011 : 6:14:02 PM
|
I plan to make use of the chassis for a lose but perfect NH shell that I have. I also need the pantograph. The other details are somewhat there and i can remake, but there are glue marks on the roof and it would require a little clean-up. I have no use for the shell though. I'll be happy to send it to you for free if you pay for the shipping.
PM me your address and I'll see how much it is to ship. If you are in the US, it should not be more than $4-5
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - September 30 2011 : 7:26:01 PM
|
YES YES YES! I FINALLY HAVE AN ELECTRIC! Or At Least The Shell
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2011 : 7:38:20 PM
|
Those Engines Are Still At The Navajo Mine Railroad. Mini Article In Trains That Talked About Coal. Cant Find Right Now.
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 03 2011 : 3:39:08 PM
|
Does An Athearn Bluebox SD9 Chassis Fit?
Ive seen Some at Shows.
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 03 2011 : 3:56:42 PM
|

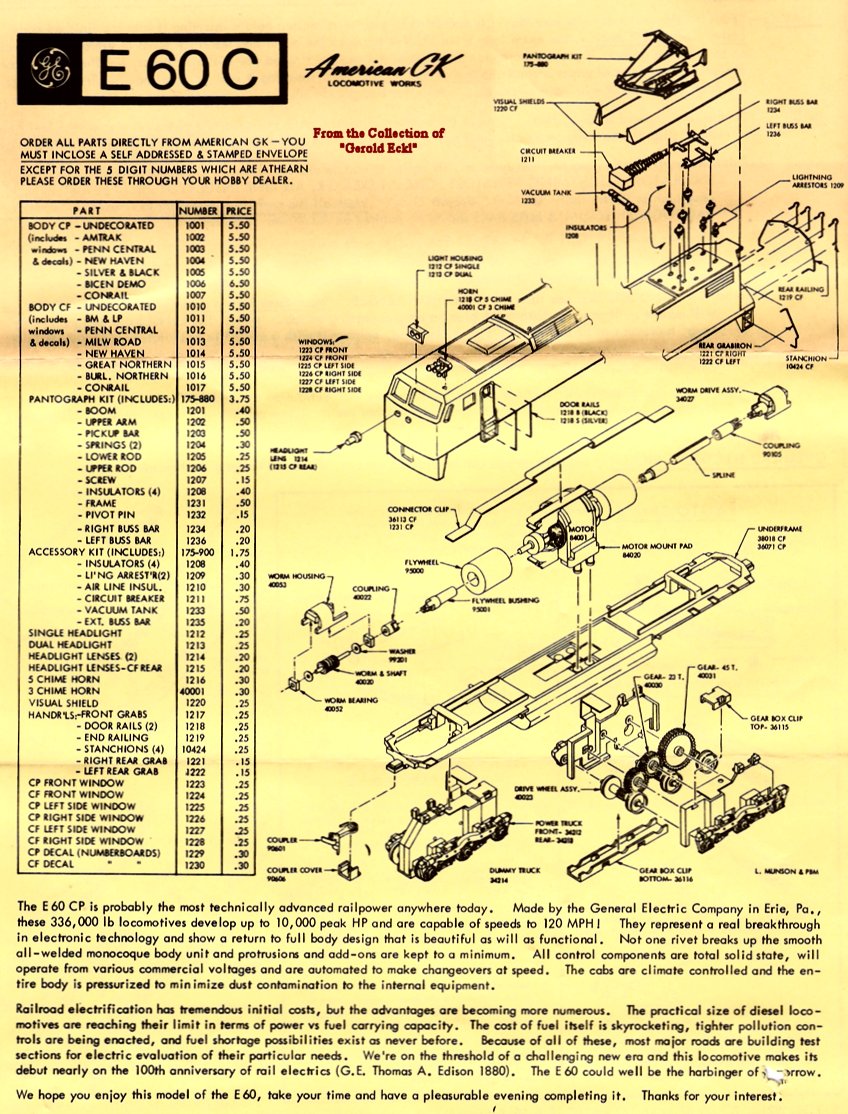

hi cvt,cf uses a sd9 chassis and a cp uses a fp45 chassis,as far as i can see from instructions all parts except the bodies are standard athearn parts,ken
Edited by - catfordken on October 03 2011 4:01:24 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - October 03 2011 : 6:45:03 PM
|

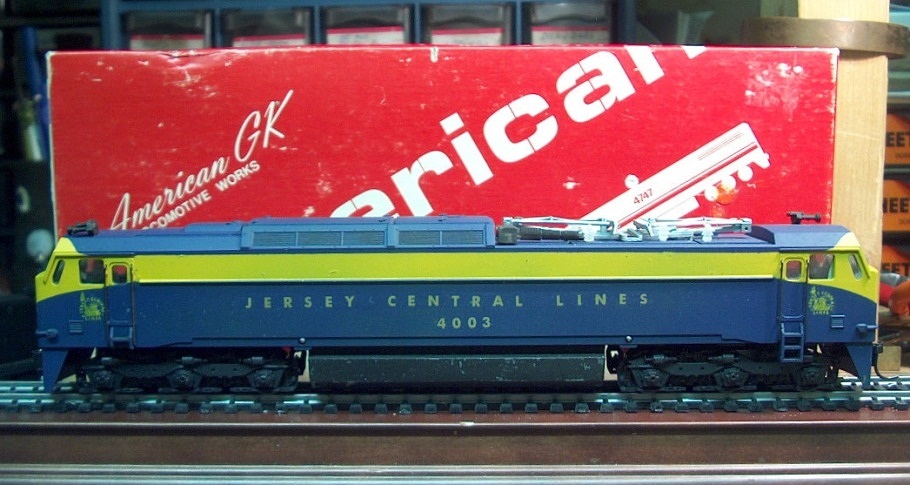

Here is the rare Central Railroad of New Jersey . It is so rare I'm the only one that has one.
frank
Also I repainted mine to CNJ.
toptrain
" It's a Heck of a Day " !!!
Edited by - toptrain on October 03 2011 6:46:42 PM
|
|
Country: USA ~
Posts: 7538 ~
Member Since: August 07 2008 ~
Last Visit: December 06 2025
|
Alert Moderator
|
|
|
|
Posted - October 04 2011 : 07:43:06 AM
|
Very Nice, Toptrain! Looks Very Good!
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 09:26:37 AM
|
quote:YES YES YES! I FINALLY HAVE AN ELECTRIC! Or At Least The Shell
|
I pulled off the shell and have it sitting on my computer desk at home. I need to know to whom and where to end it.
Thanks,
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 09:31:39 AM
|
Geez Sean
quote:
Don't end, your have so much to look forward to!!!
-Gareth
"A is A"
-Aristotle
Law of Identification
|
|
Country: Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - October 05 2011 : 3:18:34 PM
|
Okay. Ill Fish Some Parts Out And Attach It Together To Make A E60CF!
Is That Silver Paint On The Grills? And Is It Painted Or Molded Black?
Forgot To Add- Thanks Catfordken! Its Just A Matter Of Finding One. And Thanks A Many Mustangs And Trains! Ive Been Wanting One For About 7 Years! They Are The Best Of The Best. And Its In The Roadname I Wanted! Ill PM You Adress.
Are The E60CFs Rarer Than The E60CPs? And Has Their Been Some Changes To Strasburg Since 2004? I Went There In The 2nd Grade As A Birthday Gift. Saw My First Electric And GG1 On That Trip. Got To See The Acela Express On The Bridge At Have De Grace, Maryland.
Went To Maryland, Slept In The Red Caboose Inn, Went In The VERY Large And Dusty shop. Saw Some Tyco. Should Have Gotten. Well, We All Regret One Dicision Or Another.
Edited by - CNVIATyco on October 11 2011 9:50:09 PM
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 16 2011 : 2:05:14 PM
|
Mustangs 'N' Trains, Has The Beutay Been Shipped? I Might Make A Video of Me Unboxing It. Ive Waited Years. Never at Shows, Never On Ebay, And Never At Shops.
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 19 2011 : 07:49:39 AM
|
Does The Bachmann E60CP Pantograph Fit? I Need A Pantograph For It. Now do I get the insulators?
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - October 19 2011 : 09:02:55 AM
|
quote:| Mustangs 'N' Trains, Has The Beutay Been Shipped? |
I'll get it out this weekend. It has just been hectic here with the construction happening. The contractor is almost done with his work, so things will settle down here and i will be able to isolate the chaos to only a portion of the house.
quote:| Does The Bachmann E60CP Pantograph Fit? I Need A Pantograph For It. Now do I get the insulators? |
It should work in a pinch, but I believe they are plastic, which renders them useless. For insulators, you could use cut up plastic sprue material. Just cut it to fit and drill a hole. The pantographs are not very complicated and could be duplicated with a little patience however.
Sean
"If everything seems under control, you're not going fast enough!" - Mario Andretti!
|
|
Country: USA ~
Posts: 1729 ~
Member Since: June 15 2011 ~
Last Visit: June 26 2021
|
Alert Moderator
|
|
|
|
Posted - October 19 2011 : 12:29:18 PM
|
Thanks! I cant Wait!
|
|
Country: USA ~
Posts: 1102 ~
Member Since: July 28 2011 ~
Last Visit: July 01 2015
|
Alert Moderator
|
|
|
|
Posted - April 02 2012 : 6:45:34 PM
|
| hello, did walthers ever produce the virginian e60cf, i know it was advertised but have never seen one , also did american gk or walthers ever produce 2 road numbers per road name_
|
|
Country: USA ~
Posts: 27 ~
Member Since: April 02 2012 ~
Last Visit: October 25 2012
|
Alert Moderator
|
|
Home
Forums
Events Calendar
Forum Admins & Mods
Register
