 Posted - December 15 2008 : 9:03:34 PM
|
I have been given a 1989 K-Line Coca Cola set to check out before it circulates a relative's xmas tree display.
Being an HO user, this 'O' scale & 3 rail AC set up has me scratching my head when it comes to getting power to the rails.
The transformer has 2 wires running to what looks like a flat piece of insulated card out of which sticks a metal 'tongue at the end & there is a secondary metal 'groove' further back from the end. They line up with 2 rails, but I cannot figure out how you position this thing & keep it held in place against the rails.
Any advice?
Thanks
Tanked
|
Country:  USA ~
Posts: 243 ~
Member Since: September 08 2008 ~
Last Visit: January 04 2012
|
Alert Moderator
|
|
|
|
Posted - December 15 2008 : 10:02:26 PM
|
That item is referred to as a "lockon"
It clips on the bottom of the outside rail and (either one) and it clips onto the bottom of the middle rail then the transformer wires get attached to the binding clips.
Hope this helps
BT
|
|
Country: USA ~
Posts: 385 ~
Member Since: August 08 2007 ~
Last Visit: January 24 2026
|
Alert Moderator
|
|
|
|
Posted - December 15 2008 : 10:15:04 PM
|
this might also help....

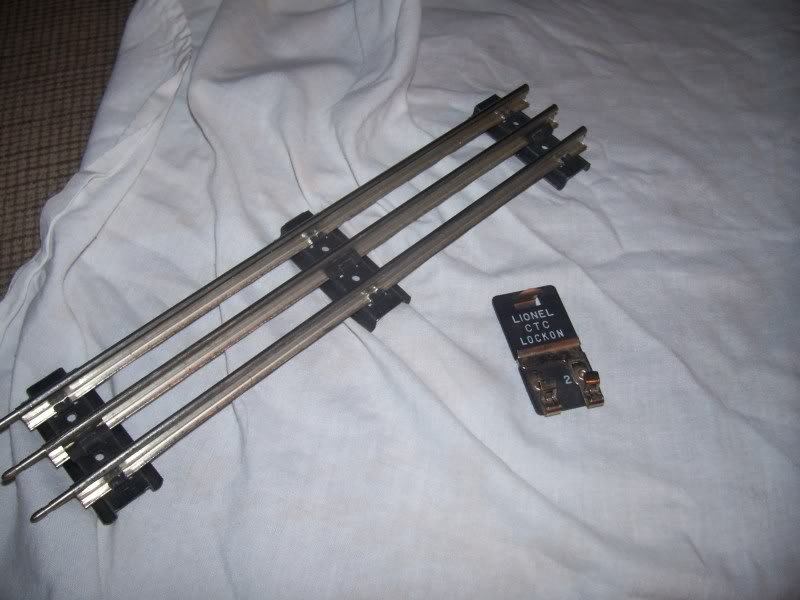

Track and lockon

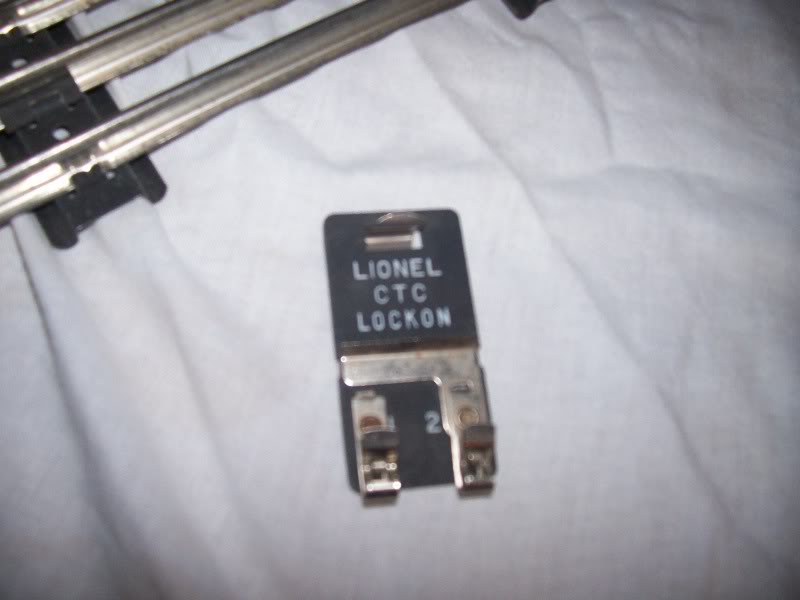

lockon closeup

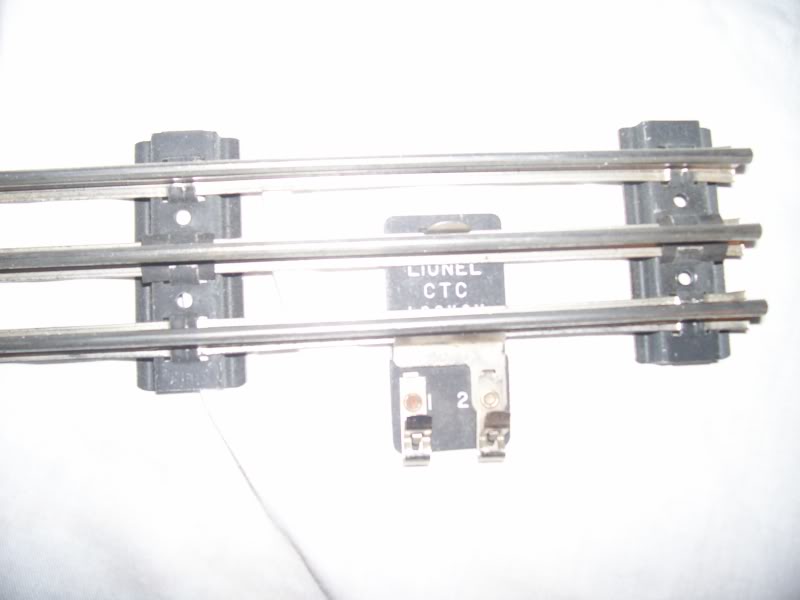

lockon in proper position

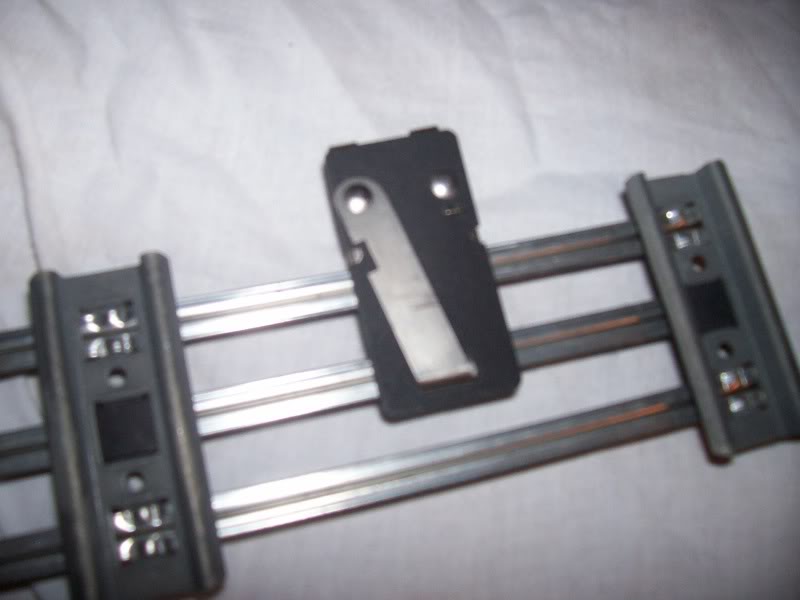

underside view
That should explain its placement
BT
|
|
Country: USA ~
Posts: 385 ~
Member Since: August 08 2007 ~
Last Visit: January 24 2026
|
Alert Moderator
|
|
|
|
Posted - December 15 2008 : 10:53:19 PM
|
Taycotrains.
Thanks for going to the trouble of doing pics..
Got it by accident B4 yr pics, but they confirm I had it right.
Tanked
|
|
