 Posted - April 20 2008 : 09:28:29 AM
|

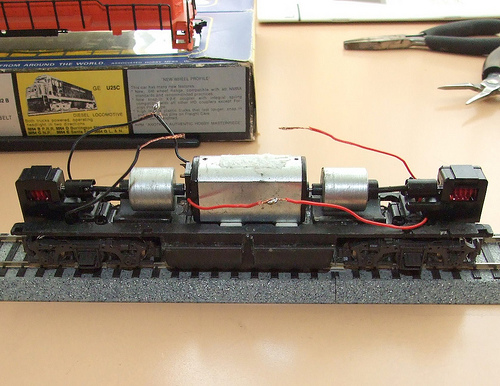

hi,i am puzzled,hoseekers site shows a completly different chassis and set up to mine,mine is shown below,would show hoseekers but have not had reply to request,can anyone help ken
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 20 2008 : 3:36:15 PM
|
Hi Ken,
I have two of these that look just like that, but yours is missing the plastic worm & motor covers where the headlight used to go.
Assuming the motor has a wire from each pole, connect one pole to each truck, on the same side (rail). The colors are irrelevant (do not try to connect the same colors or it will short). IN other words: wires from the left side go together, as do the wires on the right side. If the loco goes "backwards" compared to others, then swap the pole leads.
These locos are still very good runners, they really set a new standard when they came out.
Hope that helps!
|
Country:  USA ~
Posts: 2175 ~
Member Since: July 15 2006 ~
Last Visit: January 31 2010
|
Alert Moderator
|
|
|
|
Posted - April 20 2008 : 3:52:18 PM
|
hi as you can see from photo have connected 2 lots and it runs smoothly,are you saying thats wromg ken
Edited by - catfordken on April 20 2008 3:52:54 PM
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 20 2008 : 4:14:30 PM
|
Ken:
Does it say mad in Austria on the bottom or Japan? It's probably a Roco unit.
-Gareth
|
Country:  Canada ~
Posts: 4200 ~
Member Since: January 08 2006 ~
Last Visit: November 09 2021
|
Alert Moderator
|
|
|
|
Posted - April 20 2008 : 4:54:00 PM
|
| roco made in austria ken
|
|
Country: United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - April 20 2008 : 8:36:48 PM
|
Hey Ken,
Looks like you just need to connect those 2 loose wires. Right now your loco is picking up current on only half the wheels. Seems you will need to add some extra length of wire to get the connections to reach.
|
|
