 Posted - October 30 2020 : 11:01:36 AM
|

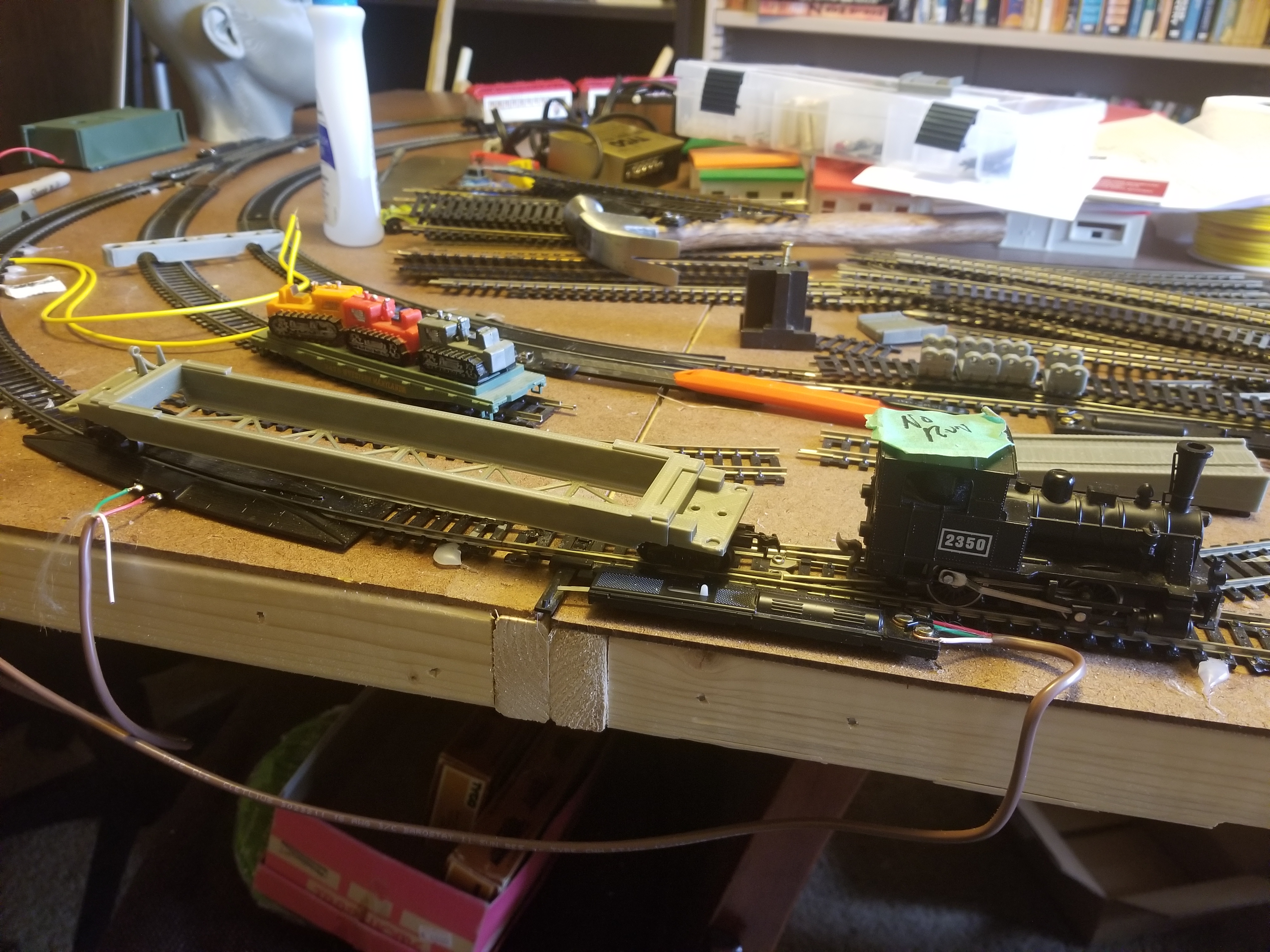

8 hour print, about $1.00 in materials
model link https://www.thingiverse.com/thing:670492/files
I asked "what is this car called" in another subforum because I wanted one as we have a number of them on the local tracks often
very nice model, maybe light on fine details, but that makes the overall model print better
currently printing the shipping container. 6 hour print, about $0.75
I have numerous stuff being delivered today including ebay auction lots of "stuff" that might have trucks that I can scavenge for this
(all pics upload at large resolution so you can click on them and get really good closeup views of all the dirt and dust on my layout)
meant for screwed in trucks, have it sitting on tyco trucks, might drill them out to fit

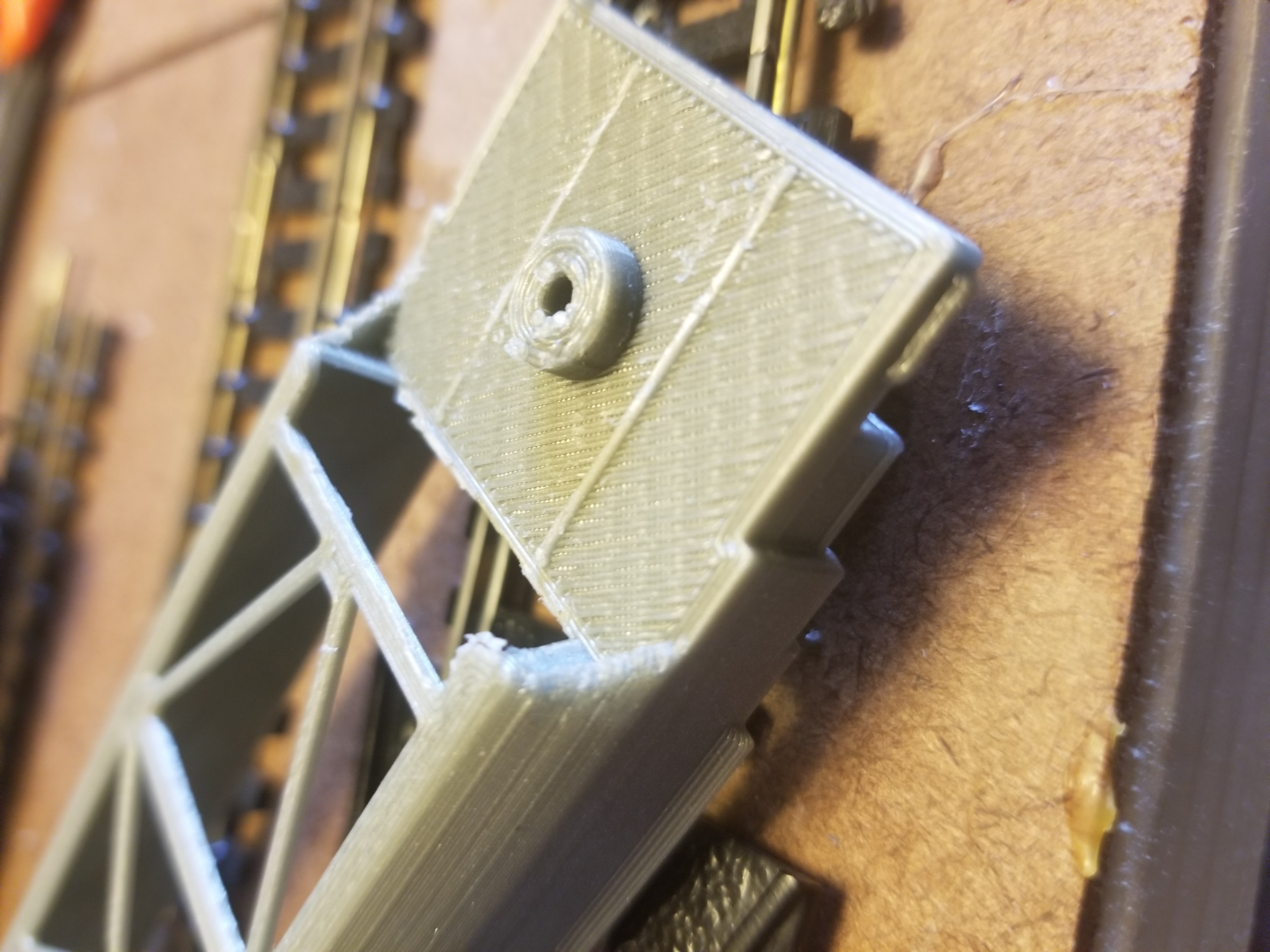

worst details here, all on the underside so you wont see them unless you look real hard. a superb model tweaked for printing
then again, I expected this to print uglier than it did nothing was supporting this, these parts were layed on as you see them
|
Country:  USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - October 30 2020 : 11:15:21 AM
|
| 3d printing is so cool! That is awesome!
|
|
Country: USA ~
Posts: 556 ~
Member Since: December 26 2019 ~
Last Visit: April 16 2025
|
Alert Moderator
|
|
|
|
Posted - October 30 2020 : 1:46:49 PM
|
| That is amazing.
|
|
Country: USA ~
Posts: 11505 ~
Member Since: December 09 2013 ~
Last Visit: September 22 2025
|
Alert Moderator
|
|
|
|
Posted - October 30 2020 : 8:43:04 PM
|
Awesome! Wow.
"Let your light so shine before men, that they may see your good works, and glorify your Father which is in Heaven." - Matthew 5:16
Youtube Channel: www.youtube.com/rpmodelrailroads
Instagram: https://www.instagram.com/rp_model_railroads/
|
|
Country: USA ~
Posts: 4669 ~
Member Since: August 11 2017 ~
Last Visit: July 20 2023
|
Alert Moderator
|
|
|
|
Posted - October 30 2020 : 10:58:36 PM
|
Hopefully in a few years Plasticville parts will be reproduced
|
|
Country: USA ~
Posts: 1114 ~
Member Since: August 19 2011 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - October 31 2020 : 1:18:46 PM
|
That's a good, clean print! What printer are you using?
quote:| worst details here, all on the underside so you wont see them unless you look real hard. a superb model tweaked for printing |
This is the real trick. It's not about having a perfectly accurate 3D model, it's about having one that's optimized for 3D printing.
|
Country:  Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - October 31 2020 : 2:06:30 PM
|
quote:That's a good, clean print! What printer are you using?
|
Sunlu S8, a cr-10 clone. was 199 on prime day and I've wanted one bigger than my cr-10 mini(which I love)
quote: quote:| worst details here, all on the underside so you wont see them unless you look real hard. a superb model tweaked for printing |
This is the real trick. It's not about having a perfectly accurate 3D model, it's about having one that's optimized for 3D printing.
Originally posted by DaCheez - October 31 2020 : 1:18:46 PM
|
yeah, whoever did this design really thought about how to optimize it
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - October 31 2020 : 4:07:42 PM
|
In my day it was the mimeograph. Along came the Xerox machine- the
size of a freight car- putting out inky, shiny copies. Now this.
:O
|
|
Country: USA ~
Posts: 11505 ~
Member Since: December 09 2013 ~
Last Visit: September 22 2025
|
Alert Moderator
|
|
|
|
Posted - October 31 2020 : 7:16:30 PM
|
| Interesting. I'm almost positive I've heard the name Sunlu before; I had no idea they made printers. Obviously it's putting out good results. I've been running an Ender 3 since last year and love it so far.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - October 31 2020 : 7:50:08 PM
|
quote:Interesting. I'm almost positive I've heard the name Sunlu before; I had no idea they made printers. Obviously it's putting out good results. I've been running an Ender 3 since last year and love it so far.
Originally posted by DaCheez - October 31 2020 : 7:16:30 PM
|
I've heard good things about the ender 3, I like it's grandfather the cr-10(mini)
Sunlu makes filament, and looks like a lesser quality printer than creality, but everything I've tossed at it came out well, except the test print, but I think the sample filament was bad. as per reviews it was obviously built wrong, but i have NOT touched anything on it, because I wanna see if it fails and where it fails
I also have one of the kossel prototypes that I can almost get to work, and a monoprice v2 that work until you move it, but lately I am past the "3d print ALL the things" so it only get used once in a while
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - October 31 2020 : 8:38:05 PM
|
No need to upgrade/change anything if it's all working. My Ender's plastic extruder arm has been upgraded to aluminum (out of necessity) and I bought a glass bed, but otherwise it's stock. Sounds like you have a good collection of printers. I intend to buy a resin printer eventually, but for now the one printer is enough.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - November 02 2020 : 3:01:27 PM
|
| That's a really nice print! I have a resin printer which is great on the details but very limited in the size it can print. I can only print items up to 4.5 inches long. Great job!
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: June 11 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 10:12:40 AM
|
quote:That's a really nice print! I have a resin printer which is great on the details but very limited in the size it can print. I can only print items up to 4.5 inches long. Great job!
Originally posted by Redwoods - November 02 2020 : 3:01:27 PM
|
ever print horn hooks, ladders or brake wheels?
Just found a STL for hooks and am attempting to print them now, I am guessing it'll fail. I need to install one of the .1 nozzles on one of my printers for dedicated small parts
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 2:59:49 PM
|
quote: quote:That's a really nice print! I have a resin printer which is great on the details but very limited in the size it can print. I can only print items up to 4.5 inches long. Great job!
Originally posted by Redwoods - November 02 2020 : 3:01:27 PM
|
ever print horn hooks, ladders or brake wheels?
Just found a STL for hooks and am attempting to print them now, I am guessing it'll fail. I need to install one of the .1 nozzles on one of my printers for dedicated small parts
Originally posted by tater1337Â -Â November 03 2020Â :Â 10:12:40 AM
|
I'm running a 0.4mm nozzle, but have a few of the smaller sizes from buying bulk packs. If you try it, I'd be interested in seeing your results.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 8:24:01 PM
|
quote: quote: quote:That's a really nice print! I have a resin printer which is great on the details but very limited in the size it can print. I can only print items up to 4.5 inches long. Great job!
Originally posted by Redwoods - November 02 2020 : 3:01:27 PM
|
ever print horn hooks, ladders or brake wheels?
Just found a STL for hooks and am attempting to print them now, I am guessing it'll fail. I need to install one of the .1 nozzles on one of my printers for dedicated small parts
Originally posted by tater1337Â -Â November 03 2020Â :Â 10:12:40 AM
|
I'm running a 0.4mm nozzle, but have a few of the smaller sizes from buying bulk packs. If you try it, I'd be interested in seeing your results.
Originally posted by DaCheez - November 03 2020 : 2:59:49 PM
|
the tyco hook STL file I have is printed (with .1 layers and .4 nozzle)
the springs are too long
the main body is too narrow
the hole fits
and it does couple, but real stiff
I am going to need to scan and redesign it
ordered .2 nozzles for my monoprice v2, which I've been planning on making a dedicated fine parts printer, as it is direct drive and works well once the frame is properly adjusted(it flexes every time i move it)
I have .2 nozzles for my cr-10 mini, but I like keeping that one for quick printing
but the sunlu s8 might be replacing it
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 8:42:36 PM
|
| I'm impressed you were able to print a functional horn hook at all. I would have thought the spring tail would be far too thin. That probably explains the stiffness you report.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 8:48:39 PM
|
That's awesome.
Say, once you perfect your Tyco horn hook coupler design, can I order 100 of them?
And, perhaps I can place a special order for Tyco Sharknose horns?
"Let your light so shine before men, that they may see your good works, and glorify your Father which is in Heaven." - Matthew 5:16
Youtube Channel: www.youtube.com/rpmodelrailroads
Instagram: https://www.instagram.com/rp_model_railroads/
|
|
Country: USA ~
Posts: 4669 ~
Member Since: August 11 2017 ~
Last Visit: July 20 2023
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 11:08:50 PM
|
quote:I'm impressed you were able to print a functional horn hook at all. I would have thought the spring tail would be far too thin. That probably explains the stiffness you report.
Originally posted by DaCheez - November 03 2020 : 8:42:36 PM
|
no, I am pretty sure it is because of the wrong thickness where the hook fits in the pocket
so yeah, measure, replicate, and alter in fusion 360, print, test, adjust, reprint
the springtail inthe model I found is thicker/stiffer than a normal horn hook, but i think the difference in plastics makes up for it
heck, lets have some pics

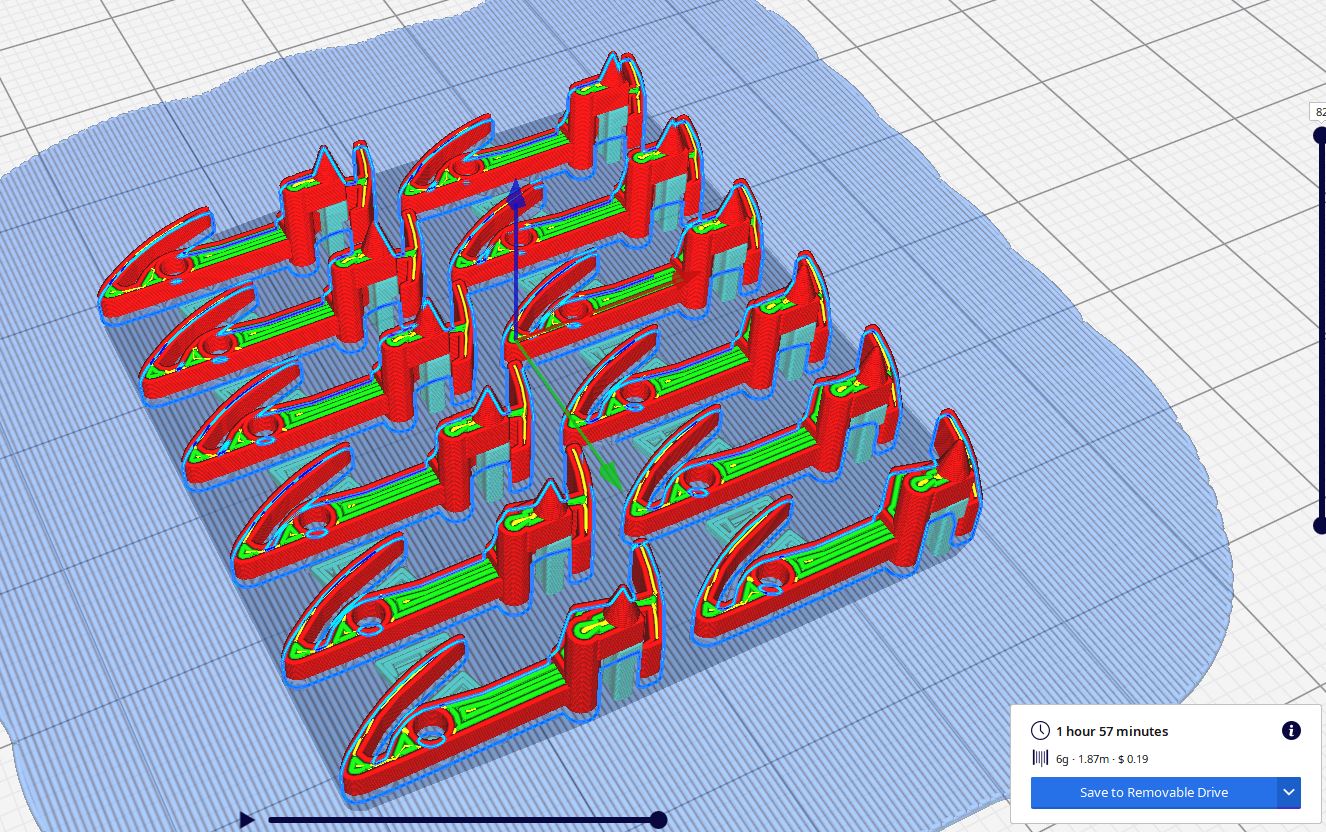

left is what is called printed on a raft, right is printed with a brim
the ones on the raft had rougher top surfaces, but the springs on them came out better, I thinkI am going to print that way from now on for tiny parts
black is a tyco hook for reference

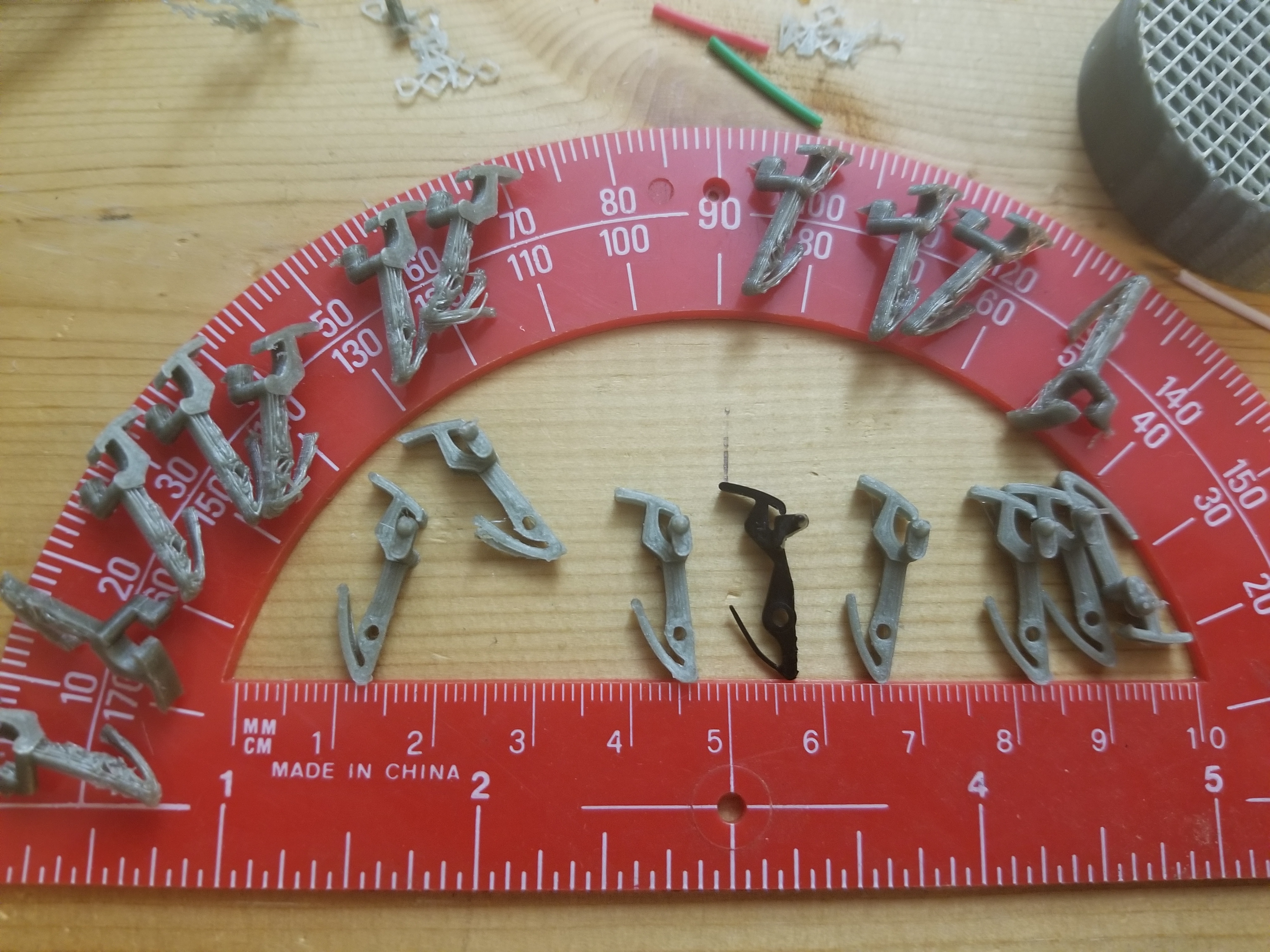

now to confuse you, the ones on the left are printed with a brim, see the nice glass smooth tops of the hooks?
(click for stupid-high level zoom)
the ones on the right are on the raft, notice how all of them got rough spots on the tops of the part that goes into the pocket, that is what is snug, and not easy to sand at this size
notice the springs in the hooks in the upper left

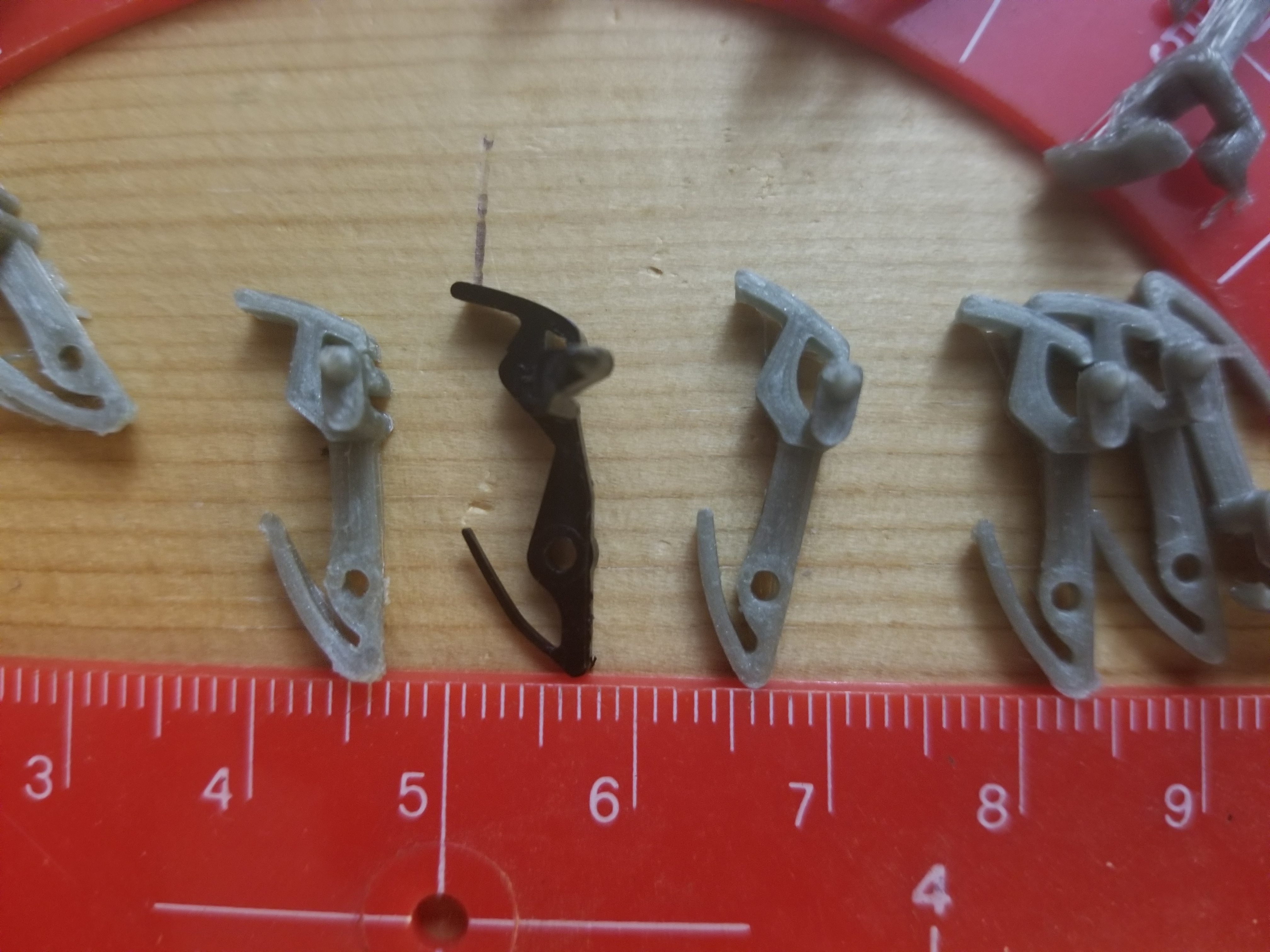

extreme close up notice the one on the right has a more consistent shape on the spring
also notice the decoupler peg is not in the right spot? try to run that thru a decoupler

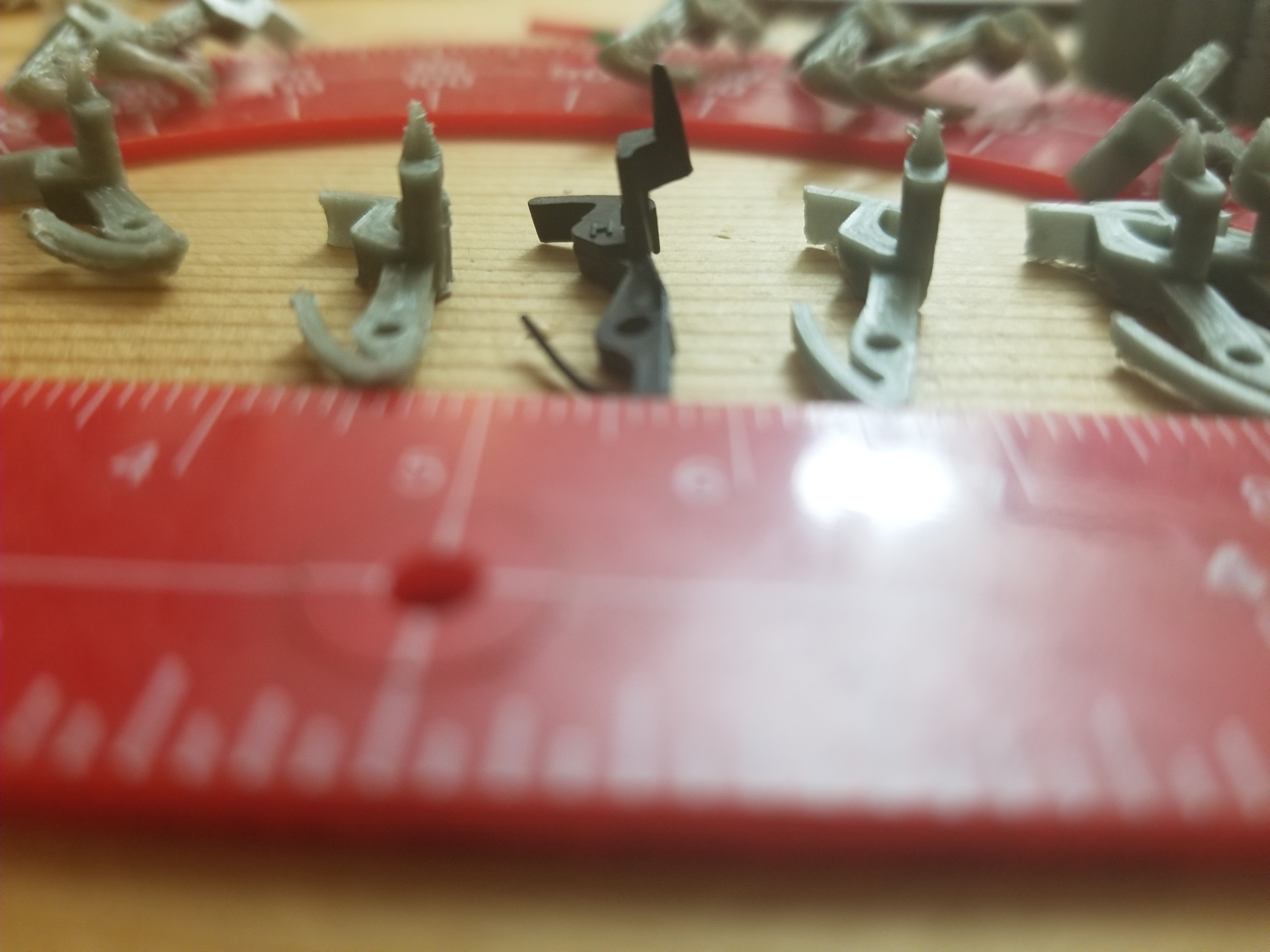

end view, look off?

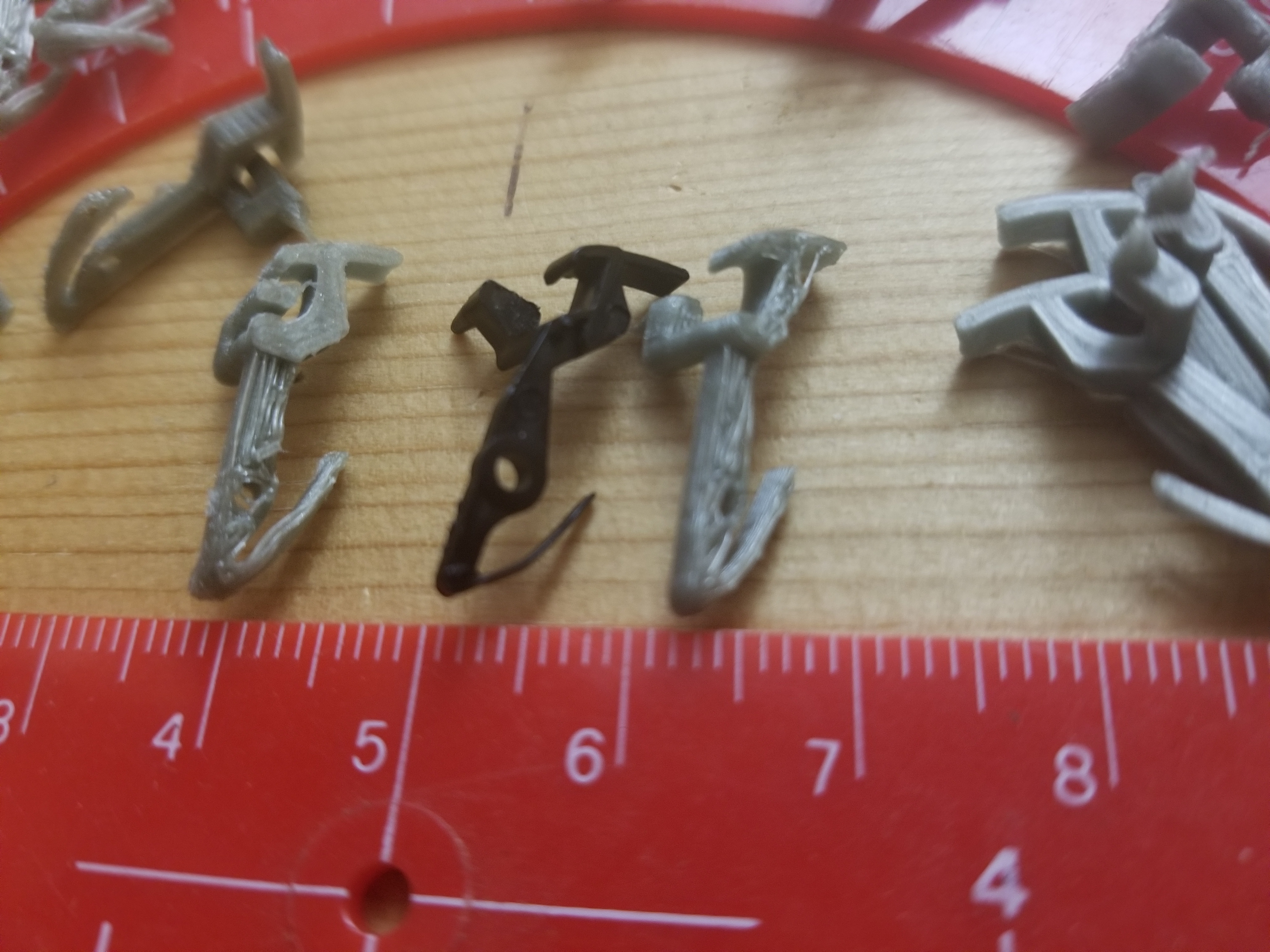

other side, nice and close, you see that the top of the hook is a different level than the rest of the part, this causes a mess as can be seen, it'll be one of the spots I experiment with in design
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 11:16:44 PM
|
quote:That's awesome.
Say, once you perfect your Tyco horn hook coupler design, can I order 100 of them?
And, perhaps I can place a special order for Tyco Sharknose horns?
Originally posted by RP model railroads - November 03 2020 : 8:48:39 PM
|
see other post as to what I'd need for pics for replication, clear close picture of nearly all angles with a ruler for reference, preferably straight on shots of top,front,side, just like blueprints
and I don't know about 100 of them, they might be kind of pricey (that price is wrong, it should be about double that, plus design work and handling)
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 11:23:18 PM
|
| hey, can anyone tell me what the decoupler peg does BESIDES decouple? looking closely at the tyco hook, I could design that without the peg and print it rightside up and eliminate a lot of problems
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 03 2020 : 11:32:06 PM
|
quote:That's awesome.
Say, once you perfect your Tyco horn hook coupler design, can I order 100 of them?
And, perhaps I can place a special order for Tyco Sharknose horns?
Originally posted by RP model railroads - November 03 2020 : 8:48:39 PM
|
wait, the airhorns?
yeesh, this look too skinny for "normal" 3d printing
I have been looking for an excuse to get a resin printer, but didn't Redwood say he had a resin printer?
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2020 : 12:09:31 AM
|
| The couplers look surprisingly good for a 0.4mm nozzle.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2020 : 08:51:29 AM
|
I see what you mean regarding the couplers, and that more trials are needed. But so far, so good.
"Let your light so shine before men, that they may see your good works, and glorify your Father which is in Heaven." - Matthew 5:16
Youtube Channel: www.youtube.com/rpmodelrailroads
Instagram: https://www.instagram.com/rp_model_railroads/
|
|
Country: USA ~
Posts: 4669 ~
Member Since: August 11 2017 ~
Last Visit: July 20 2023
|
Alert Moderator
|
|
|
|
Posted - November 04 2020 : 08:52:55 AM
|
I think that the bracket that holds the uncoupling peg also keeps one coupler from slipping out the top or bottom of another. I don't know if it's a design feature or just a fortunate side effect.
Carpe Manana!
|
|
Country: USA ~
Posts: 2410 ~
Member Since: September 17 2013 ~
Last Visit: August 29 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2020 : 10:36:05 AM
|
| Again can Plasticville parts be far away?
|
|
Country: USA ~
Posts: 1114 ~
Member Since: August 19 2011 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2020 : 1:23:06 PM
|
quote:Again can Plasticville parts be far away?
Originally posted by thesiding - November 04 2020 : 10:36:05 AM
|
not at all, just need pics with rulers for reference
should also be able to do prototypes, the only issue is that (ummm) the smallest available detail that can be reproduced will be (does math)...an inch?
assume .4mm resolution, times 87 for scale, then divide by 25.4 to get inches
that sounds wrong. I would guess that 3-5 inches might be the smallest detail you could see. 1 inch would mean that you could print a face and have the ears show, and I know that is hard to do at 64 scale (d&d figures)
how big are sharknose air horns, the skinny bit?
|
|
Country: USA ~
Posts: 169 ~
Member Since: October 09 2020 ~
Last Visit: September 24 2025
|
Alert Moderator
|
|
|
|
Posted - November 04 2020 : 2:28:01 PM
|
quote:Again can Plasticville parts be far away?
Originally posted by thesiding - November 04 2020 : 10:36:05 AM
|
What parts are you looking for? Details like doors and window frames could be handled by the current generation of home resin printers. Larger stuff like walls and roofs could be done on FDM printers with a slight loss of detail. For instance, if one wanted to reproduce the walls of the Plasticville Motel it shouldn't be a problem. The printer likely wouldn't be able to capture the dimpled effect that the original walls have, but otherwise the dimensions would be the same. An FDM printer could probably do the windows and doors as well, tbh.
For reference, here's an HO scale bus done entirely on an FDM printer. Note the detail of the doors. It isn't perfect, but the small windows and gap between the doors came out fine.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
|
|
Posted - November 05 2020 : 12:13:26 AM
|
| That’s pretty neat, Cheez.
|
|
Country: USA ~
Posts: 11505 ~
Member Since: December 09 2013 ~
Last Visit: September 22 2025
|
Alert Moderator
|
|
|
|
Posted - November 05 2020 : 1:00:14 PM
|
| Thanks Chops. It's based on an old CanCar bus, they were licensed to build Brill designs back in the '40s/'50s.
|
|
Country: Canada ~
Posts: 3422 ~
Member Since: September 22 2006 ~
Last Visit: September 17 2025
|
Alert Moderator
|
|
Home
Forums
Events Calendar
Forum Admins & Mods
Register
