 Posted - March 20 2018 : 10:40:55 AM
|
Today I was planning my next layout for May when I realised that I am short of good quality standard 9" straights....
I looked on e-bay but there were only two available and the postage accross the pond does make them rather expensive.
Then I thought about my stash of unused items, which included half a dozen very nice controller rails. Most have the controller attached, although one has the 'attached by wires' type.
I tried a quick experiment - removed the top by undoing the screws, used some tin snips to cut the connecting bars to the rails and then then a few quick strokes with a saw and the remains of the controller part was off.
After a few strokes with a file to clean up the cut I had a very nice complete 9" straight which is much needed and very useful. It differs only from a normal one in that it has a few openings on one side.
I still have five more controller rails, plus another three in my boxed sets, which will be left well alone.
What do others think? Is this sort of thing acceptable.
From my point of view I have turned something that I have never used and would never use (i don't use US-1 controllers at all) into something I need.....
James
|
Country:  United Kingdom ~
Posts: 128 ~
Member Since: December 10 2016 ~
Last Visit: December 04 2020
|
Alert Moderator
|
|
|
|
Posted - March 21 2018 : 08:22:48 AM
|
Here are a few images showing what I did:

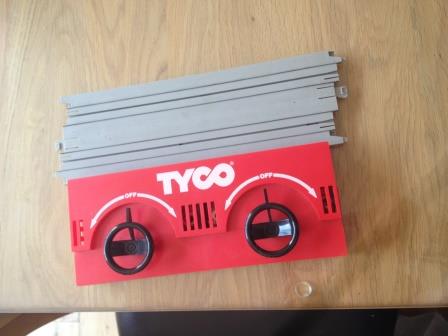

The built on controller from above

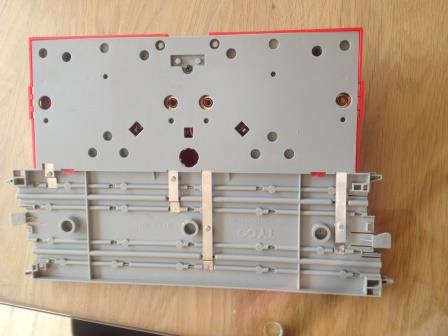

and from below

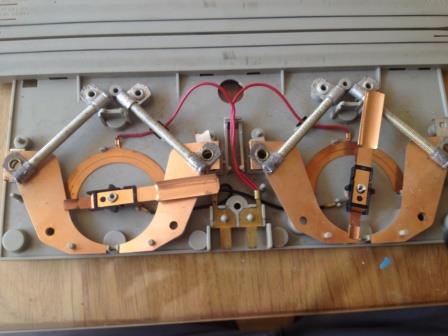

With the top removed showing the workings

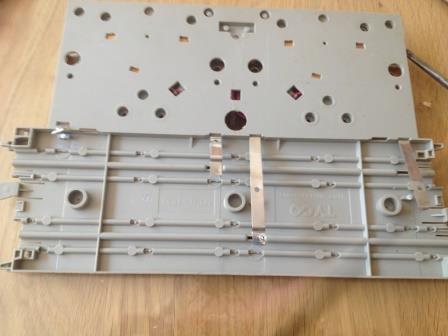

Removing the metal straps from the underside of the roadway

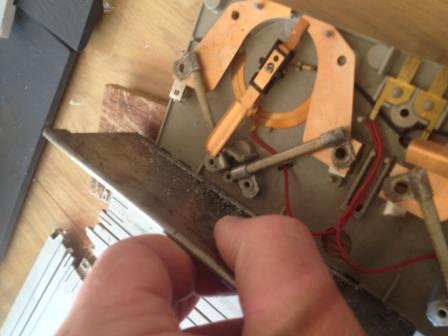

Removing the metal straps from the control gear to get then clear of the saw!

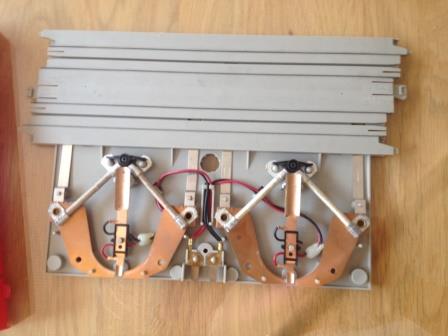

Cutting the control gear portion off the roadway

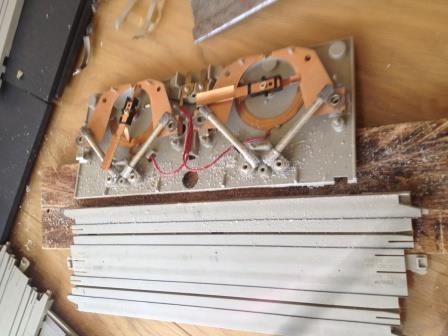

When the cut is complete.

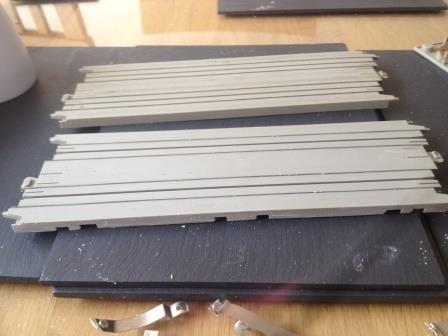

Two sections of roadway made from control sections. The side with the openings is that from the old control box side.
I now have five very good and useful 9" plain roadway sections for the next layout and not had to spend a single cent/penny!
Edited by - Highwayman97 on March 21 2018 08:28:42 AM
|
|
Country: United Kingdom ~
Posts: 128 ~
Member Since: December 10 2016 ~
Last Visit: December 04 2020
|
Alert Moderator
|
|
|
|
Posted - March 21 2018 : 11:19:05 PM
|
Seems like a good re-purpose to me, considering that they're not in demand, and you're not really destroying the piece, just some un-assembly from factory spec. :) And you might could resell the controller sections as stand-alone units to a slot car guy anyway.  I'd say you are doing a good thing, finding a use for something you have that wasn't being used, and not being destructive about it, either.
Jerry in the good ol' USA, makin' it great again.
" When life throws you bananas...it's easy to slip up"
|
