 Posted - August 22 2016 : 08:55:47 AM
|

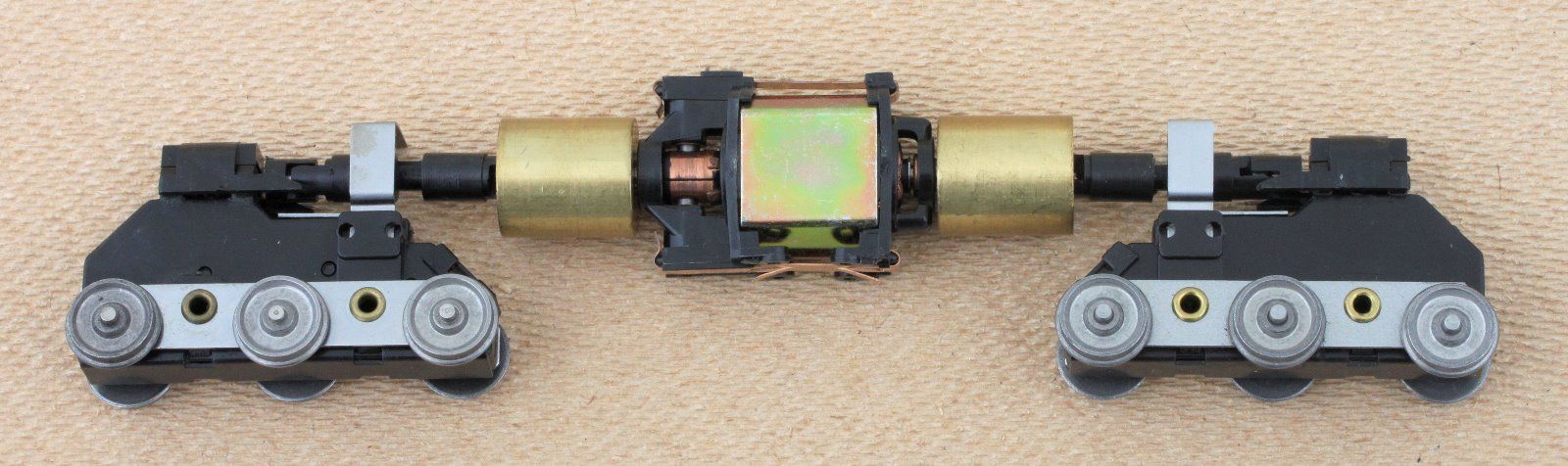

any idea what loco this drive train belongs to thanks ken
New, HO Scale Athearn Diesel, Twin Bogie Motor Drive, suitable for HO/OO and runs well.
Motor:
12v, 5-Pole, Flat Can Athearn Motor fitted with double brass flywheels and x4 fixing holes on the underside of the motor.
Motor shaft length = 9mm front & rear (3.2mm (1/8") diameter shafts)
Length = 22.2mm
Overall length including flywheels = 81.2mm
Diameter = 23.6mm
Across flats = 17.8mm
Bogie Drive Units:
Wheel diameter = 12mm (RP25 wheel profile)
Bogie wheel centres = 23.5mm + 23.5mm
Bogie wheel base = approx. in-between 135mm and 142mm
Bogie length = 61mm
Bogie overall height = 37.5mm
catfordken
if you cannot see the light at the end of the tunnel,try turning around
|
Country:  United Kingdom ~
Posts: 8294 ~
Member Since: September 28 2006 ~
Last Visit: October 20 2021
|
Alert Moderator
|
|
|
|
Posted - August 22 2016 : 7:05:52 PM
|
That's a tough one.
Without a chassis ( with part # ) it would be a guess.
I've never looked to see if trucks come with part numbers.
Evan
|
Country:  Canada ~
Posts: 505 ~
Member Since: August 09 2014 ~
Last Visit: January 15 2025
|
Alert Moderator
|
|
|
|
Posted - August 22 2016 : 8:57:23 PM
|
Yes it's hard to say for sure, but I would say based on the length and the 3-axle trucks that it's a U28/30/33C.
http://tycodepot.com/
|
|
|
|
|
Posted - August 23 2016 : 12:03:28 AM
|
That was the genus of Irv's later blue box and RTR products. Except for the small switchers all the motors were the same. The road unit B trucks were the same and the C trucks were the same. Only the frames, truck side frames and drive line length were different. The drive train could be a C truck U Boat or any of the EMD SD UnitS. You could pull a truck off of a Sd40 and put it on a U36C then swap the side frames.
Regards, John
I'm not a genus like Norman Einstein <> Babe Ruth
|
Country:  USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - August 23 2016 : 06:20:36 AM
|
thanks guys yes it is difficult ,guy is selling the complete thing as shown has about 10,will just buy one,handy spares,thanks again ken
