 Posted - September 08 2015 : 6:13:49 PM
|
[URL=http://s1228.photobucket.com/user/jdboomer904/media/Mobile%20Uploads/Screenshot_2015-09-07-23-18-21_zpssiqh4al7.png.html]  [/URL]

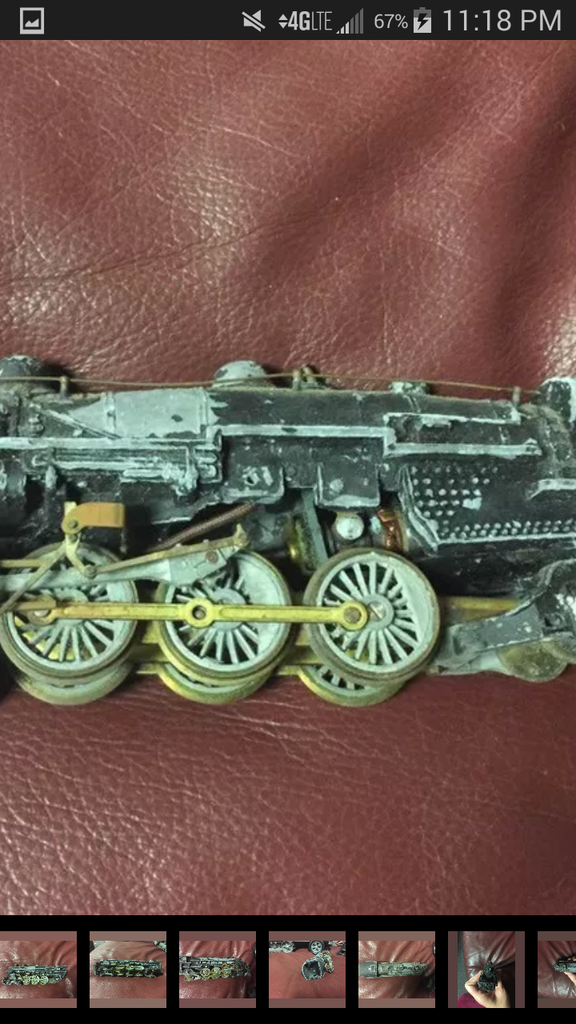

My Varney 4-6-2 needs a eccentric bolt. Hasn't arrived yet. What can I use for a replacement?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
 Posted - September 10 2015 : 12:40:22 PM
|
you need cal scale #190-384 eccentrics
and eccentric rivet #1-80007 from Bowser.

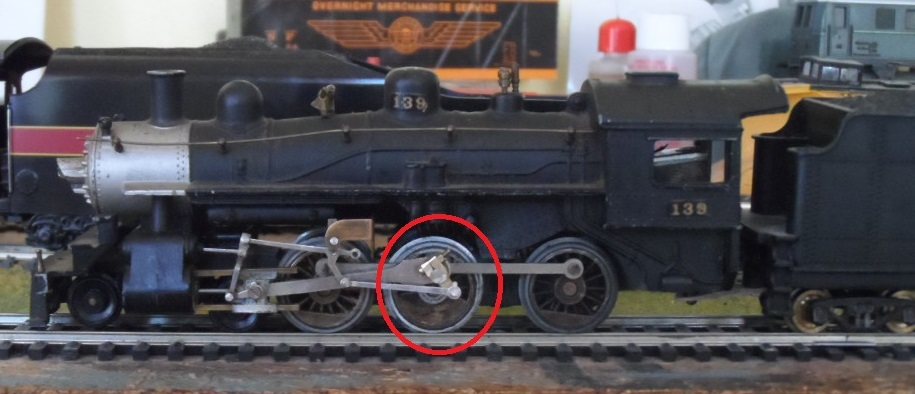

did this on my Varney casey jones
hardest part is to get out the old thread maybe you need rivet tool #1-36 too - erich
Edited by - Erich on September 10 2015 1:49:49 PM
|
Country:  Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - September 10 2015 : 1:42:52 PM
|
thats what I did with the parts I listed above
any other parts you need like air pump and feedwater heater? there are selley parts what fit - erich
Edited by - Erich on September 10 2015 1:55:27 PM
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - September 10 2015 : 4:17:47 PM
|
Thanks Erich! I've got another boiler with a nice detail job started I'll use. It's got a pin and not a rivet it seems. I have a donor Casey Jones with valve gear. May try using the bolt.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - September 10 2015 : 4:31:36 PM
|
Thats Fine when You have a donor One.
You can use the Crank Pin which has a
Hole for a Pin to Secure the crank! In this Case
You dont Need the Parts I sugested! -erich
Edited by - Erich on September 10 2015 4:34:23 PM
|
|
Country: Austria ~
Posts: 1046 ~
Member Since: December 03 2008 ~
Last Visit: February 14 2025
|
Alert Moderator
|
|
|
|
Posted - September 11 2015 : 1:03:37 PM
|
I'll definitely need a rivet! My rivets on hand are too short to rivet the eccentric and it's linkage.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: March 12 2026
|
Alert Moderator
|
|
|
|
Posted - September 13 2015 : 08:32:11 AM
|
| http://www.bowserorders.com/.sc/ms/dd/ee/11116797/Bowser%20ECCENTRIC%20RIVET
|
|
