 Posted - March 11 2015 : 11:03:42 AM
|

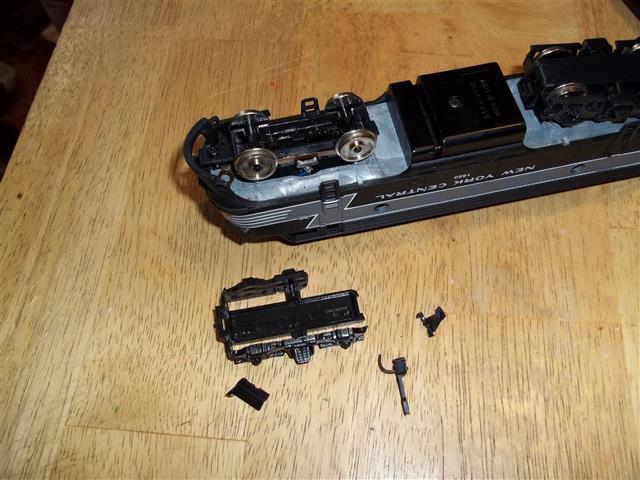

I picked up this Mantua F7 from eBay, and when opened I found that the front wheel frame is broken. Does anyone know where or if I may be able to pick one of these up? Hoping someone can help, I really want to keep this for a future project.
Thanks Blane
Edited by - blaneo on March 11 2015 11:08:05 AM
|
Country:  USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
|
Posted - March 11 2015 : 11:29:39 AM
|
I may have one in my parts bin. I'll have to check when I get home.
Tim
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - March 11 2015 : 2:19:31 PM
|
quote:I picked up this Mantua F7 from eBay, and when opened I found that the front wheel frame is broken. Does anyone know where or if I may be able to pick one of these up? Hoping someone can help, I really want to keep this for a future project.
Thanks Blane
Originally posted by blaneo - March 11 2015 : 11:03:42 AM
|
I have a couple of different ones, post a picture showing what the side frame looks like.
|
|
Country: USA ~
Posts: 338 ~
Member Since: February 08 2013 ~
Last Visit: January 27 2019
|
Alert Moderator
|
|
|
|
Posted - March 11 2015 : 6:33:59 PM
|
Well,I see your problem right off the bat - that is NOT a Mantua! Or a Tyco. at least, not a vintage one.  Hard to tell without a further close-up, but that's not how the (original) Mantua is designed. Does it say that on the center weight? Looks like a bachmann to me.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - March 11 2015 : 7:02:48 PM
|
quote:Well,I see your problem right off the bat - that is NOT a Mantua! Or a Tyco. at least, not a vintage one. Hard to tell without a further close-up, but that's not how the (original) Mantua is designed. Does it say that on the center weight? Looks like a bachmann to me.
Jerry
Originally posted by AMC_Gremlin_GTÂ -Â March 11 2015Â :Â 6:33:59 PM
|
That's what I was thinking, that it looked just like a newer Bachmann.
http://tycodepot.com/
|
|
|
|
|
Posted - March 11 2015 : 9:16:26 PM
|
| Hey Blaneo, Picture looks like you might have all the pieces there? While you're waiting to find a new part, you might try some JB Weld or superglue (sparingly); maybe with some sort of brace you can hide (if needed; tiny scrap) . . . you never know . . . might just hold together. Sometimes that kind of thing works. And sometimes, you can keep the repair fairly hidden. However, I can dig that you might ultimately want an undamaged part.
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
blaneo
Switcher
Status:
offline
| |
Posted - March 11 2015 : 9:34:18 PM
|
quote:I may have one in my parts bin. I'll have to check when I get home.
Tim
Originally posted by wildecoupe - March 11 2015 : 11:29:39 AM
|
That would be great, I would certainly appreciate the effort of looking when you have time. Looks as though the GP 20 from the same time period used the same truck frame, so there is a little more hope.
Thanks Blane
|
|
Country: USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
blaneo
Switcher
Status:
offline
| |
Posted - March 11 2015 : 9:40:38 PM
|
Here is a couple more photos. And yes it is a Mantua, from the 90"s.
I thought about using some type of adhesive to see if it would hold, and I will do that. The frame snapped apart right at the clip that holds it all together. So I think it will probably just snap again once I apply pressure to attach it back onto the gearbox. But we will give it a try.
Blane is the name,
Trains are the game.
|
|
Country: USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
|
Posted - March 11 2015 : 9:43:23 PM
|
Interesting! Dead ringer for a later Bachmann at first glance, but much clearer there.
http://tycodepot.com/
|
|
|
|
|
Posted - March 11 2015 : 10:27:42 PM
|
quote:Interesting! Dead ringer for a later Bachmann at first glance, but much clearer there.
Originally posted by JNXT 7707Â -Â March 11 2015Â :Â 9:43:23 PM
|
Yes, I have a couple of newer Mantua engines, but all steam, not diesel. First time I'd seen a '90's Mantua diesel before. Nothing like the originals. Wouldn't mind seeing more details of the motor drive system on it, either.
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
blaneo
Switcher
Status:
offline
| |
Posted - March 12 2015 : 08:22:50 AM
|
It is very close to the Bachmann. So much so that I started looking at their frame to see if it would work. I do have a few of their engines, and the frame looks as though it might possibly work. The detail of the frame is different, and the Manuta has the truck mounted coupler. The Bachmann has a body mounted coupler, but that frame looks as though it might slip over the coupler tab on the Mantua truck. I will take a photo of the drive when I get a chance to take the two apart and see if that frame will work. I would still like to have an original, and I may just have to pick up another model to get it. This is the second of these that I have purchased, and of course I can't test drive this one, but the first one runs nice and smooth with no hesitation at slow speeds.
Blane is the name,
Trains are the game.
|
|
Country: USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
|
Posted - March 12 2015 : 09:12:32 AM
|
Didn't get a chance to dig through my parts and will be heading out of town for a few days. I'll take a look Sunday when we get back.
Tim
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - March 13 2015 : 3:30:00 PM
|
| The 90s Mantua locos were great runners. Pulled great. Smooth motors.
|
|
Country: USA ~
Posts: 332 ~
Member Since: August 28 2010 ~
Last Visit: April 23 2020
|
Alert Moderator
|
|
|
|
Posted - March 13 2015 : 7:32:08 PM
|
| Can you possibly glue it while it's in place . . . so that you don't have to pressure it too much to put it in place after it's glued?
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
|
Posted - March 15 2015 : 4:04:41 PM
|
What I have is close, but not quite. I'd try gluing in-situ and see if it holds.
Tim
|
|
Country: USA ~
Posts: 259 ~
Member Since: October 23 2014 ~
Last Visit: March 28 2017
|
Alert Moderator
|
|
|
|
Posted - March 15 2015 : 5:45:31 PM
|
I'm with JNXT Jerry, I would like to see the body off and look at the drive train. This model may be different, but may share parts with other brands.
Found info on Mantua F7 on line. Looks like a Mehano drive. A truck from an 8 wheel drive EMD truck should provide parts. MP F2, F3, or LL GP9 or IHC/AHM GP18. Make sure the truck is from an 8 wheel drive mehano model. This is an educated guess.
Regards John
Edited by - JRG1951 on March 15 2015 7:05:32 PM
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - March 15 2015 : 7:36:43 PM
|
quote:| I picked up this Mantua F7 from eBay, and when opened I found that the front wheel frame is broken. Does anyone know where or if I may be able to pick one of these up? Hoping someone can help, I really want to keep this for a future project. |
Hey Blaneo. Try some Testors Plastic Cement. It comes in a little bottle in liquid form with a brush. You brush it on the surfaces you want to bond and then hold them together for 20 seconds. It basically melts plastics together. I've had good luck repairing cracked and broken plastic shells, buildings, ladders, etc.
|
Country:  Canada ~
Posts: 3412 ~
Member Since: September 22 2006 ~
Last Visit: April 10 2025
|
Alert Moderator
|
|
|
|
Posted - March 15 2015 : 9:32:14 PM
|
| Yeah, that liquid "weld" can be good given the right fit of the pieces. It will melt them out of shape, though, if you don't get it right in the first couple of tries. On the other hand, super glue can be carefully peeled away to "try it again".
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
blaneo
Switcher
Status:
offline
| |
Posted - March 27 2015 : 9:02:23 PM
|
Sorry for the delay, but I had to wait and see how the seller wanted to handle this issue. They offered me a partial refund for the problem.

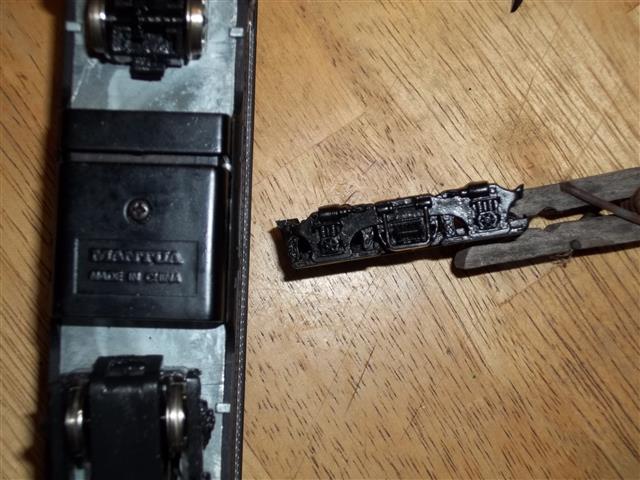

I tried the testors liquid plastic cement, and it did a great job of putting all the pieces back together again. But once I went to snug up the coupler screw I heard a snap. Luckily the truck frame didn't snap apart, only the section where the screw goes into the truck frame. Which as soon as it happened, I realized that there shouldn't be any screw holding the coupler in place. I don't think the hole is the correct size for the screw used. I don't know why I didn't catch that before. As you can see in the first photo, there shouldn't be a screw used to hold the coupler in place, there is no need for it, the truck frame would have held it in place on it's own. I think that whoever did the coupler swap actually broke this to begin with, and that the seller and I just happen to be the lucky recipients of someones wrong doing. Any way, I think it will be okay now, as I have made a few laps around the oval with it, and the truck frame has held together. I do plan to add a thin piece of styrene to the top of the truck frame to reinforce it when I clean and lubricate the model before adding a decoder to it.

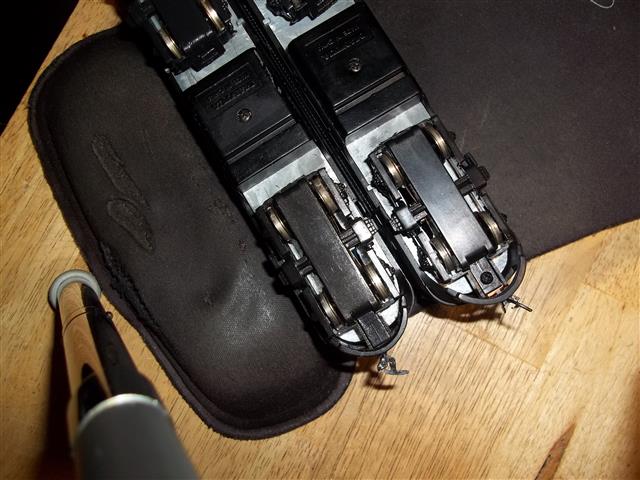

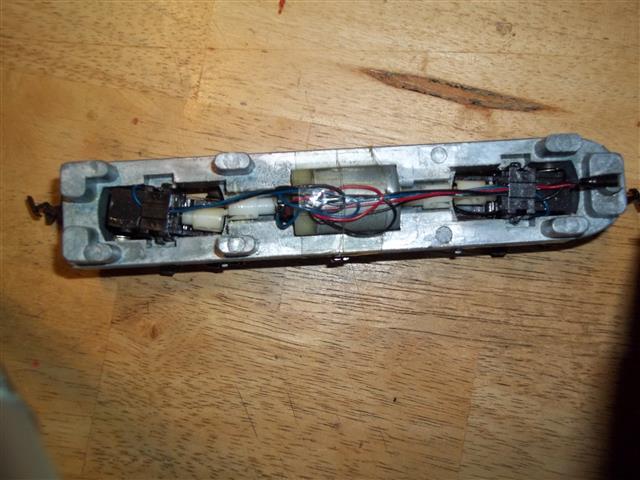

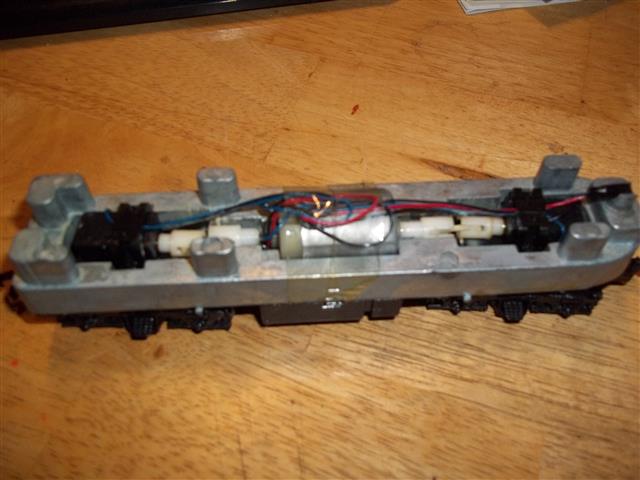

Pics two and three show the drive line for those that asked.
Thanks for the help and comments.
|
|
Country: USA ~
Posts: 96 ~
Member Since: December 03 2012 ~
Last Visit: June 24 2019
|
Alert Moderator
|
|
|
|
Posted - March 27 2015 : 9:09:26 PM
|
Thanks for posting the pics!
First look I have had at one of those Mantuas. Looks pretty stout! I've been on the lookout for them lately
http://tycodepot.com/
|
|
|
|
|
Posted - March 27 2015 : 9:54:58 PM
|
That's the late 90's red box Mantua with the Mehano drive that I spoke about in the other thread. This is what ran at Northlandz, and Tyler mounted a huge ad campaign to promote them. That's why he was distancing the company from 70's CF Tyco and the old pancake trucks. I have the GP20 version, and it's a very smooth customer. They finally wound up in the Model Power line of locos with reduced chassis weight and minus the Flywheel, IIRC.
The trucks are the same as old AHM Mehano. Unless they made some dimensional changes, the Blomberg sideframes from an old AHM GP-18 should be an exact replacement.
