 Posted - January 01 2015 : 11:36:50 PM
|
I have a Tyco No. 242 "Dixie Belle" Western & Atlantic 4-6-0 that was missing the black plastic motor cover that goes inside the cab. I got one on ebay and upon attempting to install it found out I am not sure of the correct routing orf the wire to the tender. Does it go beside or underneath the cover, and does the wire go straight out the rear of the cab or does it go down thru the gap between the motor and the frame and then out and rearward beside the dogbone connector to the tender? I have looked for clear photos of this but hav had no luck.
Edited by - a6m5zerosen on January 02 2015 12:05:37 AM
|
Country:  USA ~
Posts: 103 ~
Member Since: August 09 2010 ~
Last Visit: December 06 2015
|
Alert Moderator
|
|
|
|
Posted - January 02 2015 : 06:28:01 AM
|
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - January 02 2015 : 5:46:29 PM
|

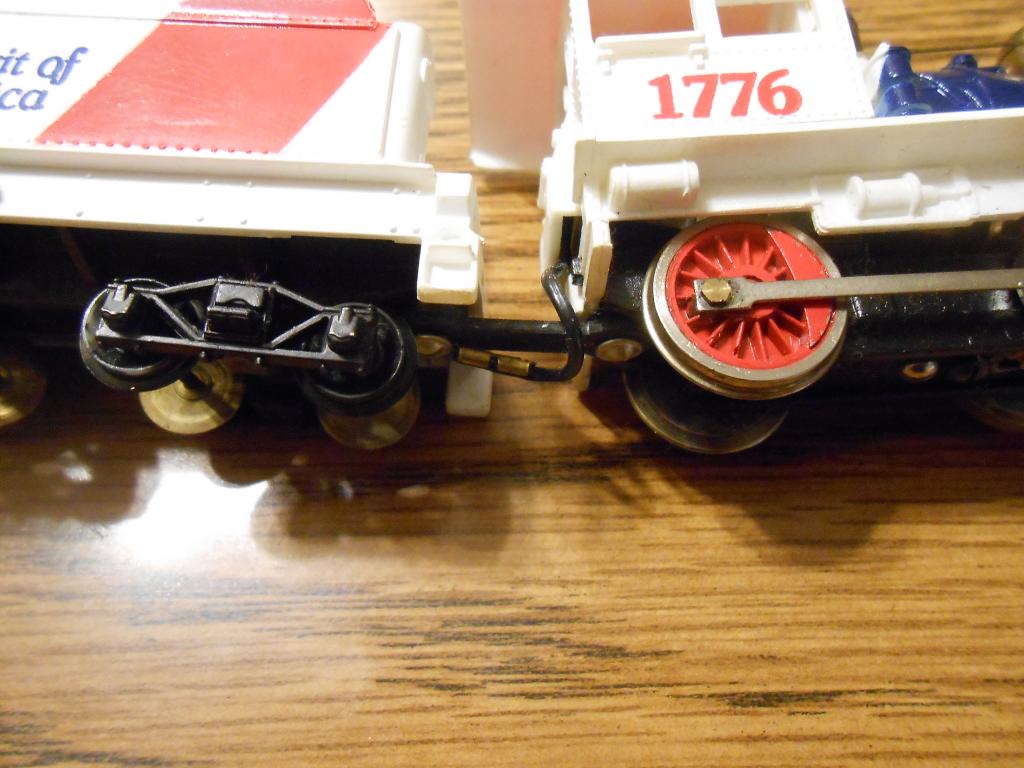

RDC's example shows what I have on my loco's.
It's hard to hide a "thick" cord/pipe.
You may be able to paint a matching shade on the wire insulation.
Perhaps it could act as the water pipe connection.
John
I don't have a one track mind. It depends on the turn-out.
"I love your catenary!"
Is that a power-trip or just another pick-up line?
|
Country:  Canada ~
Posts: 1124 ~
Member Since: December 15 2006 ~
Last Visit: January 30 2023
|
Alert Moderator
|
|
|
|
Posted - January 03 2015 : 12:04:36 AM
|

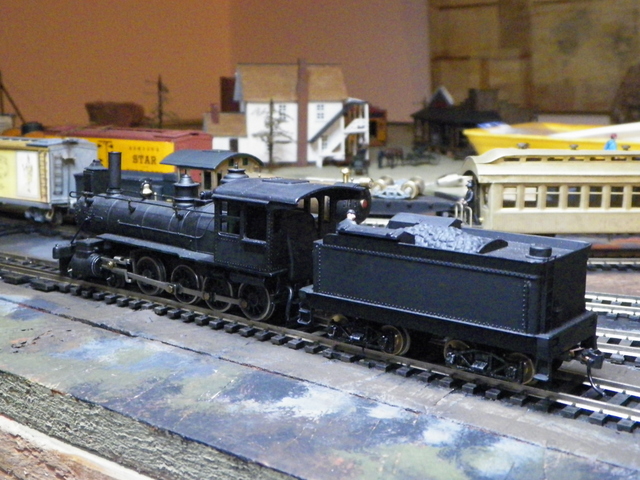

Hi Patrick, I hope you can tell from this photo how the wire is running. Basically, I got into the habit with the 4-6-0's that I have of drilling a small hole (1/16") just below the firebox/motor cover on the left hand side of the cab and routed the wire through that. What I found otherwise is that the wire tension kept pushing the firebox/motor cover out of the cab.
Routing the wire like this seems tidier to me, but it does make it more fussy to disassemble things, though you could go so far as getting some of those miniature male/female wire connectors.
Otherwise, the wire runs along the top of the left side of the motor and out under the firebox/motor cover.
|
|
