 Posted - September 30 2014 : 8:43:07 PM
|
I"ve been working on a project for one of the forum members. It's a custom made boiler for 0-4-0 tank engine. I decided to use aluminum because it's cheaper than brass and easy to machine.

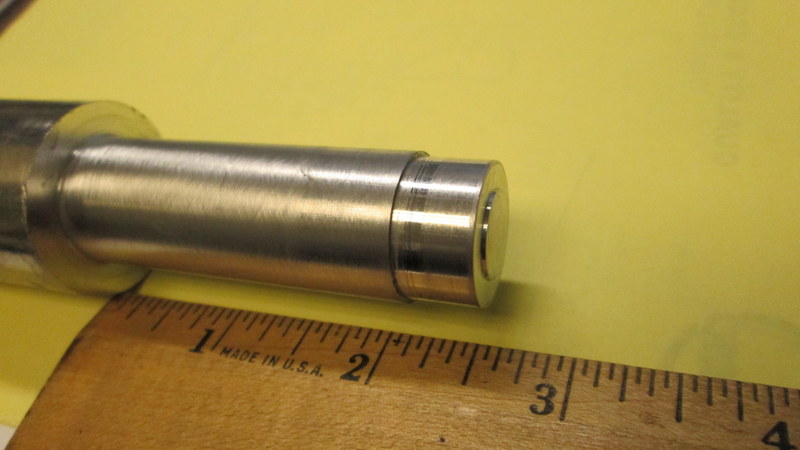

Here's the blank after basic machining.

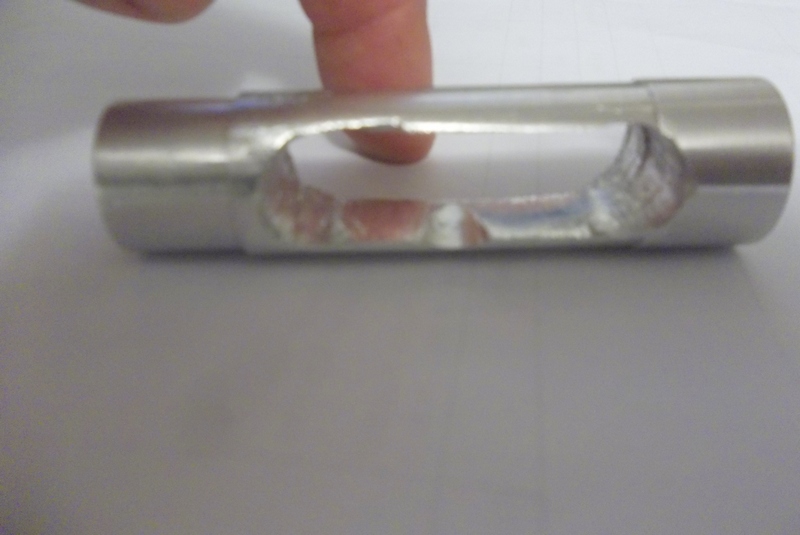

Then the boiler needed to be hollowed out for the motor. I intended to do this much neater on a large milling machine. But, I ended up using a big drill and a large file.
Unspoken expectations are premeditated failures.
|
Country:  USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 8:52:52 PM
|

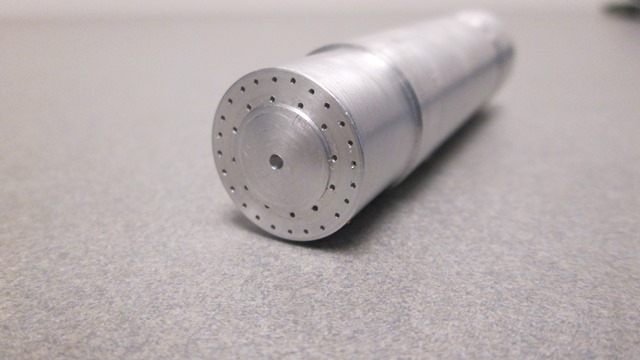

The smokebox front was then drilled for the tiny nuts and washers and the numberboard location.

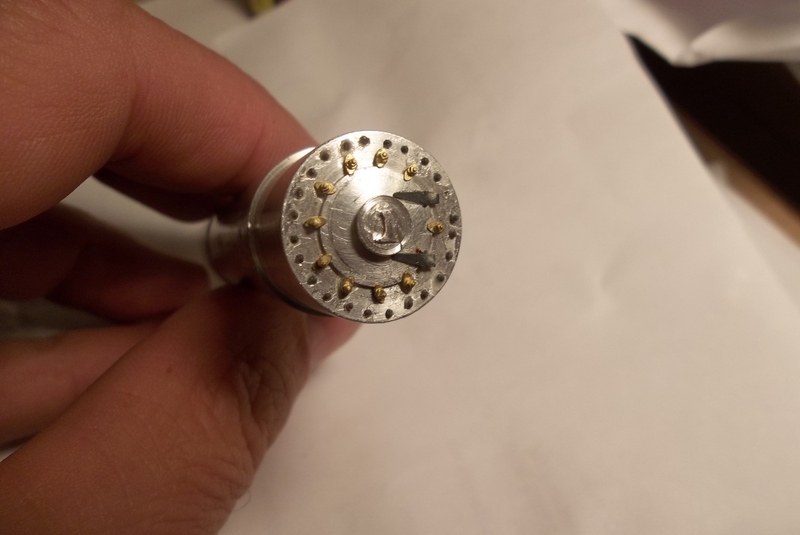

detail nuts and bolts added:

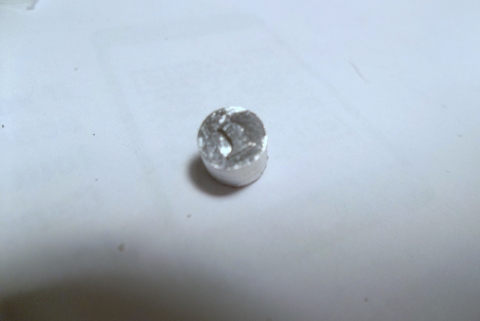

Numberboard machined

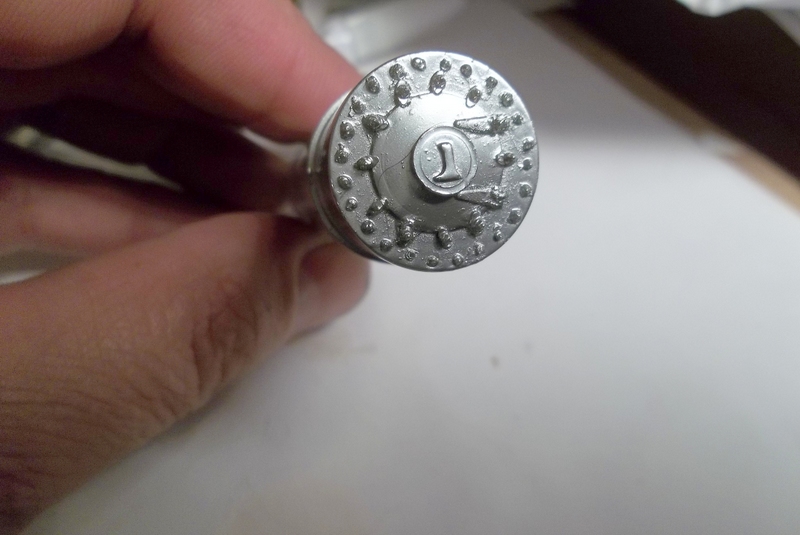

Just prior to painting:
Unspoken expectations are premeditated failures.
Edited by - NC shortlines on September 30 2014 8:54:31 PM
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 9:01:02 PM
|

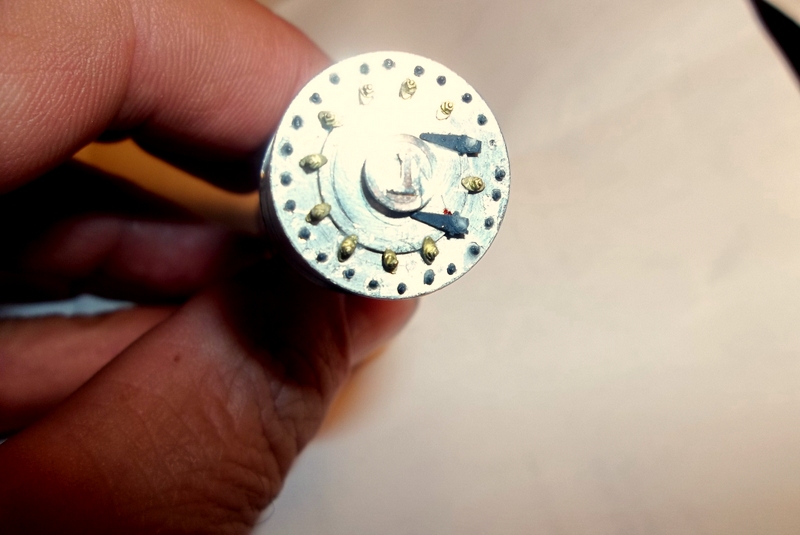

Another picture before painting
Painted:
(it looks lumpy but it's mostly lighting and camera flash. It turned out o.k., I think).
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 9:06:09 PM
|
Prototype locomotive. Not the best picture but you get the idea.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 9:19:48 PM
|
Awesome boiler, NC. It looks just like the one on the actual thing. And what railroad owned this specific locomotive you're trying to model?
-Steve
"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
|
|
Country: USA ~
Posts: 3533 ~
Member Since: February 17 2014 ~
Last Visit: January 11 2023
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 10:02:12 PM
|
quote:Awesome boiler, NC. It looks just like the one on the actual thing.And what railroad owned this specific locomotive you're trying to model?
Originally posted by kovacste000Â -Â September 30 2014Â :Â 9:19:48 PM
|
Folsom Prison in California.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 10:07:48 PM
|
quote: quote:Awesome boiler, NC. It looks just like the one on the actual thing.And what railroad owned this specific locomotive you're trying to model?
Originally posted by kovacste000Â -Â September 30 2014Â :Â 9:19:48 PM
|
Folsom Prison in California.
Originally posted by NC shortlines - September 30 2014 : 10:02:12 PM
|
Ah, that's what it was. Thanks for reminding me.
-Steve
"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
Edited by - kovacste000 on September 30 2014 10:08:05 PM
|
|
Country: USA ~
Posts: 3533 ~
Member Since: February 17 2014 ~
Last Visit: January 11 2023
|
Alert Moderator
|
|
|
|
 Posted - September 30 2014 : 10:13:06 PM
|
Beautiful work, NC. You got those bolt holes perfectly spaced.
Btw, we all know who it's for.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - September 30 2014 : 11:01:42 PM
|
thanks, guys.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - October 01 2014 : 08:36:07 AM
|
Good project. It is coming out OK.
frank
toptrain
" It's a Heck of a Day " !!!
|
|
Country: USA ~
Posts: 7516 ~
Member Since: August 07 2008 ~
Last Visit: June 15 2025
|
Alert Moderator
|
|
|
|
Posted - October 01 2014 : 11:39:55 AM
|
| Thanks. That paint was a little too lumpy. I"ve since stripped and repainted it. No pics, though. It's already in the hands of it's new owner.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - October 01 2014 : 11:53:46 PM
|
| Cool work. Thanks for posting with the pictures.
|
|
Country: USA ~
Posts: 2087 ~
Member Since: March 16 2013 ~
Last Visit: July 05 2018
|
Alert Moderator
|
|
|
|
Posted - October 02 2014 : 5:06:59 PM
|
| Nice work. It'll be a sweet little locomotive when it's done.
|
|
Country: USA ~
Posts: 1084 ~
Member Since: July 07 2011 ~
Last Visit: June 11 2025
|
Alert Moderator
|
|
|
|
Posted - December 21 2014 : 11:30:15 PM
|

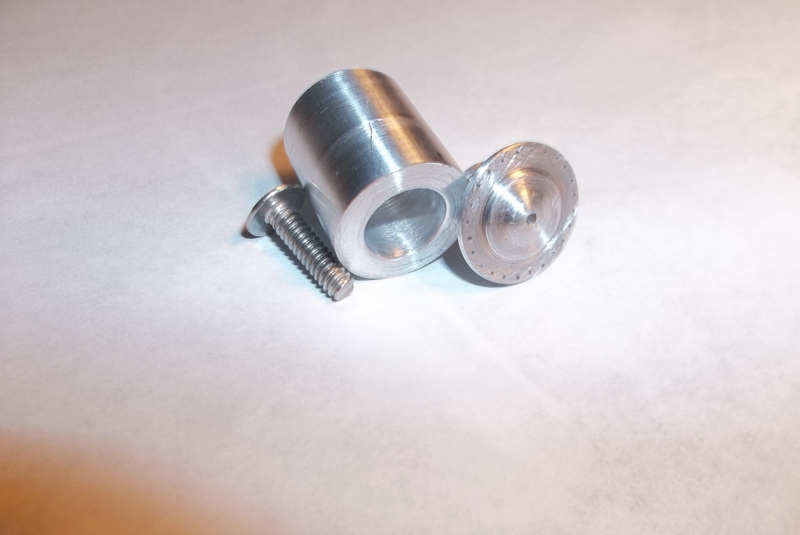

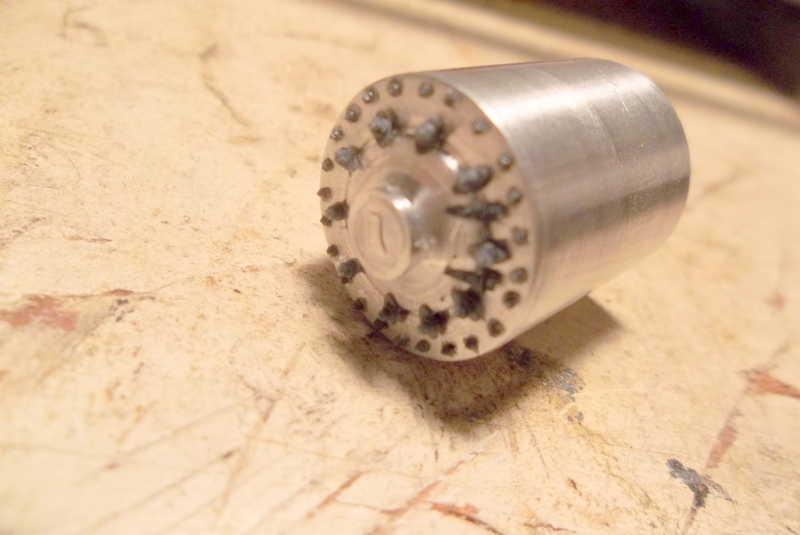

Redo on the smokebox. After some discussion with the locomotive builder, I decided to make another smokebox for the 0-4-0T project. This time I made a removable smoke box cover, just like TYCO steam locomotives. And the numberboard is removable. The cover or door is held on by a screw which can also be used to bolt this to the boiler, if need be. Just needs paint.
|
|
