 Posted - June 25 2014 : 9:57:26 PM
|

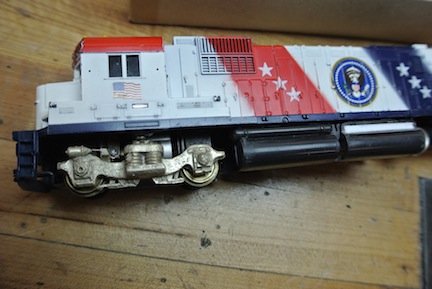

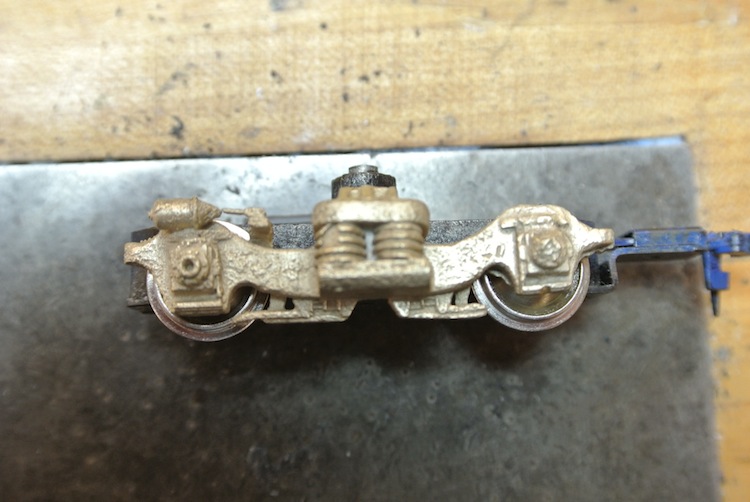

Several months ago I stated that I would be casting new High Adhesion trucks for the Tyco C-430 with the correct axle spacing for the Tyco/Mantua MU-2 drive. That project became a reality today!      I am also currently working on a corrected fuel tank that began as a C-630 tank that has been sectioned and shortened for the C-430. I will be using this as a master to make an injection mold so that i can cast these pieces in brass as well. All of these components will be nickel plated when complete.
Edited by - metalsmith1 on June 25 2014 10:01:53 PM
|
Country:  USA ~
Posts: 867 ~
Member Since: December 21 2013 ~
Last Visit: December 08 2016
|
Alert Moderator
|
|
|
|
Posted - June 26 2014 : 4:21:36 PM
|
Outstanding. Very nicely done.
Unspoken expectations are premeditated failures.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - June 26 2014 : 5:06:15 PM
|
Amazing work.
http://tycodepot.com/
|
|
|
|
|
Posted - June 26 2014 : 6:30:55 PM
|
Looking good!
-Steve
"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
|
|
Country: USA ~
Posts: 3533 ~
Member Since: February 17 2014 ~
Last Visit: January 11 2023
|
Alert Moderator
|
|
|
|
Posted - June 26 2014 : 11:37:47 PM
|

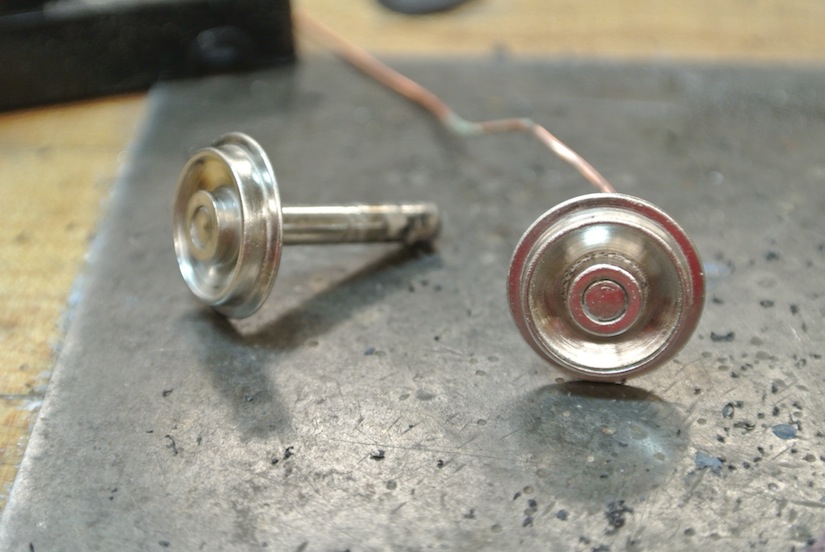

These are factory Tyco brass wheels that I nickel plated for cleaner running. The process took about ten minutes not counting disassembly time.
Here you see the pour of the molten brass using the Vacuform machine.
|
|
Country: USA ~
Posts: 867 ~
Member Since: December 21 2013 ~
Last Visit: December 08 2016
|
Alert Moderator
|
|
|
|
 Posted - June 27 2014 : 7:32:52 PM
|

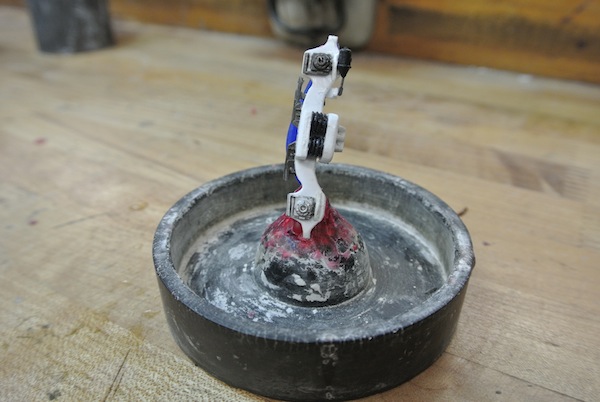

Very impressive work! So you shaped the sideframe out of styrene and added detail parts like the journals and brake cylinder for the master?
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - June 27 2014 : 8:43:52 PM
|

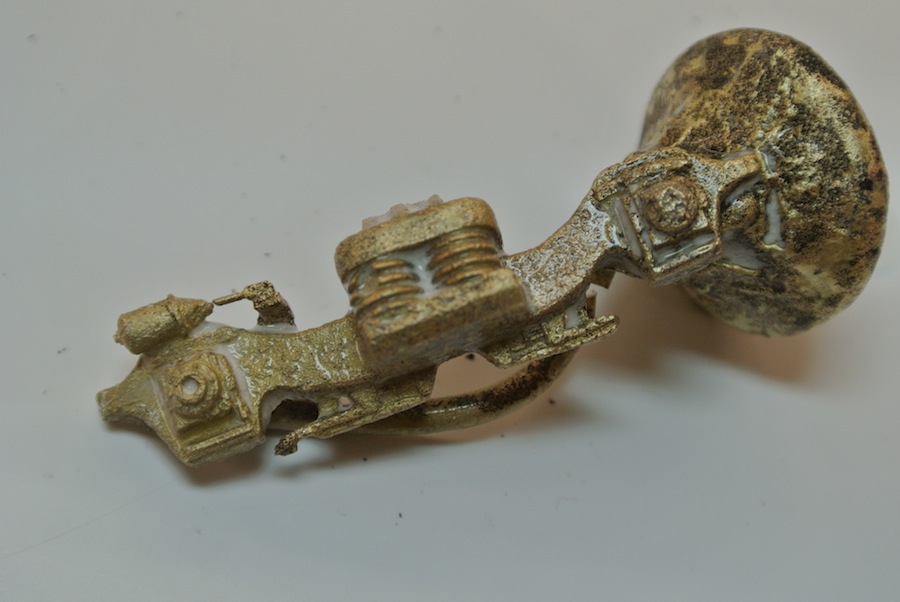

| That is correct. The journals are from an old set of Atlas flexicoils and the main springs are fashioned from plastic screws. I went slightly larger than prototype for the springs and perches to help disguise the extra long axle spacing of the MU-2 trucks. I will be making a new master that will be specific to the Tyco P/T drive as the spacing is even longer. Other plans in the works are the high adhesion type C truck for the C-630 with the P/T drive.
|
|
Country: USA ~
Posts: 867 ~
Member Since: December 21 2013 ~
Last Visit: December 08 2016
|
Alert Moderator
|
|
|
|
Posted - June 27 2014 : 9:16:28 PM
|
Very innovative, Steve. Cal Scale has nothing on you.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - May 21 2021 : 11:14:07 AM
|
Those trucks are awesome. Sorry it took so long for me to respond! Tyco and Mantua 430s would be proud to wear a set of these.
Alco Fan
|
|
Country: USA ~
Posts: 2496 ~
Member Since: August 03 2006 ~
Last Visit: December 06 2021
|
Alert Moderator
|
|
|
|
Posted - May 29 2021 : 01:48:14 AM
|
Wow, really nice work!
Proudly keeping Tyco Pluggers out of landfills since 2016
|
|
Country: USA ~
Posts: 818 ~
Member Since: December 26 2009 ~
Last Visit: March 20 2024
|
Alert Moderator
|
|
|
|
Posted - May 29 2021 : 10:47:41 AM
|
| Wow, that takes scratch building to a new level!
|
|
Country: USA ~
Posts: 11193 ~
Member Since: December 09 2013 ~
Last Visit: April 19 2024
|
Alert Moderator
|
|
