 Are those old Athearn rubber band drives good?
   All users can post NEW topics in this forum
   All users can reply to topics in this forum
Next Page
 Printer Friendly
Author Previous Topic: Athearn 25th Commerative Set Topic Next Topic: Ernst Gears and Hustlers
Page: of 2

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 19 2014 :  10:01:54 AM Link directly to this topic  Show Profile  Add kovacste000 to Buddylist
Ya, how good are they? I keep seeing them at train shows and am really tempted to pick one up. I almost got this Athearn rubber band drivable coach that didn't work when I put it on the tracks so I didn't buy it. Was that just bad luck or are they all that bad?
-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."

Edited by - kovacste000 on March 19 2014 12:49:46 PM
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator

shaygetz
Big Boy


Status: offline

 Posted - March 19 2014 :  2:20:29 PM Link directly to this reply  Show Profile  Add shaygetz to Buddylist
I'm assuming you're talking about this one...



Once you find a source of drive bands, I think they're great. I use 1/2" rubber bands from Staples myself...smooth running, quiet, with a delightful "boing-oing-oing-oing" back-and-forth motion like a cartoon when I rev it up, then throw the brakes.
 Posts: 2465  ~  Member Since: April 15 2007  ~  Last Visit: December 01 2023 Alert Moderator  Go To Top Of Page

SOU2645
Big Six

Status: offline

 Posted - March 19 2014 :  3:21:14 PM Link directly to this reply  Show Profile  Add SOU2645 to Buddylist
They are kind of a pain in the neck having to diassemble the trucks on units (F7's and GP7's being the worst) but they are peppy and reliable. I have 20+ Hustlers, 3 plastic RDC's, 1 GE Rectifier Electric (never assembled mint in box), about 5 F7's and about 6 GP7's with them.

Larry
 Country: USA  ~  Posts: 251  ~  Member Since: May 04 2010  ~  Last Visit: April 22 2016 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 19 2014 :  4:07:58 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
They are kind of a pain in the neck having to diassemble the trucks on units (F7's and GP7's being the worst) but they are peppy and reliable. I have 20+ Hustlers, 3 plastic RDC's, 1 GE Rectifier Electric (never assembled mint in box), about 5 F7's and about 6 GP7's with them.

Larry

Originally posted by SOU2645 - March 19 2014 :  3:21:14 PM

I'm starting to think the reason why that RDC (So that's what they're called!) didn't work. It's probably because either one of the rubber bands fell out or they aren't the right type so they're too heavy for the loco.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

metalsmith1
Big Boy


REAAvatar

Status: offline

 Posted - March 19 2014 :  5:58:17 PM Link directly to this reply  Show Profile  Add metalsmith1 to Buddylist
Do they work ? yes. are they terrible? yes, be kind to yourself and convert over to an Ernst gear drive
 Country: USA  ~  Posts: 867  ~  Member Since: December 21 2013  ~  Last Visit: December 08 2016 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 19 2014 :  6:18:07 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
Do they work ? yes. are they terrible? yes, be kind to yourself and convert over to an Ernst gear drive

Originally posted by metalsmith1 - March 19 2014 :  5:58:17 PM

I just posted this in case I was to pick one up at the train shows because I see them at every one I go to.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

PRR 4800
Big Boy


MantuaShifterAvatar

Status: offline

 Posted - March 19 2014 :  9:08:22 PM Link directly to this reply  Show Profile  Add PRR 4800 to Buddylist
DON'T DO IT!!!!!! Those Hifi drives are a pain in the a**... I've had to scrape bits of scorched rubber band off of the axles of 2 different hifi F7's...

But if you do get one (and that's the only way you're going to get an RDC for cheap), I happen to have found a packet of NOS spare rubber bands yesterday that I can send ya.

--CRC
 Country: USA  ~  Posts: 930  ~  Member Since: January 25 2012  ~  Last Visit: August 23 2023 Alert Moderator  Go To Top Of Page

shaygetz
Big Boy


Status: offline

 Posted - March 19 2014 :  9:22:36 PM Link directly to this reply  Show Profile  Add shaygetz to Buddylist
You guys are harsh...without those bubber rand drives Irv put out, there'd be no HO...so there...
 Posts: 2465  ~  Member Since: April 15 2007  ~  Last Visit: December 01 2023 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 19 2014 :  10:20:35 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
You guys are harsh...without those bubber rand drives Irv put out, there'd be no HO...so there...

Originally posted by shaygetz - March 19 2014 :  9:22:36 PM

Wait, those rubber band drives are the reasons H0 exist as it is?

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."

Edited by - kovacste000 on March 19 2014 10:21:06 PM
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

metalsmith1
Big Boy


REAAvatar

Status: offline

 Posted - March 20 2014 :  04:32:55 AM Link directly to this reply  Show Profile  Add metalsmith1 to Buddylist
Sorry guys ... you are right. I was harsh fact is I have an appreciation for the inventiveness for all hobby manufacturers and the contribution that they have made to the hobby that I love. But to be honest, after the rubber bands dissolve on a Hi-F drive, an upgrade to a gear drive is very rewarding.
 Country: USA  ~  Posts: 867  ~  Member Since: December 21 2013  ~  Last Visit: December 08 2016 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - March 20 2014 :  05:10:00 AM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist

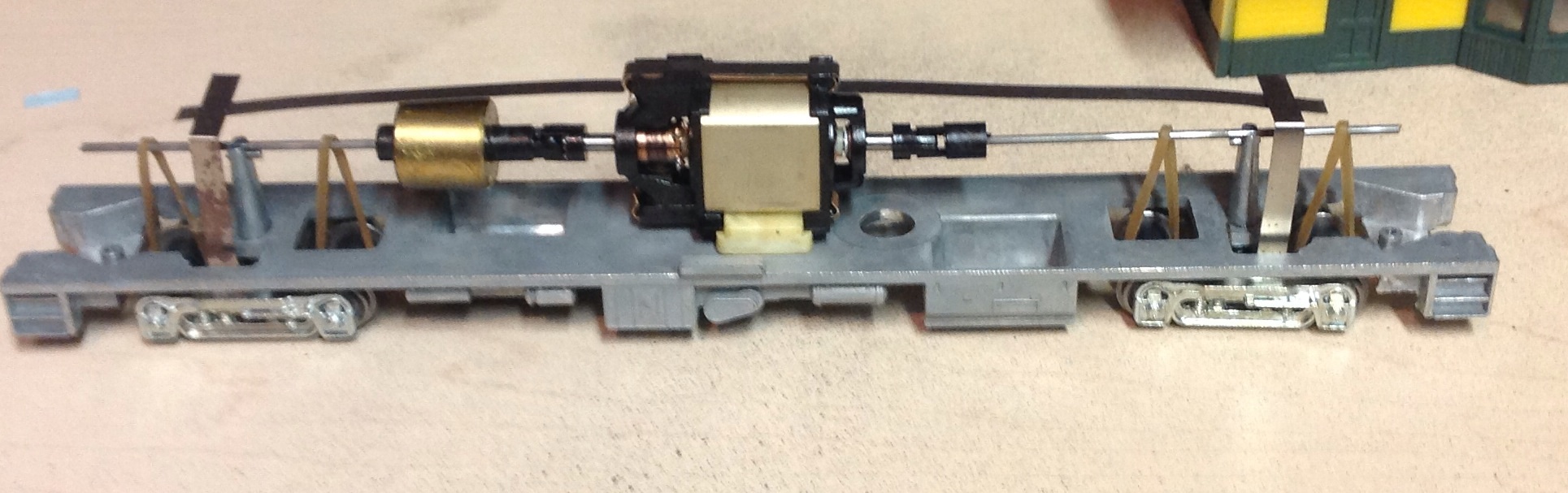

For the hundredth time, use these.

http://www.walmart.com/ip/Goody-Hair-Rubber-Bands-Clear-3-Different-Sizes/12018417

Are youse guys really that afraid of going into the hair care aisle? If you use rubber bands, you'll waste a lot of time scraping rubber goo off the shafts & axles when they melt.

These last forever. I've had these installed for about 5 years with no signs of deterioration. (It also helps to install a massive 24v low RPM motor. )

/tyco/forum/uploaded/NickelPlate759/20140320050149_DSCF1688-1024x625.JPG

They also make wicked traction tires.

The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

shaygetz
Big Boy


Status: offline

 Posted - March 20 2014 :  07:34:02 AM Link directly to this reply  Show Profile  Add shaygetz to Buddylist
quote:

Wait, those rubber band drives are the reasons H0 exist as it is?

Originally posted by kovacste000 - March 19 2014 :  10:20:35 PM

[/quote]

Irv made it affordable and accessible for the average Joe...up to that point, it was still a technical hobby where people built models from scratch, parts or difficult kits. Can you believe he even tried it on a Pacific...



 Posts: 2465  ~  Member Since: April 15 2007  ~  Last Visit: December 01 2023 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 20 2014 :  09:41:35 AM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
For the hundredth time, use these.

http://www.walmart.com/ip/Goody-Hair-Rubber-Bands-Clear-3-Different-Sizes/12018417

Are youse guys really that afraid of going into the hair care aisle? If you use rubber bands, you'll waste a lot of time scraping rubber goo off the shafts & axles when they melt.

These last forever. I've had these installed for about 5 years with no signs of deterioration. (It also helps to install a massive 24v low RPM motor. )

/tyco/forum/uploaded/NickelPlate759/20140320050149_DSCF1688-1024x625.JPG

They also make wicked traction tires.

Originally posted by NickelPlate759 - March 20 2014 :  05:10:00 AM

There is a Walmart being built in my hometown so I'll be able to grab those rubber bands there if I ever get a hold of one of those Hi-F drive engines.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

GG-1 Guy
Mikado


GG-1

Status: offline

 Posted - March 20 2014 :  10:07:17 AM Link directly to this reply  Show Profile  Add GG-1 Guy to Buddylist
I love them, the ones I have run great and they are fast as hell!!
 Country: USA  ~  Posts: 664  ~  Member Since: May 05 2012  ~  Last Visit: March 16 2023 Alert Moderator  Go To Top Of Page

SOU2645
Big Six

Status: offline

 Posted - March 20 2014 :  10:18:41 AM Link directly to this reply  Show Profile  Add SOU2645 to Buddylist
quote:
quote:
You guys are harsh...without those bubber rand drives Irv put out, there'd be no HO...so there...

Originally posted by shaygetz - March 19 2014 :  9:22:36 PM

Wait, those rubber band drives are the reasons H0 exist as it is?

Originally posted by kovacste000 - March 19 2014 :  10:20:35 PM



LOL Shay is exaggerating a bit. Irv was making HO by 1948-49 and his first powered kits were all metal RDC's launched about 1953 with a single gear drive mechanism (one power truck per car) with Pittman motors. I have a RDC1 with said drive. The Hi-F drive was introduced in 1957.
Larry
 Country: USA  ~  Posts: 251  ~  Member Since: May 04 2010  ~  Last Visit: April 22 2016 Alert Moderator  Go To Top Of Page

JRG1951
Big Boy


Old_Guy

Status: offline

 Posted - March 20 2014 :  10:21:19 AM Link directly to this reply  Show Profile  Send JRG1951 a Yahoo! Message  Add JRG1951 to Buddylist
Stephen,
The Rubber Band Drives make a great starting point for a dummy engine. If it is a B unit it can be draw-bar connected to an A unit and provide extra electrical pickup. It is a excellent way to provide space for a sound system decoder. It can be a dummy lighted unit. All you need to do is remove the drive train and find a way to keep the trucks from falling off.
Regards, John ******************

Men are not against you;
they are merely for themselves.
Gene Fowler

 Country: USA  ~  Posts: 886  ~  Member Since: January 11 2012  ~  Last Visit: December 16 2023 Alert Moderator  Go To Top Of Page

shaygetz
Big Boy


Status: offline

 Posted - March 20 2014 :  10:22:12 AM Link directly to this reply  Show Profile  Add shaygetz to Buddylist
quote:
quote:
quote:
You guys are harsh...without those bubber rand drives Irv put out, there'd be no HO...so there...

Originally posted by shaygetz - March 19 2014 :  9:22:36 PM

Wait, those rubber band drives are the reasons H0 exist as it is?

Originally posted by kovacste000 - March 19 2014 :  10:20:35 PM



LOL Shay is exaggerating a bit. Irv was making HO by 1948-49 and his first powered kits were all metal RDC's launched about 1953 with a single gear drive mechanism (one power truck per car) with Pittman motors. I have a RDC1 with said drive. The Hi-F drive was introduced in 1957.
Larry

Originally posted by SOU2645 - March 20 2014 :  10:18:41 AM



Exaggerate!!!! Never....overstate maybe, but never exaggerate....
 Posts: 2465  ~  Member Since: April 15 2007  ~  Last Visit: December 01 2023 Alert Moderator  Go To Top Of Page

SOU2645
Big Six

Status: offline

 Posted - March 20 2014 :  10:24:59 AM Link directly to this reply  Show Profile  Add SOU2645 to Buddylist
LOL Shay. thats true of all modelers and railfans usually. and they exaggerate too. LOL

Larry
 Country: USA  ~  Posts: 251  ~  Member Since: May 04 2010  ~  Last Visit: April 22 2016 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 20 2014 :  11:25:19 AM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
LOL Shay. thats true of all modelers and railfans usually. and they exaggerate too. LOL

Larry

Originally posted by SOU2645 - March 20 2014 :  10:24:59 AM

Tell me about it.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

AMC_Gremlin_GT
Big Boy



GremlinBL2

Status: offline

 Posted - March 20 2014 :  9:50:19 PM Link directly to this reply  Show Profile  Send AMC_Gremlin_GT an AOL message  Send AMC_Gremlin_GT a Yahoo! Message  Add AMC_Gremlin_GT to Buddylist
I prefer the Athearn Hustlers with Hi-F drive, they're easy to fix, and they run fast as hell. LOL! I just got one from my Train shop job, silver with red stripes, near mint but the bands had hardened up and stretched. I replaced them with the colored ones from a store. No problem!

Jerry

" When life throws you bananas...it's easy to slip up"
 Country: USA  ~  Posts: 3974  ~  Member Since: January 04 2009  ~  Last Visit: January 11 2019 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - March 20 2014 :  10:43:06 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
I prefer the Athearn Hustlers with Hi-F drive, they're easy to fix, and they run fast as hell. LOL! I just got one from my Train shop job, silver with red stripes, near mint but the bands had hardened up and stretched. I replaced them with the colored ones from a store. No problem!

Jerry

Originally posted by AMC_Gremlin_GT - March 20 2014 :  9:50:19 PM

I've seen those Hustlers before. One of them without rubber bands.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."

Edited by - kovacste000 on March 20 2014 10:43:18 PM
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

JNXT 7707
Big Boy


Status: offline

 Posted - March 20 2014 :  10:45:43 PM Link directly to this reply  Show Profile  Add JNXT 7707 to Buddylist
quote:
For the hundredth time, use these.

http://www.walmart.com/ip/Goody-Hair-Rubber-Bands-Clear-3-Different-Sizes/12018417

Are youse guys really that afraid of going into the hair care aisle? If you use rubber bands, you'll waste a lot of time scraping rubber goo off the shafts & axles when they melt.

These last forever. I've had these installed for about 5 years with no signs of deterioration. (It also helps to install a massive 24v low RPM motor. )

/tyco/forum/uploaded/NickelPlate759/20140320050149_DSCF1688-1024x625.JPG

They also make wicked traction tires.

Originally posted by NickelPlate759 - March 20 2014 :  05:10:00 AM



Nelson, can you elaborate on that motor? More info please!

http://tycodepot.com/
 Posts: 2451  ~  Member Since: April 11 2013  ~  Last Visit: June 26 2019 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - March 21 2014 :  12:03:24 AM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Jerry, they were sold by All Electronics 4 or 5 years ago, so I bought a few. Haven't seen anything like it since. I've seen some with the shaft on only one end, but never dual ended like this.

It's a Mabuchi RS-365SH. It makes it run at scale speeds, and amazingly the shaft sits at the same height as the rubber band shafting (the couplings are lengths of small silicone RC fuel line tubing). The motor's just mounted on a piece of servo tape. I wish I could point you towards an equivalent, but I haven't found one on the surplus sites.


EDIT: Just found some, but you have to take the worm and encoder wheel off. These came from large scanners, probably in copying machines. They move the scanning arm back and forth.

http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=271222941311


The Tyco Depot
Edited by - NickelPlate759 on March 21 2014 12:36:56 AM
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

JNXT 7707
Big Boy


Status: offline

 Posted - March 21 2014 :  08:21:32 AM Link directly to this reply  Show Profile  Add JNXT 7707 to Buddylist
THANKS Nelson!
http://tycodepot.com/
 Posts: 2451  ~  Member Since: April 11 2013  ~  Last Visit: June 26 2019 Alert Moderator  Go To Top Of Page

Autobus Prime
Hudson

Status: offline

 Posted - June 03 2014 :  1:11:22 PM Link directly to this reply  Show Profile  Add Autobus Prime to Buddylist
quote:


LOL Shay is exaggerating a bit. Irv was making HO by 1948-49 and his first powered kits were all metal RDC's launched about 1953 with a single gear drive mechanism (one power truck per car) with Pittman motors. I have a RDC1 with said drive. The Hi-F drive was introduced in 1957.
Larry

Originally posted by SOU2645 - March 20 2014 :  10:18:41 AM



S:

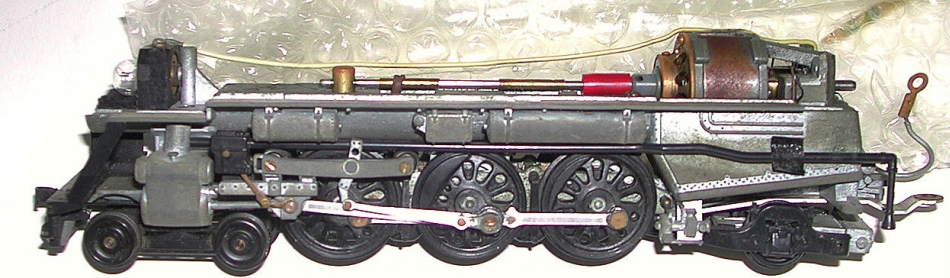

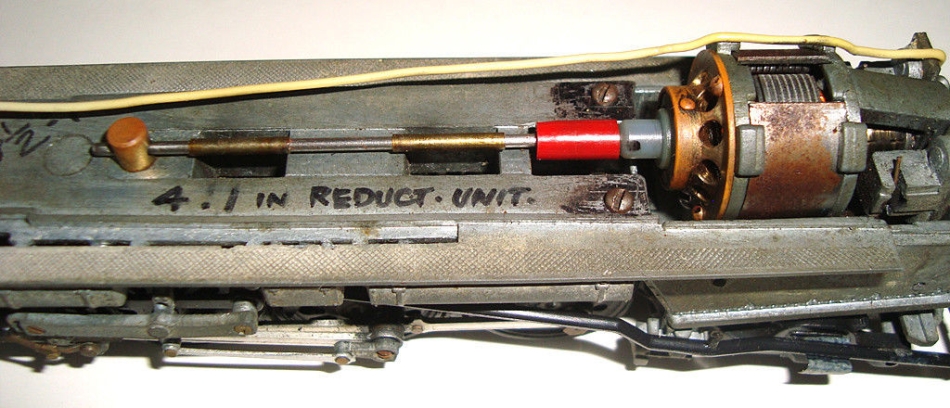

The story I've heard is that the rubber-band drive didn't exactly come from Athearn itself. It was one of their customers - a high school student, I think the story went. He'd brought a 4-unit diesel to their offices. At first Athearn was inclined to dismiss the crazy idea of a rubber-band drive...but brought it in and put it on a test track anyway. They were amazed to find out that it ran more smoothly and pulled better than their geared units. That's how the story went, and the rest is history...

I admit it's kind of hard to believe the parts about smoothness and pulling power relative to geared units...but I've also heard that Hi-F units run in multiple tended to run a lot more steadily than single units. I've never had multiple units to verify this statement with, though.

The Pacific, I'm told, didn't work very well at all. :P

 Country: USA  ~  Posts: 432  ~  Member Since: March 04 2008  ~  Last Visit: December 28 2018 Alert Moderator  Go To Top Of Page

PRR 4800
Big Boy


MantuaShifterAvatar

Status: offline

 Posted - June 03 2014 :  5:58:33 PM Link directly to this reply  Show Profile  Add PRR 4800 to Buddylist
quote:
Stephen,
The Rubber Band Drives make a great starting point for a dummy engine. If it is a B unit it can be draw-bar connected to an A unit and provide extra electrical pickup. It is a excellent way to provide space for a sound system decoder. It can be a dummy lighted unit. All you need to do is remove the drive train and find a way to keep the trucks from falling off.
Regards, John ******************

Men are not against you;
they are merely for themselves.
Gene Fowler



Originally posted by JRG1951 - March 20 2014 :  10:21:19 AM



Usually when I find a hi-fi drive it already functions just fine as a dummy. Just remove the motor so it doesn't make noise, the axles are already free-rolling anyways. (I suppose this means I have several f-unit frames that I never thought about using... oh no... what shall I build? )

--CRC
 Country: USA  ~  Posts: 930  ~  Member Since: January 25 2012  ~  Last Visit: August 23 2023 Alert Moderator  Go To Top Of Page

JNXT 7707
Big Boy


Status: offline

 Posted - June 03 2014 :  6:39:20 PM Link directly to this reply  Show Profile  Add JNXT 7707 to Buddylist
Funny but yes the rubber band drive chassis would be a natural for a dummy, why didn't I think of that? The newer BB dummys are generally horrible dummy units, very rare to find one that is free rolling.
One of these days I'm going to try that setup of Nelson's with an RDC.

http://tycodepot.com/
 Posts: 2451  ~  Member Since: April 11 2013  ~  Last Visit: June 26 2019 Alert Moderator  Go To Top Of Page

Adams
Big Boy


Status: offline

 Posted - June 03 2014 :  6:44:31 PM Link directly to this reply  Show Profile  Add Adams to Buddylist
Relating to the RDC mechanism above, I took an old Athearn flywheel, and affixed it to the shaft. It's still a rubber band drive, but much smoother and better slow speed.
 Country: USA  ~  Posts: 874  ~  Member Since: October 15 2007  ~  Last Visit: June 09 2019 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 03 2014 :  6:57:27 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
quote:


LOL Shay is exaggerating a bit. Irv was making HO by 1948-49 and his first powered kits were all metal RDC's launched about 1953 with a single gear drive mechanism (one power truck per car) with Pittman motors. I have a RDC1 with said drive. The Hi-F drive was introduced in 1957.
Larry

Originally posted by SOU2645 - March 20 2014 :  10:18:41 AM



S:
The story I've heard is that the rubber-band drive didn't exactly come from Athearn itself. It was one of their customers - a high school student, I think the story went. He'd brought a 4-unit diesel to their offices. At first Athearn was inclined to dismiss the crazy idea of a rubber-band drive...but brought it in and put it on a test track anyway. They were amazed to find out that it ran more smoothly and pulled better than their geared units. That's how the story went, and the rest is history...

I admit it's kind of hard to believe the parts about smoothness and pulling power relative to geared units...but I've also heard that Hi-F units run in multiple tended to run a lot more steadily than single units. I've never had multiple units to verify this statement with, though.

The Pacific, I'm told, didn't work very well at all. :P

Originally posted by Autobus Prime - June 03 2014 :  1:11:22 PM

I've heard that about the Pacific too. Every time I've seen one of them they have broken pistons.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

JNXT 7707
Big Boy


Status: offline

 Posted - June 03 2014 :  7:20:35 PM Link directly to this reply  Show Profile  Add JNXT 7707 to Buddylist
quote:
Relating to the RDC mechanism above, I took an old Athearn flywheel, and affixed it to the shaft. It's still a rubber band drive, but much smoother and better slow speed.

Originally posted by Adams - June 03 2014 :  6:44:31 PM



I like that setup - I think I even have all the parts for it....except the RDC

http://tycodepot.com/
 Posts: 2451  ~  Member Since: April 11 2013  ~  Last Visit: June 26 2019 Alert Moderator  Go To Top Of Page

metalsmith1
Big Boy


REAAvatar

Status: offline

 Posted - June 03 2014 :  8:39:41 PM Link directly to this reply  Show Profile  Add metalsmith1 to Buddylist
Having seen the results that you guys have been having with rubber band drives I have had to revaluate my previous opinion on these as an operational dead end. There is a shop here locally that has several of these for sale at good prices. I might have to pick one up next time I stop in.
 Country: USA  ~  Posts: 867  ~  Member Since: December 21 2013  ~  Last Visit: December 08 2016 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 04 2014 :  08:40:17 AM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
quote:
Relating to the RDC mechanism above, I took an old Athearn flywheel, and affixed it to the shaft. It's still a rubber band drive, but much smoother and better slow speed.

Originally posted by Adams - June 03 2014 :  6:44:31 PM



I like that setup - I think I even have all the parts for it....except the RDC

Originally posted by JNXT 7707 - June 03 2014 :  7:20:35 PM

I've actually seen an RDC at a train show with the Hi-F drive for $15 and it didn't work. It had rubber bands and everything yet it didn't make a sound when I put it on the tracks. I didn't get it for that reason alone.Also, I've seen an Athearn Hustler that didn't have rubber bands at all for like $5.I see these Hi-F drive trains at every train show I go to.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."

Edited by - kovacste000 on June 04 2014 08:42:36 AM
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

JRG1951
Big Boy


Old_Guy

Status: offline

 Posted - June 04 2014 :  10:17:42 AM Link directly to this reply  Show Profile  Send JRG1951 a Yahoo! Message  Add JRG1951 to Buddylist
Possible motors for HI-F re-power

Short shafts but Low RPM

1 motor http://www.ebay.com/itm/torque-12V-6100RPM-0-07A-Micro-DC-Motor-Dual-shaft-Carbon-Brush-intelligent-car-/371010005802?pt=LH_DefaultDomain_0&hash=item5661eb6b2a

2 motors http://www.ebay.com/itm/2PCS-New-12V-6100RPM-0-07A-Micro-DC-Motor-Dual-shaft-Carbon-Brush-model370-/331104361839?pt=Motors_Car_Truck_Parts_Accessories&hash=item4d175b9d6f&vxp=mtr

5 motors http://www.ebay.com/itm/5PC-12V-6100RPM-0-07A-Micro-DC-Motor-Dual-shaft-Carbon-Brush-for-intelligent-car-/371010005788?pt=LH_DefaultDomain_0&hash=item5661eb6b1c

Regards John ***********************

An appeaser is one who feeds a crocodile, hoping it will eat him last. <> Winston Churchill






 Country: USA  ~  Posts: 886  ~  Member Since: January 11 2012  ~  Last Visit: December 16 2023 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 04 2014 :  11:57:54 AM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
Possible motors for HI-F re-power

Short shafts but Low RPM

1 motor http://www.ebay.com/itm/torque-12V-6100RPM-0-07A-Micro-DC-Motor-Dual-shaft-Carbon-Brush-intelligent-car-/371010005802?pt=LH_DefaultDomain_0&hash=item5661eb6b2a

2 motors http://www.ebay.com/itm/2PCS-New-12V-6100RPM-0-07A-Micro-DC-Motor-Dual-shaft-Carbon-Brush-model370-/331104361839?pt=Motors_Car_Truck_Parts_Accessories&hash=item4d175b9d6f&vxp=mtr

5 motors http://www.ebay.com/itm/5PC-12V-6100RPM-0-07A-Micro-DC-Motor-Dual-shaft-Carbon-Brush-for-intelligent-car-/371010005788?pt=LH_DefaultDomain_0&hash=item5661eb6b1c

Regards John ***********************

An appeaser is one who feeds a crocodile, hoping it will eat him last. <> Winston Churchill








Originally posted by JRG1951 - June 04 2014 :  10:17:42 AM

Thanks for the links, JRG. I'll use them if I find that RDC or any others that don't work again.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

PRR 4800
Big Boy


MantuaShifterAvatar

Status: offline

 Posted - June 05 2014 :  11:27:11 PM Link directly to this reply  Show Profile  Add PRR 4800 to Buddylist
quote:
I've actually seen an RDC at a train show with the Hi-F drive for $15 and it didn't work. It had rubber bands and everything yet it didn't make a sound when I put it on the tracks. I didn't get it for that reason alone.Also, I've seen an Athearn Hustler that didn't have rubber bands at all for like $5.I see these Hi-F drive trains at every train show I go to.

Originally posted by kovacste000 - June 04 2014 :  08:40:17 AM



$5 is about the going rate for okay-condition Hustlers. I've never seen one at a show that actually had the rubber bands still on it and not brittle, and I have nine of them. I think the most I ever paid was $6 for one actually. Even got one in an original, first-year display box for all of 4 or 5 bucks. I've read of so many ways to repower these things six ways to sunday and I still haven't figured out which one I can afford and can actually /do/.

--CRC
Edited by - PRR 4800 on June 06 2014 6:19:48 PM
 Country: USA  ~  Posts: 930  ~  Member Since: January 25 2012  ~  Last Visit: August 23 2023 Alert Moderator  Go To Top Of Page

lvrr325
Big Boy


Status: offline

 Posted - June 10 2014 :  9:41:18 PM Link directly to this reply  Show Profile  Add lvrr325 to Buddylist
If I couldn't get $10 for a Hustler, I'd throw it in the air and shoot at it.
 Country: USA  ~  Posts: 956  ~  Member Since: January 27 2008  ~  Last Visit: May 27 2016 Alert Moderator  Go To Top Of Page

PRR 4800
Big Boy


MantuaShifterAvatar

Status: offline

 Posted - June 11 2014 :  5:03:28 PM Link directly to this reply  Show Profile  Add PRR 4800 to Buddylist
quote:
If I couldn't get $10 for a Hustler, I'd throw it in the air and shoot at it.

Originally posted by lvrr325 - June 10 2014 :  9:41:18 PM



Where on earth are you selling them then? I've had people try to give them away to me for nothing before because they think noone wants them... I got 2 variants of the black #57 for about $3 together, just out of pity since they would have been lost or thrown out if I didn't take them...

--CRC
 Country: USA  ~  Posts: 930  ~  Member Since: January 25 2012  ~  Last Visit: August 23 2023 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 11 2014 :  5:39:35 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
quote:
If I couldn't get $10 for a Hustler, I'd throw it in the air and shoot at it.

Originally posted by lvrr325 - June 10 2014 :  9:41:18 PM



Where on earth are you selling them then? I've had people try to give them away to me for nothing before because they think noone wants them... I got 2 variants of the black #57 for about $3 together, just out of pity since they would have been lost or thrown out if I didn't take them...

Originally posted by PRR 4800 - June 11 2014 :  5:03:28 PM

I feel the same way about stuff. Even if I don't want to use it, I still want it because it might otherwise be thrown away.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

lvrr325
Big Boy


Status: offline

 Posted - June 13 2014 :  8:29:11 PM Link directly to this reply  Show Profile  Add lvrr325 to Buddylist
Same place I sell everything, local shows, eBay - like I said if I can't get $10 out of it, then no one will get it.
 Country: USA  ~  Posts: 956  ~  Member Since: January 27 2008  ~  Last Visit: May 27 2016 Alert Moderator  Go To Top Of Page

jbsmith966
Big Six

Scooter, with a 75mm Recoiless Rifle !

Status: offline

 Posted - June 24 2014 :  9:09:52 PM Link directly to this reply  Show Profile  Add jbsmith966 to Buddylist
my two bits

1 -There is a Reason these kind of drives are no longer used.

2 -But if your heart is set one getting one for the novelty of it , or the Historical Value of
HO scale engineering tech , sentimental value, or something like that,,then by all means acquire one and enjoy running it !
 Country: USA  ~  Posts: 245  ~  Member Since: May 05 2010  ~  Last Visit: December 04 2016 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 25 2014 :  12:04:11 AM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
my two bits

1 -There is a Reason these kind of drives are no longer used.

2 -But if your heart is set one getting one for the novelty of it , or the Historical Value of
HO scale engineering tech , sentimental value, or something like that,,then by all means acquire one and enjoy running it !

Originally posted by jbsmith966 - June 24 2014 :  9:09:52 PM

The reason I want one is because of the first one and the second one you mentioned in your post. I just like older model trains because it's cool to see what the technology was like back when whatever train I see was made. I still like the newer ones though but for some reason, the older engines just have more charm strangely enough. Even if they don't work properly or don't work at all, older model trains can be quite fun getting to work again, and once you finally get it working or make it usable again, it gives you a sense of accomplishment to see whatever old model railroad item you fixed as good as it was when it was brand new or possibly even better.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - June 27 2014 :  9:46:08 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
This makes me wonder: does this make us model railroader hipsters, collecting everything old school HO (highly detailed, pricey RTR is so 5 minutes ago), the way hipsters collect Underwood typewriters and ironic fedoras?
The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 27 2014 :  10:10:48 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
This makes me wonder: does this make us model railroader hipsters, collecting everything old school HO (highly detailed, pricey RTR is so 5 minutes ago), the way hipsters collect Underwood typewriters and ironic fedoras?

Originally posted by NickelPlate759 - June 27 2014 :  9:46:08 PM

I wouldn't call us "US model railroad hipsters", I would call us model railroad collectors. Hipsters sound a little too, uh... punk.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - June 27 2014 :  10:41:00 PM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist


I collected rubber band drives before they were cool.

The Tyco Depot
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 28 2014 :  2:46:17 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
quote:


I collected rubber band drives before they were cool.

Originally posted by NickelPlate759 - June 27 2014 :  10:41:00 PM



Now Nelson, there you are! You very fashionable person. Very trendy. And ready to explore and expand the limits of true fashion. YEP ! You are a sight to behold.
frank

Originally posted by toptrain - June 28 2014 :  09:02:52 AM

I am at loss of words...

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

NickelPlate759
Big Boy



Rivarossi Logo

Status: offline

 Posted - June 29 2014 :  01:43:43 AM Link directly to this reply  Show Profile  Add NickelPlate759 to Buddylist
Dude, you're so bourgeois. Stop harshing on my threads.



The Tyco Depot
Edited by - NickelPlate759 on June 29 2014 01:47:29 AM
 Country: USA  ~  Posts: 3927  ~  Member Since: June 20 2007  ~  Last Visit: November 19 2015 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - June 29 2014 :  11:37:20 AM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:
Dude, you're so bourgeois. Stop harshing on my threads.




Originally posted by NickelPlate759 - June 29 2014 :  01:43:43 AM

So basically being a hipster is better than being homeless.

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

Chops124
Big Boy





Penn Central Logo

Status: offline

 Posted - August 19 2014 :  3:46:59 PM Link directly to this reply  Show Profile  Add Chops124 to Buddylist

I love this vintage piece. The rubber band drive has a little delayed "sproing"
action which carries it through circuit interuptions. The bands will dry out
and rot if not loosened when not in use, I have found. Here is a short video
clip of it in motion.
https://www.youtube.com/watch?v=ijmQjglqnmg
 Country: USA  ~  Posts: 11192  ~  Member Since: December 09 2013  ~  Last Visit: April 17 2024 Alert Moderator  Go To Top Of Page

scsshaggy
Big Boy


scsshaggy

Status: offline

 Posted - August 19 2014 :  5:59:07 PM Link directly to this reply  Show Profile  Add scsshaggy to Buddylist
quote:
The rubber band drive has a little delayed "sproing" action which carries it through circuit interuptions.
Originally posted by Chops124 - August 19 2014 :  3:46:59 PM


I can just hear the slack running in and out of the couplers as I watch the "spring action" lurching along. If you pull a caboose, make it a bay window; not so far for the conductor to fall."

Carpe Manana!
 Country: USA  ~  Posts: 2353  ~  Member Since: September 17 2013  ~  Last Visit: April 17 2024 Alert Moderator  Go To Top Of Page

kovacste000
Big Boy



Daylight 4449

Status: offline

 Posted - August 19 2014 :  6:04:45 PM Link directly to this reply  Show Profile  Add kovacste000 to Buddylist
quote:

I love this vintage piece. The rubber band drive has a little delayed "sproing"
action which carries it through circuit interuptions. The bands will dry out
and rot if not loosened when not in use, I have found. Here is a short video
clip of it in motion.
https://www.youtube.com/watch?v=ijmQjglqnmg

Originally posted by Chops124 - August 19 2014 :  3:46:59 PM

I know I may sound like an idiot here but, um, how do you loosen up the rubber bands?

-Steve

"A lot of modellers out there who go to these train shows see broken HO stuff and go, 'This is useless' when, in reality, they can still be used for modeling whether it's as a prop on your layout or a cool project to make something old new again."
 Country: USA  ~  Posts: 3533  ~  Member Since: February 17 2014  ~  Last Visit: January 11 2023 Alert Moderator  Go To Top Of Page

PRR 4800
Big Boy


MantuaShifterAvatar

Status: offline

 Posted - August 19 2014 :  7:12:29 PM Link directly to this reply  Show Profile  Add PRR 4800 to Buddylist
You people scare me. I'm already collecting HO antiques - the REAL antiques, 1940's cardboard side, those Tyco things are so last year - and if you look at me I'm halfway to hipster already.
--CRC
 Country: USA  ~  Posts: 930  ~  Member Since: January 25 2012  ~  Last Visit: August 23 2023 Alert Moderator  Go To Top Of Page
Page: of 2 Previous Topic: Athearn 25th Commerative Set Topic Next Topic: Ernst Gears and Hustlers
 Printer Friendly
Next Page
Jump To:
 Image Forums 2001 This page was generated in 0.53 seconds. Powered By: Snitz Forums 2000
