 Posted - March 14 2014 : 3:49:58 PM
|
Hi, I've come across an old Mehano RS-11 that runs great but I need some parts. I need 4 geared axle/wheel sets & the sideframe/ bottom covers for the trucks. A "new" old chassis plate with handrails would be nice too. I hope to rebuild this BN into a Norfolk Western. Lots of old Tyco/AHM so a trade may be possible. Thanks for any help. This is my first day here so "Nice to meet you".
Edited by - Hank Hobeau on March 14 2014 7:42:39 PM
|
Country:  USA ~
Posts: 36 ~
Member Since: March 14 2014 ~
Last Visit: April 02 2016
|
Alert Moderator
|
|
|
|
Posted - March 14 2014 : 6:30:26 PM
|
Welcome, Hank.
This the all wheel drive version, right? I have the wheelsets but nothing else. I have sideframe assy's that would fit, but they're Fairbanks Morse.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - March 14 2014 : 8:09:44 PM
|
Hi Nelson
I am 99% sure its all wheel drive. Looks like the axles would need very small gears on them to power each wheelset on both front & back. I could try to put up a photo. Been a while since I've attempted anything with trains (30+yrs). I would be interested in your wheelsets & sideframes. I'm not a purist in these matters. Motor sounds pretty good, want to see it run on my 4 foot track!quote: quote:Welcome, Hank.
This the all wheel drive version, right? I have the wheelsets but nothing else. I have sideframe assy's that would fit, but they're Fairbanks Morse.
Originally posted by NickelPlate759Â -Â March 14 2014Â :Â 6:30:26 PM
|
Originally posted by Hank Hobeau - March 14 2014 : 7:53:33 PM
|
|
|
Country: USA ~
Posts: 36 ~
Member Since: March 14 2014 ~
Last Visit: April 02 2016
|
Alert Moderator
|
|
|
|
Posted - March 14 2014 : 9:24:13 PM
|
quote:This is my first day here so "Nice to meet you".
Originally posted by Hank Hobeau - March 14 2014 : 3:49:58 PM
|
Nice to meet you too, Hank - welcome! You picked a good site
http://tycodepot.com/
|
|
|
|
|
Posted - March 15 2014 : 01:52:05 AM
|
Nelson,
Did Mehano make a 8 wheel drive FM C-Liner? I believed that all the FMs wee 4 Wheel drive.
Did most Mehano 4 wheel drive diesels have traction tires on one of the trucks?
I have seen this type of drive in several brands of Locomotives made by Mehano.
Hank is this the type of drive in your RS11?
/tyco/forum/uploaded/JRG1951/20140315011049_AlcoMehano.gif
A GP18 with this drive was imported by both Model Power and Mehano. Bachmann and Ahm also sold a Mehano GP18, but the early versions may have used a 4 wheel drive.
Here is a post on the GP18 8 wheel drive
http://www.tycoforums.com/tyco/forum/topic.asp?TOPIC_ID=11191&SearchTerms=mehano
Here is a post on the RS-3 [2] 4 wheel drive.
http://www.tycoforums.com/tyco/forum/topic.asp?TOPIC_ID=7136&SearchTerms=mehano
Your best bet may be a used complete unit.
Regards, John ******************
Just because your voice reaches halfway around the world doesn't mean you are wiser than when it reached only to the end of the bar. <> Edward R. Murrow
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - March 15 2014 : 12:28:25 PM
|
I'll try to post some photos of my RS-11. Maybe they will help you help me. What do I do after selecting 'insert image' on my reply? How did you post the diagrams? I also can't figure out the gallery part of my page. A nice "HELP" tab somewhere on this site would be greatly appreciated.
Edited by - Hank Hobeau on March 15 2014 1:20:09 PM
|
|
Country: USA ~
Posts: 36 ~
Member Since: March 14 2014 ~
Last Visit: April 02 2016
|
Alert Moderator
|
|
|
|
Posted - March 15 2014 : 1:54:09 PM
|
Hank,
On My windows PC.
I usually download my pictures to my computer. I then find the pictures and right click on the the picture and select edit. This will load the picture into Paint. I then reduce the picture to about 30% and then crop the picture. I then save as a GIF file and note the file name and location.
I then select Add Attachment in the editor and browse for my GIF picture. I then select my picture and then select Upload. Then after the upload add it to my post.
Hope this helps John
A lone amature built the ark! A large group of professionals built the titanic! <> Unknown
|
|
Country: USA ~
Posts: 886 ~
Member Since: January 11 2012 ~
Last Visit: December 16 2023
|
Alert Moderator
|
|
|
|
Posted - March 15 2014 : 7:20:59 PM
|
| My apology. I just realized I've had my forums mixed up. Please excuse me.
|
|
Country: USA ~
Posts: 36 ~
Member Since: March 14 2014 ~
Last Visit: April 02 2016
|
Alert Moderator
|
|
|
|
Posted - March 16 2014 : 12:38:24 AM
|
John,

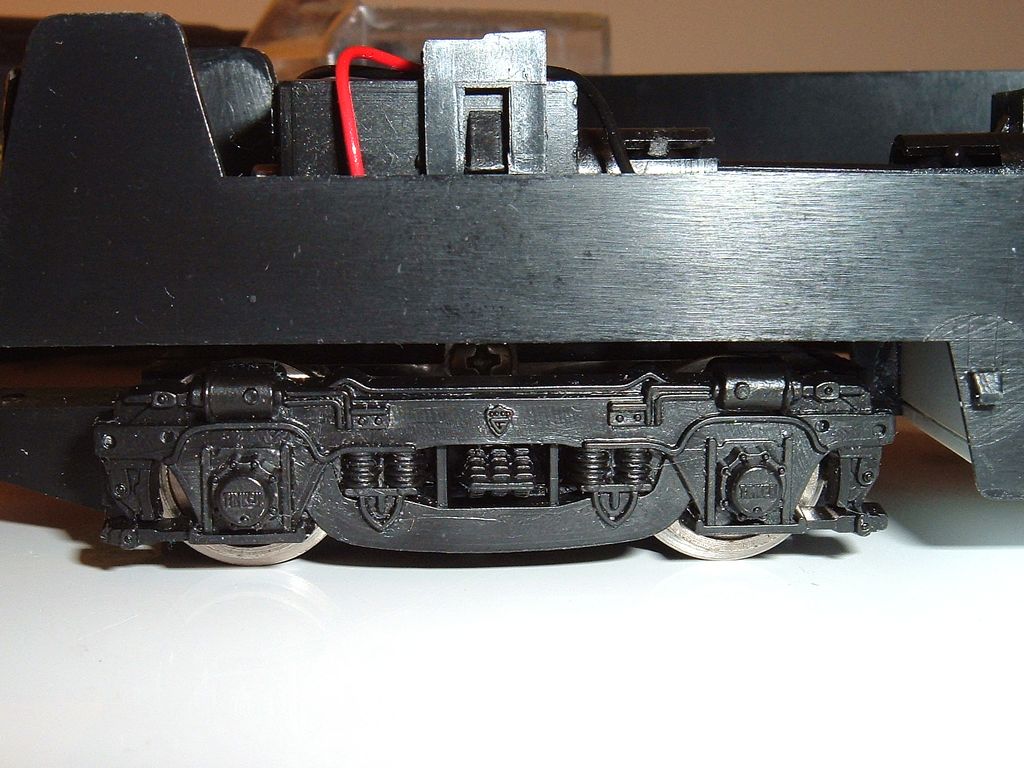

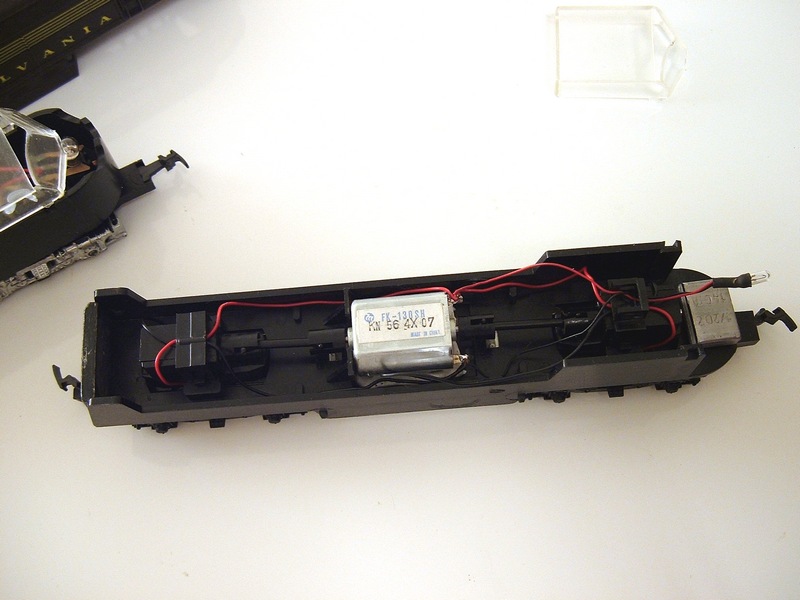

Yes, Mehano made an 8 wheel drive C-Liner for IHC. You usually see them in Corky's Carnival livery, lol. Here's some shots of a Pennsy unit I remotored, and the retooled FM sidefames, which are much nicer than the clunky oversized originals.
You can see one of the wipers I added screwed to the truck housing. I think they came from some old Bachmann trucks in my junk box.
The 8 wheel drive units don't rely on traction tires, only the units with one power truck did.
Hank, I checked my parts case, and I don't have enough of those wheelsets. You could what you need from a junker AHM GP18, which are very common. They would give you Blomberg sideframes as stand-ins until you find the proper Alco ones. You could also cut them off and graft on some other Alco frames from a donor loco.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
