 Posted - February 03 2014 : 6:04:55 PM
|
I have a Tyco GP 20 and a Tyco 430 I want to repower and just use the shells.
Where can I find information on where to find the complete powered chassis to use, so all I have to do is put the old shells on them.
Any help will be greately apprecited.
|
Country:  USA ~
Posts: 3 ~
Member Since: February 03 2014 ~
Last Visit: January 19 2024
|
Alert Moderator
|
|
|
|
Posted - February 03 2014 : 6:49:13 PM
|
Lew - if I understand your question correctly, I would look on ebay or a local train show/swap meet/flea market/etc. for a good running used one...or maybe someone here has some they would be willing to part with.
Or perhaps the ones you have just need some simple TLC? What is the problem with them, there are some great Tyco mechanics on this site!
http://tycodepot.com/
|
|
|
|
|
Posted - February 03 2014 : 9:59:57 PM
|
A 430 will nicely fit Bachmann's B23/30-7 with shell mods (interior of shell). The GP20 will fit a Athearn GP7 Blue Box frame with some coupler box mods. A member named Shaygetz retro-fitted a Tyco brown box era shell on an Athearn GP35 and a member by Alco-PRR used a B23-7 by Bachmann for the 430. Power Torques can re-powered with a CDROM motor. A perk with new chassis, DCC and sound can be added, code 83 rail used and better running/pulling/quiet running and plenty chassis parts from the mfg.'s/eBay. Don't use Athearn's Genisis as the high nose split frame chassis has no easy improvision for low nosed GP20's.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: April 25 2025
|
Alert Moderator
|
|
|
|
Posted - February 03 2014 : 10:07:30 PM
|
Lew, the GP 20 will drop onto Model Powers GP 20, the take overs from Mantua. I have done 2 of these "conversions", a Durango and a Chattanooga. I added DCC to both. I've picked up each Model Power off of eBay for around 20 bucks each, a little patience and a low price can be found.
Tom
|
|
Country: USA ~
Posts: 635 ~
Member Since: February 03 2008 ~
Last Visit: April 28 2025
|
Alert Moderator
|
|
|
|
Posted - February 03 2014 : 10:37:48 PM
|
I had no idea it'd work Eagle! What about the handrails and what shell mods did you do?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: April 25 2025
|
Alert Moderator
|
|
|
|
Posted - February 04 2014 : 07:51:20 AM
|
quote:I had no idea it'd work Eagle! What about the handrails and what shell mods did you do?
Originally posted by Redneck Justin - February 03 2014 : 10:37:48 PM
|
The original handrails work as is, I didnt have to modify the shell. I'll dig up a pic or find the link to the post here on the site.
On a side note I believe an old Tyco / Mantua shelll with a screw in weight would need to have the screw mounts removed.
http://www.tycoforums.com/tyco/forum/topic.asp?TOPIC_ID=10486&SearchTerms=gp,20
Edited by - eaglerock109 on February 04 2014 2:11:41 PM
|
|
Country: USA ~
Posts: 635 ~
Member Since: February 03 2008 ~
Last Visit: April 28 2025
|
Alert Moderator
|
|
|
Lew3
Switcher
Status:
offline
| |
Posted - February 04 2014 : 3:12:00 PM
|
quote:Lew - if I understand your question correctly, I would look on ebay or a local train show/swap meet/flea market/etc. for a good running used one...or maybe someone here has some they would be willing to part with.
Or perhaps the ones you have just need some simple TLC? What is the problem with them, there are some great Tyco mechanics on this site!
Originally posted by JNXT 7707Â -Â February 03 2014Â :Â 6:49:13 PM
|
Thanks to everyone for the quick replies and information. Will keep a look out on ebay and see what I can find. The motors for these two engines are completely shot and beyond repair. I have one that I am working on installing with a cd rom motor. Will let everyone know how it turns out. Once again, thanks for the info.
|
|
Country: USA ~
Posts: 3 ~
Member Since: February 03 2014 ~
Last Visit: January 19 2024
|
Alert Moderator
|
|
|
|
Posted - February 04 2014 : 11:48:54 PM
|
I posted a forum on using an Athearn SD-40 chassis in the C-430 but it does involve some work. A Geep-38 is an easy fit. Take a look at the Walthers low nose GP-9 as an option for the Tyco GP-20.
|
|
Country: USA ~
Posts: 867 ~
Member Since: December 21 2013 ~
Last Visit: December 08 2016
|
Alert Moderator
|
|
|
|
Posted - February 04 2014 : 11:50:56 PM
|

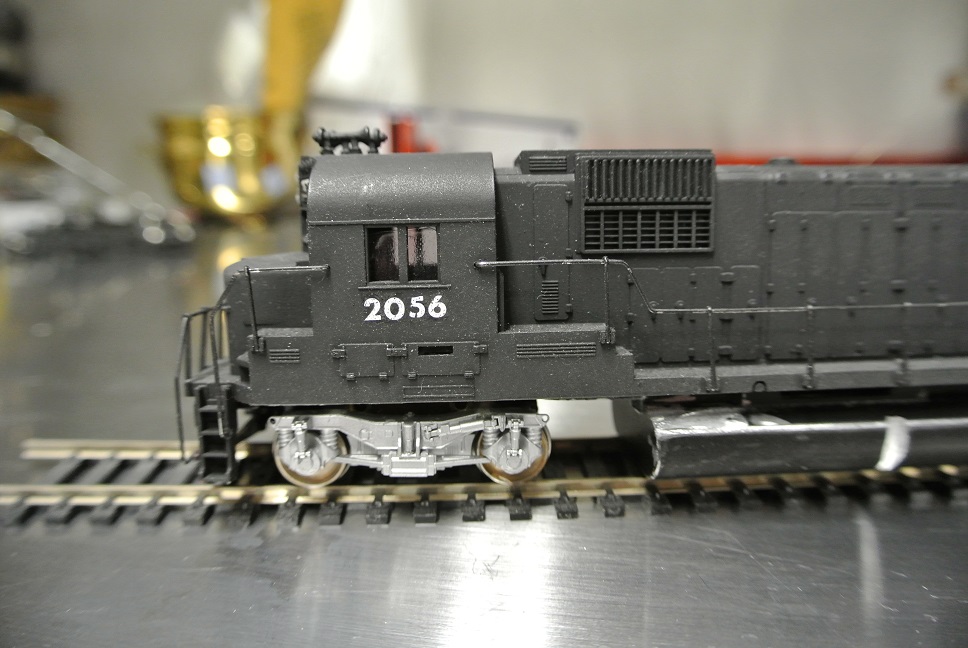

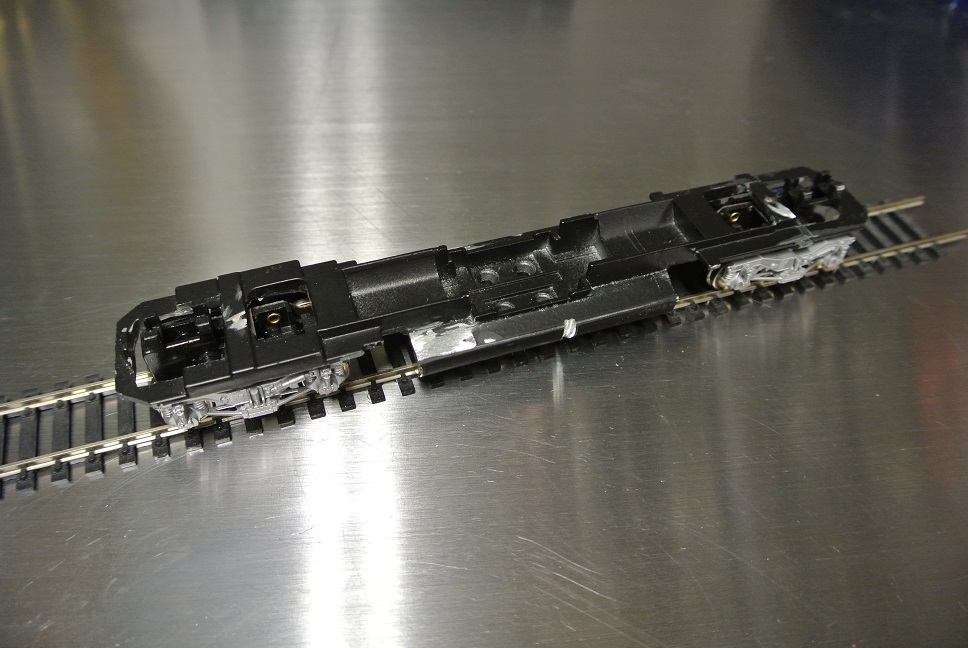

C-430 with Athearn SD-40 chassis converted for type B trucks
|
|
Country: USA ~
Posts: 867 ~
Member Since: December 21 2013 ~
Last Visit: December 08 2016
|
Alert Moderator
|
|
|
|
Posted - February 04 2014 : 11:53:51 PM
|

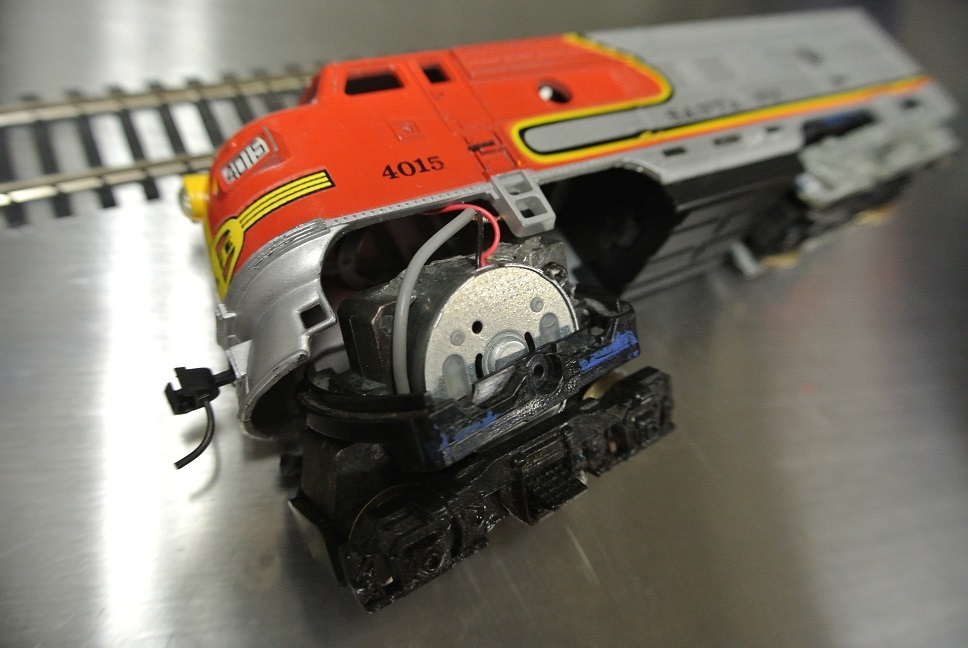

Here is an example of an electronics surplus motor installed in a powertorgue drive.
|
|
Country: USA ~
Posts: 867 ~
Member Since: December 21 2013 ~
Last Visit: December 08 2016
|
Alert Moderator
|
|
