 Posted - May 01 2013 : 11:37:21 PM
|
Does anyone have a Pittman DC60 or Pittman DC70 motor for sale? Need it for Varney Casey Jones steamer.
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: April 13 2026
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 07:01:41 AM
|
| I think I might...I'll look this evening...
|
|
|
|
|
Posted - May 02 2013 : 12:18:00 PM
|
As long as you know that the DC Pittman will NOT work where a plastic japanese motor was installed.
It will fit. It will bolt down. But the gears are totally different.
I can take a photo of each if you need to see the difference.
Dave
|
Country:  United Kingdom ~
Posts: 350 ~
Member Since: April 26 2013 ~
Last Visit: May 18 2024
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 3:31:47 PM
|
I may have a plastic end Japanese knock off, taken out of one I backdated with the fine gears and DC60. The plastic end was broken.
If yours is good, and you can solder to remove and re-install worm, I'll go looking for it.
Dave
|
|
Country: United Kingdom ~
Posts: 350 ~
Member Since: April 26 2013 ~
Last Visit: May 18 2024
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 4:13:26 PM
|

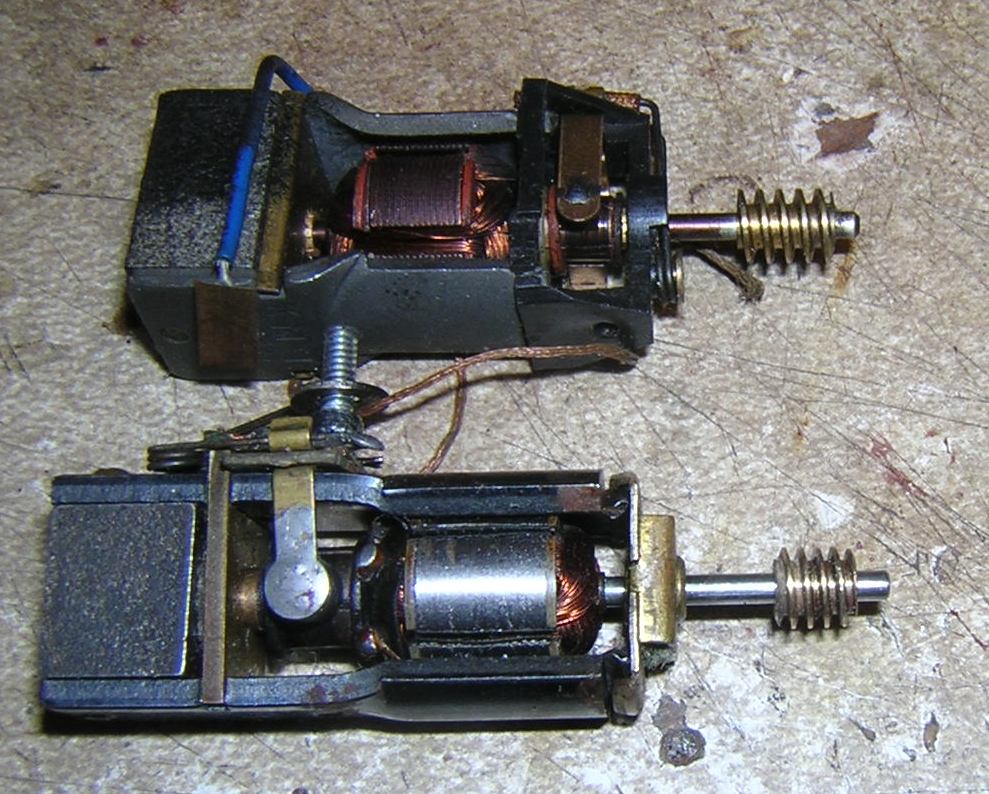

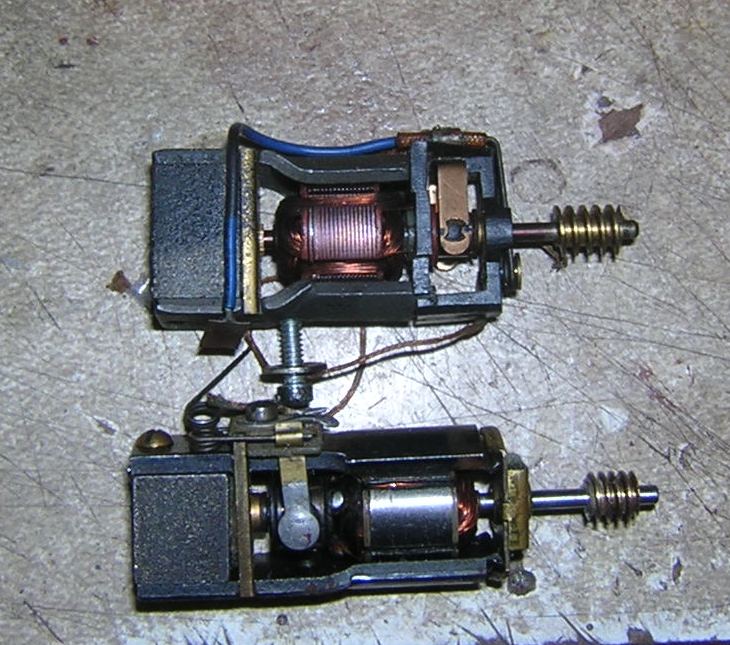

This should give you a graphic of the gearing. You can not mix gears. Period.
If you don't know how to change them, ask Dan to install proper gear before he sends you a motor.
Coarse worm on DC60 will work, last I checked. I think the shaft diameter is the same.
Dave
|
|
Country: United Kingdom ~
Posts: 350 ~
Member Since: April 26 2013 ~
Last Visit: May 18 2024
|
Alert Moderator
|
|
|
|
Posted - May 02 2013 : 8:10:52 PM
|
That DC60 is bad...well, the Varney F-3 spring belt drive armature was bad, so they got swapped. I keep this one for the one spare brush, brushplate, and magnet.
The Japanese knockoff is out of my latest 2-8-0 project.
I really, really like Varney locomotives.
Dave
|
|
Country: United Kingdom ~
Posts: 350 ~
Member Since: April 26 2013 ~
Last Visit: May 18 2024
|
Alert Moderator
|
|
