 Posted - February 25 2013 : 11:29:54 PM
|
I'm using 24 AWG wire for my latest project. I need to know where I can get terminal connectors or what size I can use for 24 guage wire? I also need know where to get a wire stripper?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 01 2026
|
Alert Moderator
|
|
|
|
Posted - February 25 2013 : 11:31:36 PM
|
Will this work?
http://www.micromark.com/wire-stripper-10-26,7728.html
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 01 2026
|
Alert Moderator
|
|
|
|
Posted - February 26 2013 : 1:13:08 PM
|
That automatic stripper may be a little rough on 24 gauge wire. About 10 years ago I bought a set of Craftsman strippers for 22 - 32 AWG that are the best I've had. They've been discontinued, but I did find them under the Klein name.
http://www.amazon.com/Klein-11057-Klein-Kurve-Stripper-Cutter/dp/B000XEUPMQ/ref=pd_sim_hi_1
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - February 26 2013 : 6:41:23 PM
|
The best kind of stripper for tiny wires like that are Hotweezers, but they can be expensive. Used units start around $60 on eBay. I've use them professionally to strip wire to 30 awg.
~ Dave
They're ALL toys
|
|
Country: USA ~
Posts: 547 ~
Member Since: December 25 2010 ~
Last Visit: May 20 2019
|
Alert Moderator
|
|
|
|
Posted - February 26 2013 : 11:11:37 PM
|
What about crimp on connectors?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 01 2026
|
Alert Moderator
|
|
|
|
Posted - February 26 2013 : 11:27:50 PM
|
Your average crimp connector is going to be too large for 24 gauge. Why not just solder them?
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - February 26 2013 : 11:47:07 PM
|
Too much trouble for my situation!
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 01 2026
|
Alert Moderator
|
|
|
|
Posted - February 27 2013 : 9:11:14 PM
|
quote:Your average crimp connector is going to be too large for 24 gauge. Why not just solder them?
Originally posted by NickelPlate759Â -Â February 26 2013Â :Â 11:27:50 PM
|

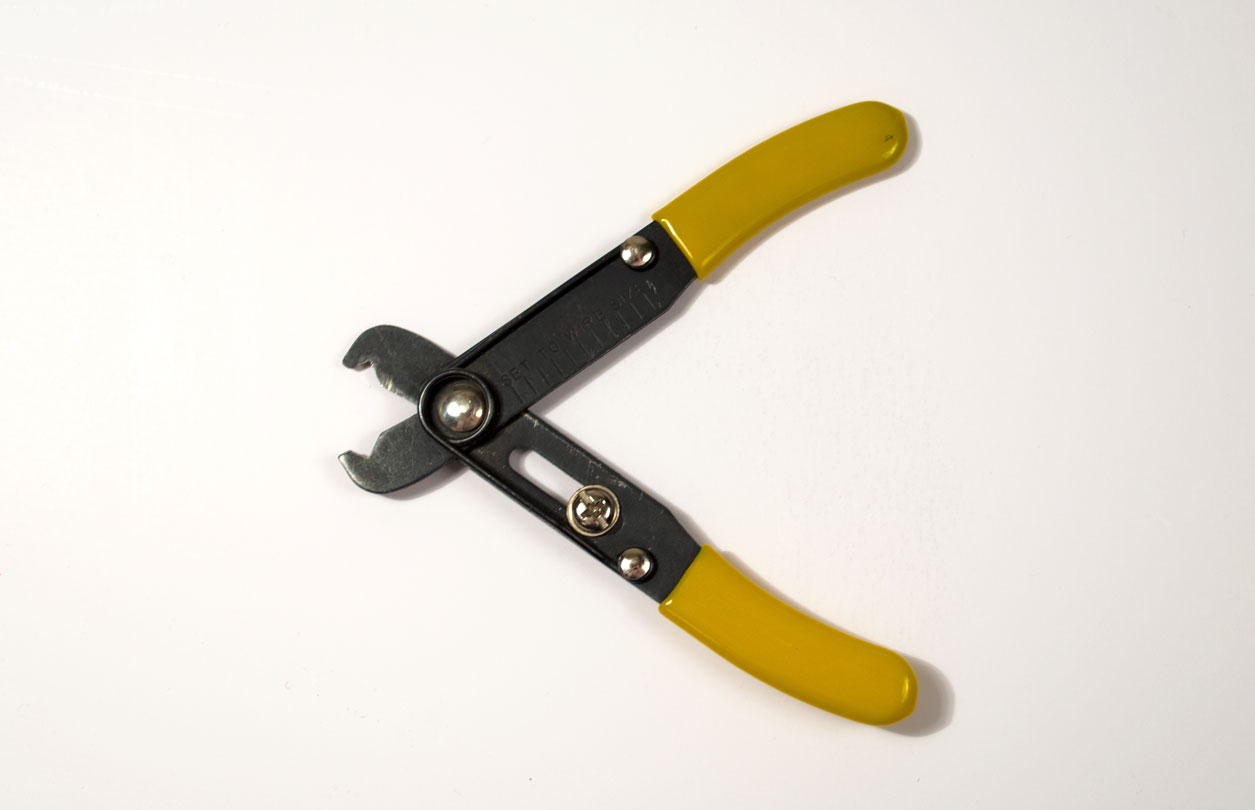

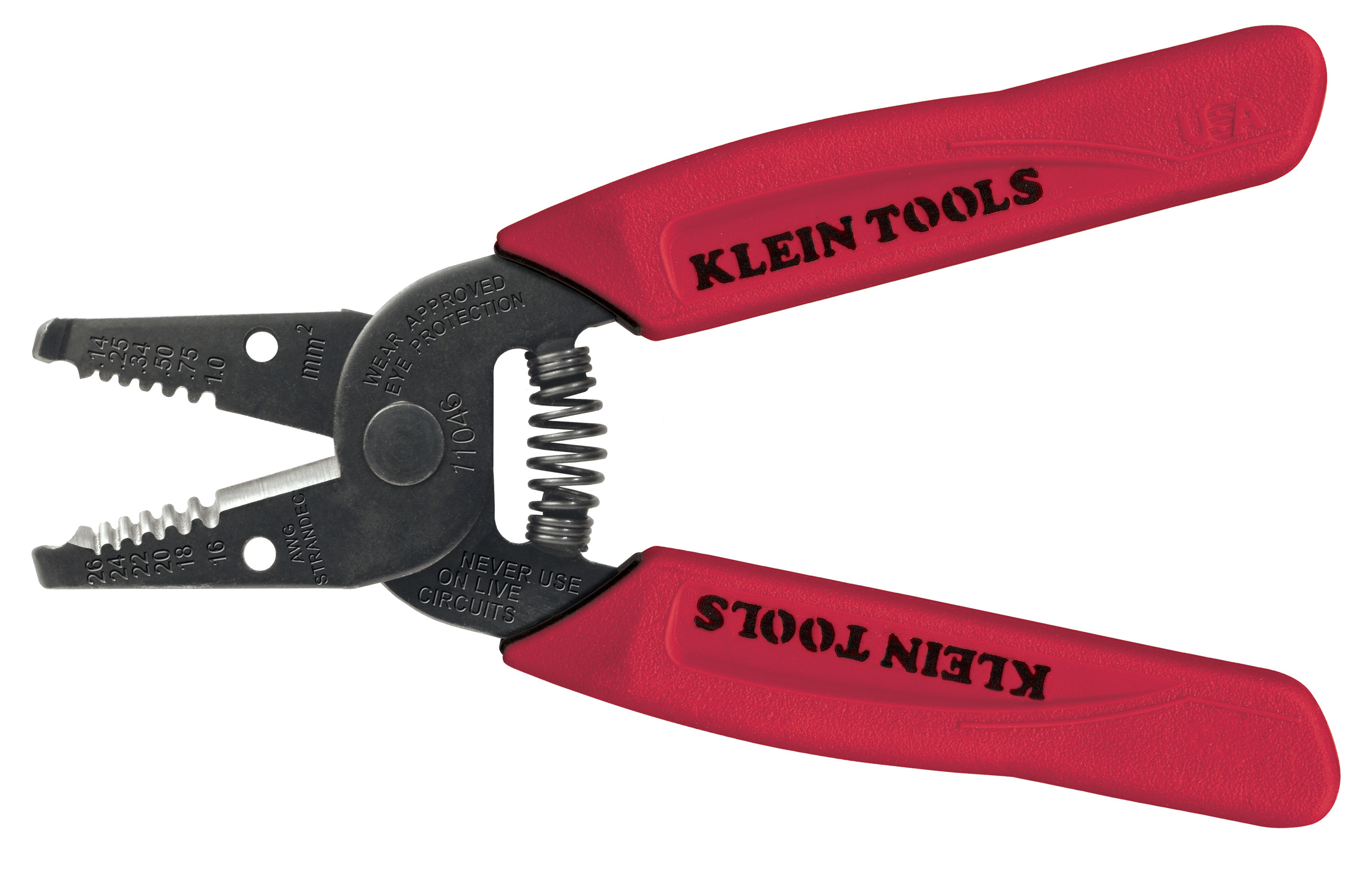

They do make smaller crimp connectors, but you have to buy them at specialty electronics shops, they just don't sell them in regular stores usually. Radio shack will probably have a decent selection of strippers. Lowes or Home Depot also have some. Here's a couple of pics, the cheapo version you really don't want, the nicer red handled one is the intermediate stripper that would be best for hobbyists in my opinion.
The automatic strippers are great, but expensive, this Klein type is one of the best of it's type. YOu can get them in different gauge sizes, like 10 to 18, or 20 to 32, etc. Not sure of the cost, but these will last you a lifetime if you aren't a "daily stripper".
Jerry
" When life throws you bananas...it's easy to slip up"
|
|
Country: USA ~
Posts: 3974 ~
Member Since: January 04 2009 ~
Last Visit: January 11 2019
|
Alert Moderator
|
|
|
|
Posted - February 28 2013 : 06:00:23 AM
|
quote:
They do make smaller crimp connectors, but you have to buy them at specialty electronics shops, they just don't sell them in regular stores usually.
Originally posted by AMC_Gremlin_GTÂ -Â February 27 2013Â :Â 9:11:14 PM
|
Exactly. I was thinking of what's commonly available. I'm lucky enough to still have a real electronics store a few miles from me. I keep forgetting to ask them for those strips of mini male/female connectors you can cut a few conductors from to use as quick disconnects for LED's, etc. mounted inside the shell.
Those strippers I bought are one of the best tool investments I've made. Obviously they were Kleins rebranded with the Craftsman name. I was really surprised to find that Sears carried a pair of strippers for such fine gauges.
The Tyco Depot
Edited by - NickelPlate759 on February 28 2013 06:02:23 AM
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - February 28 2013 : 12:44:00 PM
|
Would radio shack have them?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
|
Country: USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 01 2026
|
Alert Moderator
|
|
|
|
Posted - February 28 2013 : 4:55:40 PM
|
Here's their list of wire strippers.
http://www.radioshack.com/family/index.jsp?categoryId=2032310&sr=1&origkw=wire%20strippers
They have a gauged pair, but they don't give the gauge range. The basic adjustable ones will work, too.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - March 01 2013 : 07:05:49 AM
|
Justin:

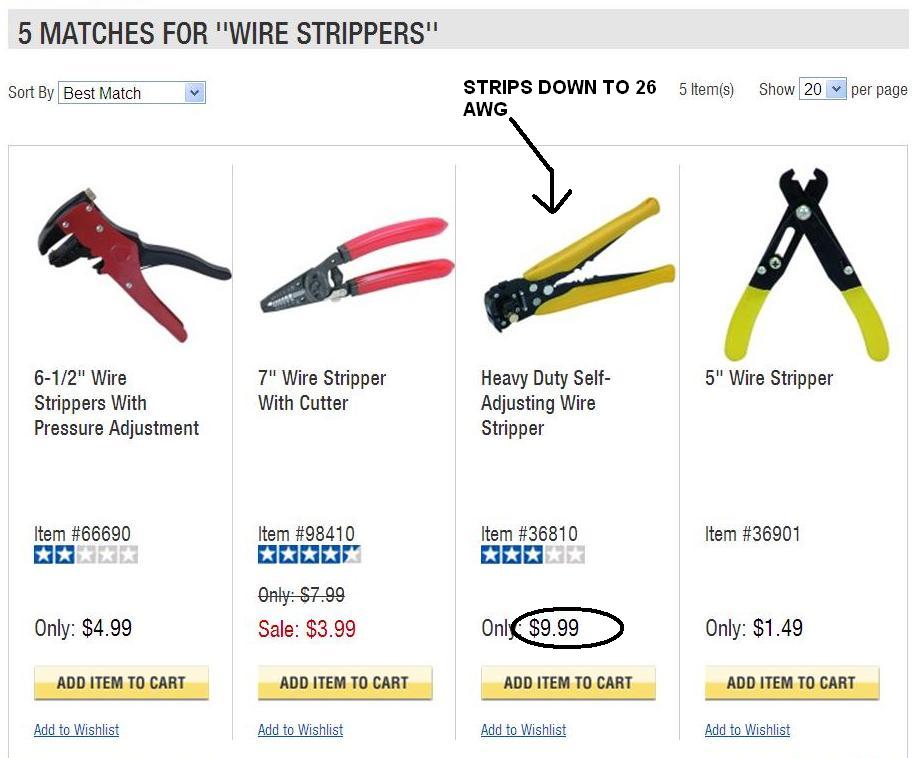

I use this tool- from Harbor Freight at the displayed price- for regular wire stripping, down to 26 AWG, which is sufficient for diesel underhood work where there is sufficient room:
I really can't see spending a bunch of money for a hand tool like this. Maybe the online electronics websites have less expensive fancier ones or tools that handle extremely small AWGs.
When I recently posted about using computer connector wires- 28 and 30/32 AWG, I rely on a more primitive method- my teeth! Not kidding! I tried carefully using an xacto blade and a single-edged razor blade on those really small ones, but I kept cutting into the stranded wire inside the insulation.
Hope this info helps.
Siouxlake/Ron
|
|
Country: USA ~
Posts: 510 ~
Member Since: September 21 2011 ~
Last Visit: December 21 2014
|
Alert Moderator
|
|
|
|
Posted - March 01 2013 : 11:36:45 AM
|
Justin,
These will work GOOD! And they are Cheap!
http://www.jameco.com/webapp/wcs/stores/servlet/Product_10001_10001_127862_-1
Regards,
John
|
|
