 Posted - October 27 2012 : 11:01:38 PM
|
Anybody here into HOn30 or ever do a HOn30 conversion?
" Heck with counting 'em rivets, TRAINS ARE FOR FUN! Not called the Mad Scientist for nothing either!"
|
Country:  USA ~
Posts: 3147 ~
Member Since: May 07 2007 ~
Last Visit: June 01 2026
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 12:09:46 AM
|
I am an armchair modeler so far, and own nothing in HOn30, but I can tell you lots about the subject from all I've researched.
For all ya that may never heard of it, it's 30" (2.5 foot) HO scale (1:87) that runs on standard gauge N-scale track (close enough to 2.5' HO). If you have access to lots of inexpensive N stuff, a hack saw, and imagination, you can build anything.
AHM had the start but their locomotives are blenders, Roco has decent but pricey/rarer equipment that's distictively European, and Con-Cor markets reruns of retooled AHM sets.
Also known as HOe, hoe, HOE, HO2 1/2.
|
|
Country: USA ~
Posts: 182 ~
Member Since: April 30 2011 ~
Last Visit: March 04 2023
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 12:32:33 AM
|

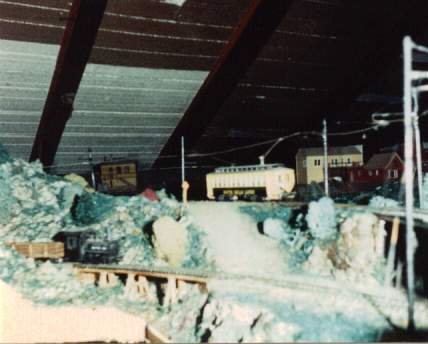

I used to have an HOn30 line on one of my earlier layouts.

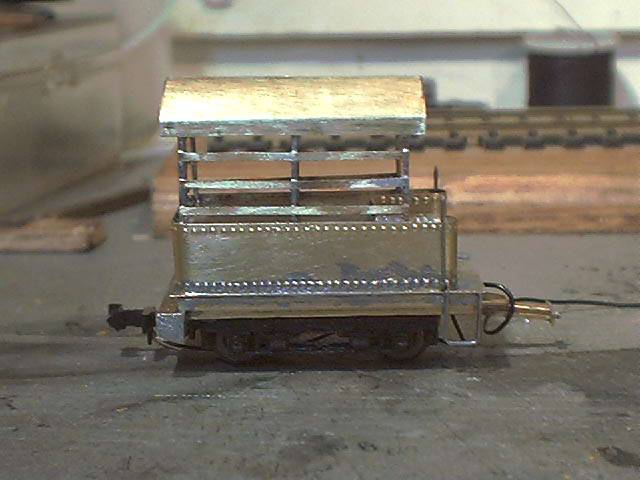

The cars were all scratch built and the loco was a kitbashed Bachmann 0-4-0T

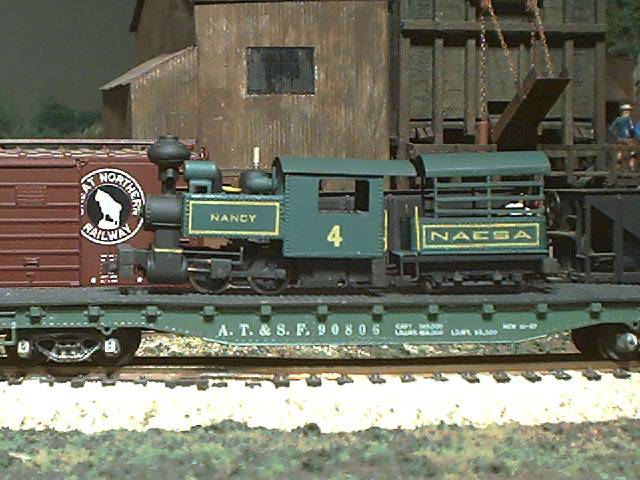

I also built another HOn30 locomotive for a friend for his sugar cane railroad.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 02:01:29 AM
|
That is really cool, Ray. How is it powered? Other than the wires I can't see any sign of a motor or gearing.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 02:33:38 AM
|

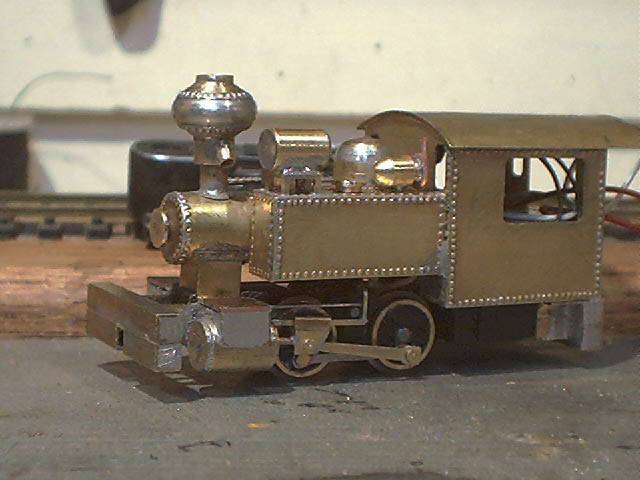

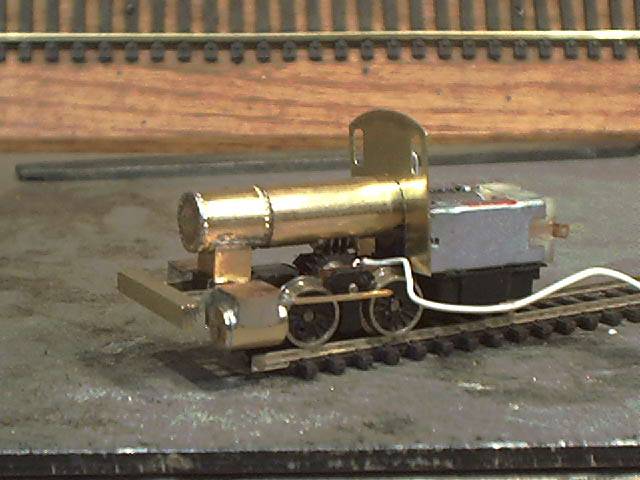

It has a small rectangular motor in the cab. The chassis is from a Bachmann N scale Dockside. Almost everything else was made of brass.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 02:39:11 AM
|

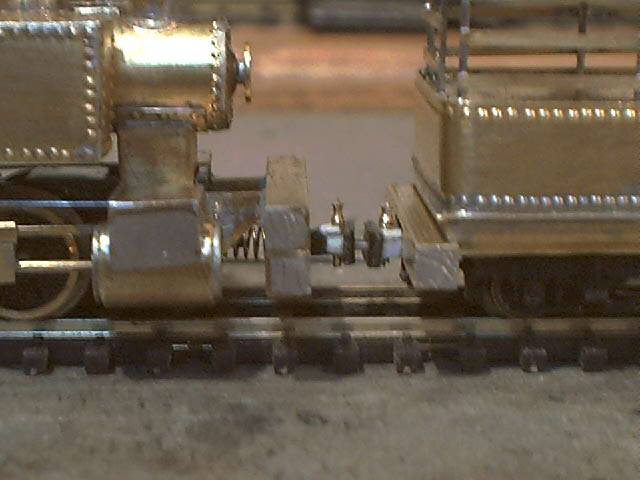

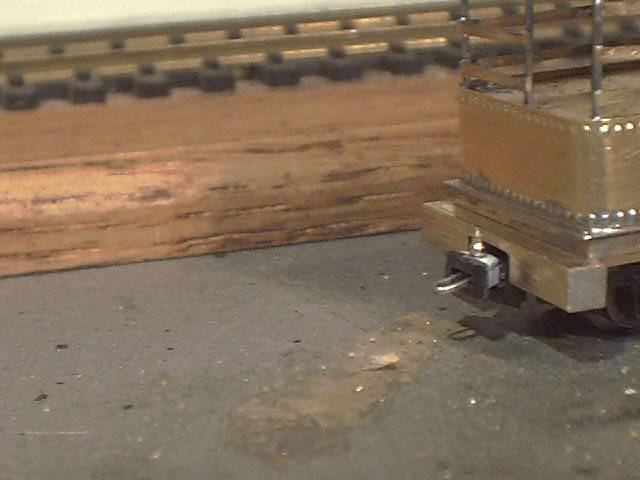

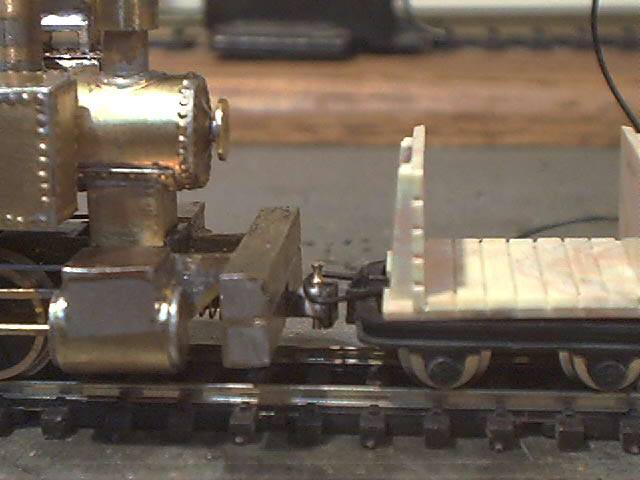

It even had operating link and pin couplers.
Ray
Edited by - Ray Marinaccio on October 29 2012 02:41:59 AM
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 03:41:54 AM
|
Are those link and pin couplers available commercially or are they scratchbuilt? Either way they're really cool!
Glenn
Glenn
I was thinking of the immortal words of Socrates, who said, "... I drank what?"
|
|
Country: USA ~
Posts: 1709 ~
Member Since: December 13 2008 ~
Last Visit: May 10 2026
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 09:42:48 AM
|
I am thinking about making a few HOn30 pieces. I like kitbashing and narrow gauge stuff doesn't have to follow any established pattern. I was told that an N scale 0-6-0 steam engine makes a decent basis for a locomotive.
Use an HO scale cab, enlarge the walkway, HO size headlight, and move or delete the handrails? Not really sure. Haven't looked at any locos, yet. N scale track is cheaper than HOn3 stuff and easier to find.
Unspoken expectations are premeditated failures.
|
|
Country: USA ~
Posts: 825 ~
Member Since: December 22 2008 ~
Last Visit: March 16 2015
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 10:19:28 AM
|
I've done some...an Atlas 0-6-0 mech and an N scale passenger car truck started these...
...This was built onto a Model Power mech, not recommended as it doesn't run very well...
...and this was built onto an Atlas U boat and ran for 6 hours straight its first run at a local train show...
|
|
|
|
|
Posted - October 29 2012 : 12:34:31 PM
|
quote:Are those link and pin couplers available commercially or are they scratchbuilt? Either way they're really cool!
Glenn
Originally posted by gmoney - October 29 2012 : 03:41:54 AM
|
Those link and pin couplers were built by modifying N scale Rapido couplers.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 1:00:31 PM
|
| Great stuff guys! I'm liking the pictures
|
Country:  Canada ~
Posts: 3448 ~
Member Since: September 22 2006 ~
Last Visit: April 03 2026
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 5:31:50 PM
|
[
Originally posted by Ray Marinaccio - October 29 2012 : 12:32:33 AM
[/quote]
I really like this locomotive. Painted well, great color scheme, looks appropriate for the job. There's just one thing I'm not a fan of; that cab looks like it would make the rear of the locomotive rear-heavy. A lot of narrow gauge/ tank engine locomotives have that because of real-world weight distribution (cabs are light) but that just looks odd to me. As a model with the motor back there, wouldn't there be a balance problem?
|
|
Country: USA ~
Posts: 182 ~
Member Since: April 30 2011 ~
Last Visit: March 04 2023
|
Alert Moderator
|
|
|
|
Posted - October 29 2012 : 6:06:56 PM
|
quote:
As a model with the motor back there, wouldn't there be a balance problem?
Originally posted by Islanderh93Â -Â October 29 2012Â :Â 5:31:50 PM
|
There is alot of brass and solder ahead of the drive wheels and the side tanks are filled with lead. It is heavier than it looks.
Ray
Edited by - Ray Marinaccio on October 29 2012 6:07:43 PM
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - November 06 2012 : 12:30:15 AM
|
Ray,
I remember now seeing that loco on the 2 Guys forum. That motor is perfect for the cab. Didn't recognize it painted.
Shay, awesome stuff. The 0-6-0's a hoot.
The Tyco Depot
|
|
Country: USA ~
Posts: 3927 ~
Member Since: June 20 2007 ~
Last Visit: November 19 2015
|
Alert Moderator
|
|
|
|
Posted - November 06 2012 : 12:33:42 AM
|
Can I ask what NAESA means?
if you remove the E its NASA!
|
|
Country: USA ~
Posts: 15028 ~
Member Since: February 23 2009 ~
Last Visit: June 07 2026
|
Alert Moderator
|
|
|
|
Posted - November 06 2012 : 12:45:28 AM
|
quote:Can I ask what NAESA means?
if you remove the E its NASA!
Originally posted by microbusss - November 06 2012 : 12:33:42 AM
|
That is the name of his sugar cane railway.
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - November 06 2012 : 09:45:16 AM
|
which is?
|
|
Country: USA ~
Posts: 15028 ~
Member Since: February 23 2009 ~
Last Visit: June 07 2026
|
Alert Moderator
|
|
|
|
Posted - November 06 2012 : 11:05:15 AM
|
quote:which is?
Originally posted by microbusss - November 06 2012 : 09:45:16 AM
|
Ray
|
|
Country: USA ~
Posts: 1285 ~
Member Since: December 14 2005 ~
Last Visit: May 16 2019
|
Alert Moderator
|
|
|
|
Posted - November 06 2012 : 11:25:16 AM
|
| what does NAESA mean?
|
|
Country: USA ~
Posts: 15028 ~
Member Since: February 23 2009 ~
Last Visit: June 07 2026
|
Alert Moderator
|
|
